Page 1

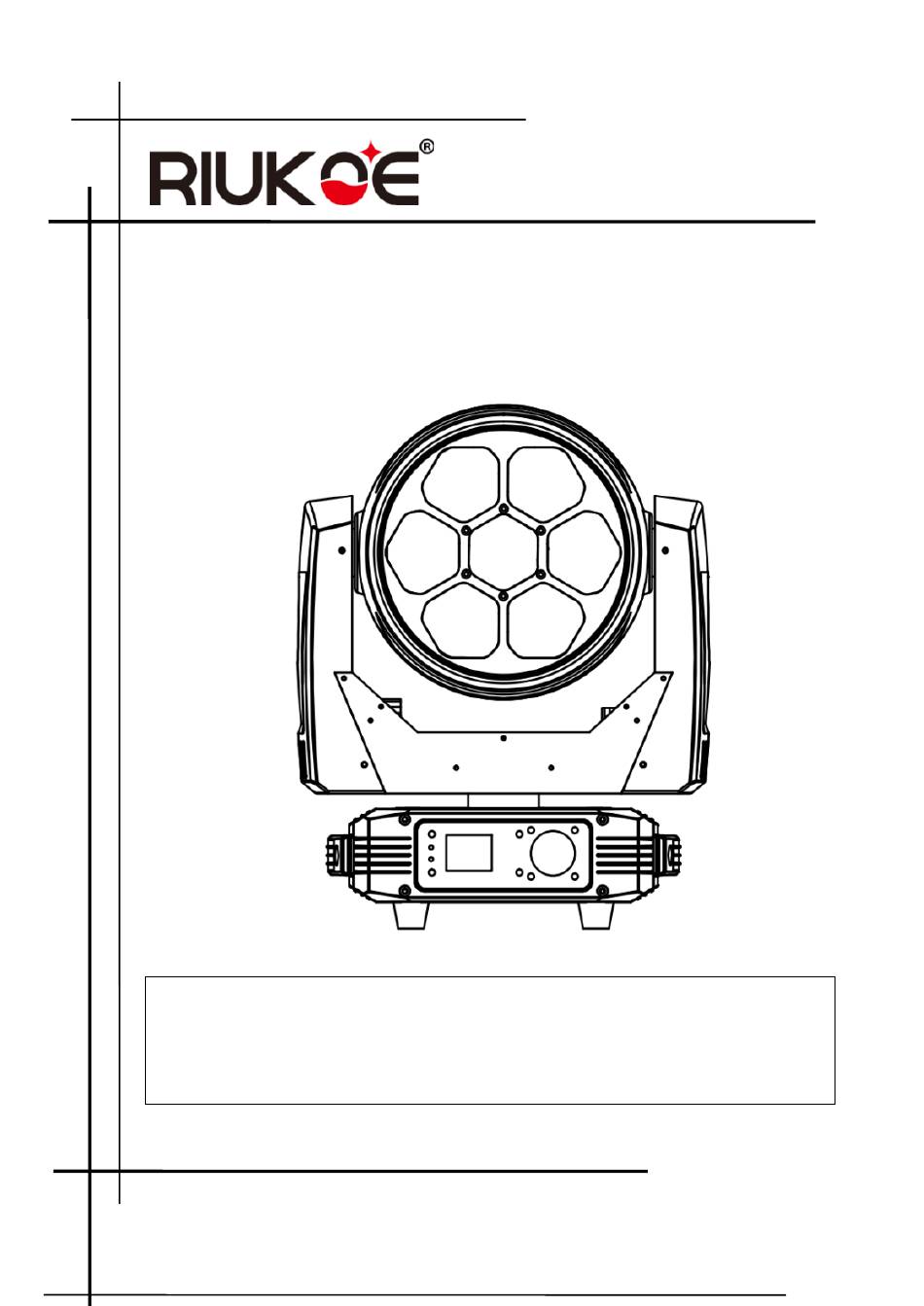

7x40W LED Mini Bee Eye Moving Head (ML-WZB740) This product manual contains important information about the safe installation and use of this projector. Please read and follow these instructions carefully and keep this manual in a safe place for future reference.
1.STATEMENT product well capability intact packing when leave factory. All of the user should comply with warning item and manual, any misuse cause of the damages are not included in our guarantee, and also cannot be responsible for any malfunction & problem owing to ignore the manual.
Review the following safety precautions carefully before installing or operating the fixture. This fixture must be installed in accordance with the applicable installation code by a person familiar with the construction and operation of the fixture and the hazards involved. Preventing electric shock WARNING! Risk of electric shock.
Avoid personal injury WARNING! Take measure to prevent personal injury. Do not look directly at the light source from close range. ⚫ Take precautions to prevent injury due to falls when working at height. ⚫ For permanent installation, ensure that the fixture is securely fastened to ⚫...
mounting this fixture to truss be sure to sere to secure an appropriately rated clamp to the included Omega Bracket using a M10 screw fitted through the center hole of the ‘omega bracket’. As an added safety measure be sure to attached at least one properly rated Safety Cable to the fixture using one of the safety cable rigging point integrated in the base assembly.
DMX-512 connection with DMX terminator: For installations where the DMX cable has to run a long distance or is in an electrically noisy environment, such as in a discotheque, it is recommended to use a DMX terminator. This helps in preventing corruption of the digital control signal by electrical noise. The DMX terminator is simply an XLR plug with a 120 resistor connected between pins 2 and 3,which is then plugged into the output XLR socket of the last fixture in the chain.
functions without any change press the MENU button again. Press and hold the MENU button about one second or wait for about one minute to exit the menu mode. Please refer to the following diagram to address your DMX512 channel for the first 4 units: CHs Mode Unit 1 Adds Unit 2 Adds...
Page 9
Movement - Pan/ Tile: 540°/240° 16bit Dimmer/Strobe - Dimming level: 0-100% perfect linear dimming system - Strobe: 1-25 times/second IP Rated - IP20, indoor only Weigh & Size - N.W:11.5KG - G.W.:14KG Please Note: Specifications and improvements in the design of this unit and this manual are subject to change without any prior written notice.
7.HOW TO SET THE UNIT To select any of the given functions, press the MENU button up to where the required function is showing on the display. Select the function by pressing the ENTER button and the display will blink. Use the DOWN and UP buttons to change the mode.
Page 11
Information Time Current Time xxxh Total Time xxxh Power Count Sensor OK/NG Tilt OK/NG Zoom OK/NG Temp OK/NG OK/NG Temperature Head Temp ℃ Fan Speed xxxx RPM Software Version Panel Vx.xxx Motor Vx.xxx Home Set Password 000-255 000-255 Tilt 000-255 Zoom 000-255 000-255...
8.CHANNEL DESCRIPTION 23 Channels Mode Function Value Description 0-255 0-540 degree X fine 0-255 16 bit 0-255 0-205 degree Y fine 0-255 16 bit XY speed 0-255 Fast-slow zoom 0-255 Angle from small-big 0-127 0~60 degree rotating 128-191 Antiwise fast-slow 200-255 Forward slow-fast dimmer...
Page 13
speed 128-255 Reverse from slow-fast Background R 0-255 Dark-bright Background G 0-255 Dark-bright Background B 0-255 Dark-bright Background W 0-255 Dark-bright 0-199 invalid reset 200-205 Reset after 5 seconds 206-255 invalid 35 Channels Mode Function Value Description 0-255 Red dimmer Red fine 0-255 Red dimmer fine...
Page 14
252-255 dimmer 0-255 Linear dimmer from dark-bright Dimmer fine 0-255 Dimmer fine 0-255 Pan fine 0-255 Pan fine tilt 0-255 tilt Tilt fine 0-255 Tilt fine function 0-255 0-199 invalid reset 200-205 Reset after 5 seconds 206-255 invalid zoom 0-255 zoom 0-127 0~60 degree...
Page 15
Background 0-255 selection 51 Channels Mode Function Value Description 0-255 0-540 degree X fine 0-255 16 bit 0-255 0-205 degree Y fine 0-255 16 bit XY speed 0-255 Fast-slow zoom 0-255 Small-big 0-127 0~60 degree rotating 128-191 Forward fast-slow 200-255 Reverse slow-fast dimmer 0-255...
speed 128-255 Reverse slow-fast Background R 0-255 Dark-bright Background G 0-255 Dark-bright Background B 0-255 Dark-bright Background W 0-255 Dark-bright 0-199 invalid Reset 200-205 Reset after 5s 206-255 invalid R1 LED dimmer 0-255 R1 LED dimmer G1 LED dimmer 0-255 G1 LED dimmer B1 LED dimmer 0-255...
Page 17
3. Check the power on LED to see if it can be light up or not. B. Not responding to DMX controller 1. DMX LED should be on. If not, check DMX connectors, cables to see if they are linked properly. 2.
10.CLEANING AND MAINTENANCE Following are a few common problems that may occur during operation. Here are some suggestions for easy troubleshooting: CLEANING Frequent cleaning is recommended to insure proper function, optimized light output, and an extended life. The frequency of cleaning depends on the environment in which the fixture operates: damp, smoky or particularly dirty environments can cause greater accumulation of dirt on the fixture’s optics.
Page 19
Add: No.619 Building C Jiahua Square Yingbin Avenue Guangzhou China +86-20-2904 6476 info@ricostagelight.com YouTube www.riukoe.com Facebook...
