Summary of Contents for RIUKOE ML-B080

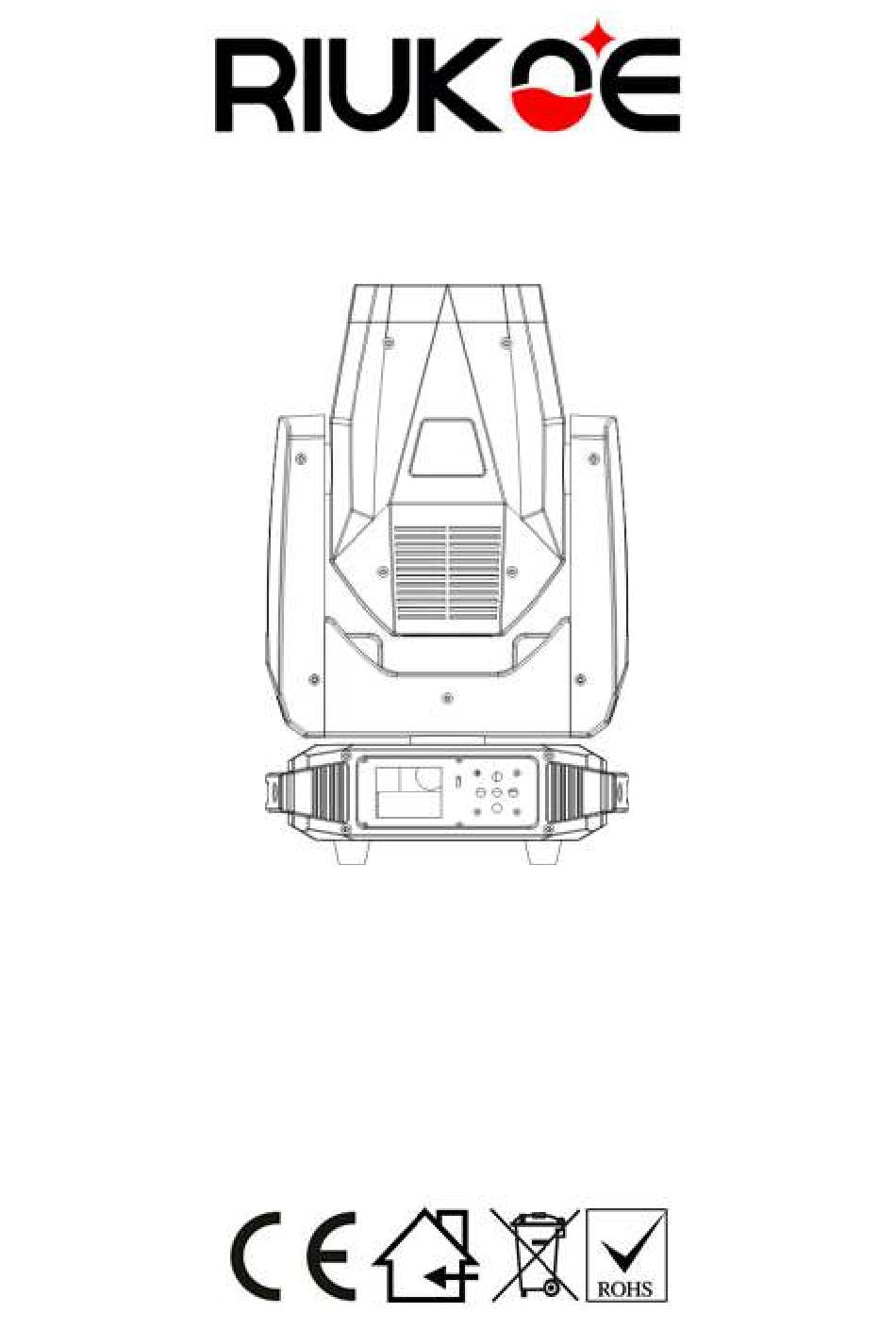

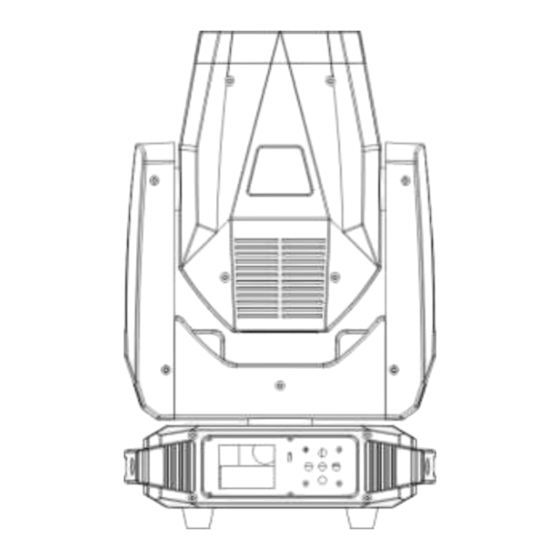

- Page 1 80W LED Beam Moving Head ML-B080 User Manual Please read this user manual before using this product.
-
Page 2: Table Of Contents
GENERAL GUIDELINES ..................4 INSTALLATION ..................... 6 TECHNICAL SPECIFICATION .................. 8 CONTROL SYSTEM ..................... 11 HOW TO SET THE UNIT ..................12 CHANNEL DESCRIPTION: ................... 13 TROUBELSHOOTING ..................17 CLEANING AND MAINTENANCE ................ 19 www.riukoe.com ML-B080 80W LED Beam Moving Head User Manual... -
Page 3: Statement
OMEGA CLAMP SATETY CABLE SAFETY INSTRUCTION Please keep this User Guide for future consultation. If you sell the unit to another user, be sure that they also receive this instruction booklet. www.riukoe.com ML-B080 80W LED Beam Moving Head User Manual... -
Page 4: General Guidelines
This fixture is a professional lighting effect designed for INDOOR / DRY LOCATIONS ONLY on stage, in nightclubs, theatres, etc. Please make sure there are NO FLAMMABLE MATERIALS close to the www.riukoe.com ML-B080 80W LED Beam Moving Head User Manual... - Page 5 Use the original packaging and materials to transport the fixture in for service. DO NOT TOUCH the housing bare-hand during its operation. Turn OFF the power and allow approximately 15 minutes for the fixture to cool down before replacing or serving. www.riukoe.com ML-B080 80W LED Beam Moving Head User Manual...
-
Page 6: Installation
10 times of the unit’s weight. Also always use a www.riukoe.com ML-B080 80W LED Beam Moving Head User Manual... - Page 7 3-pin XLR input of the moving head. You can chain multiple Moving head together through serial linking. The cable needed should be two core, screened cable www.riukoe.com ML-B080 80W LED Beam Moving Head User Manual...
-
Page 8: Technical Specification
XLR plug with a 120 resistor connected between pins 2 and 3,which is then plugged into the output XLR socket of the last fixture in the chain. Please see illustrations below. TECHNICAL SPECIFICATION Power Supply - Voltage:AC90-240V,50/60Hz; - Power:200W; www.riukoe.com ML-B080 80W LED Beam Moving Head User Manual... - Page 9 - Fixed gobo plate: 13 gobos +open,gobo shaking, pattern water effect Prisms - Double prism disk: 8 prisms, 16 prisms Prism rotation effect (magnifying mirror can choose honeycomb mirror) Focus - Focusing effect www.riukoe.com ML-B080 80W LED Beam Moving Head User Manual...
- Page 10 195300 LUX @2m 48500 LUX @4m 23000 LUX@6m Please Note: Specifications and improvements in the design of this unit and this manual are subject to change without any prior written notice. www.riukoe.com ML-B080 80W LED Beam Moving Head User Manual...
-
Page 11: Control System
The DMX512 is widely used in intelligent lighting control, with a DMX 512 controller. Connect several lights together dmx in and dmx out, 3 pin XLR connectors: Pin 1: GND, Pin 2: Negative signal (-), Pin 3: Positive signal www.riukoe.com ML-B080 80W LED Beam Moving Head User Manual... -
Page 12: How To Set The Unit
In the event of disconnecting with mains power, press the UP button for one minute to enter into menu mode. Press MENU button or let the unit idle one minute to exit. Display Function DMX address 001-512 www.riukoe.com ML-B080 80W LED Beam Moving Head User Manual... -
Page 13: Channel Description
Manual mode slightly slightly Calibration slightly System test System message slightly CHANNEL DESCRIPTION: 20 CH 16 CH DMX Value Function 0 － 255 0 － 255 Pan Low 0 － 255 Tilt www.riukoe.com ML-B080 80W LED Beam Moving Head User Manual... - Page 14 Colour white+1 10-14 Colour 1 15-19 Colour 1+2 20-24 Colour 2 25-29 Colour 2+3 30-34 Colour 3 35-39 Colour 3+4 40-44 Colour 4 45-49 Colour 4+5 50-54 Colour 5 55-59 Colour 5+6 www.riukoe.com ML-B080 80W LED Beam Moving Head User Manual...
- Page 15 115 － 199 FAST-SLOW 200-205 STOP 206-255 SLOW - FAST 0-255 Colour Fine Gobo white 10-19 Gobo 1 20-29 Gobo 2 30-39 Gobo 3 40-49 Gobo 4 50-59 Gobo 5 www.riukoe.com ML-B080 80W LED Beam Moving Head User Manual...
- Page 16 200-207 Gobo 11 Jitter 208-230 FAST-SLOW 231-232 STOP 233-255 SLOW - FAST 0 － 255 Foucs 0 － 255 Foucs Fine Colour 7 0-127 Emptv 128-255 Colour 7 Frost 0-255 Frost www.riukoe.com ML-B080 80W LED Beam Moving Head User Manual...
-
Page 17: Troubelshooting
SLOW ROTATION - FAST ROTATION 192 － 255 SLOW - FAST Reset 200 － 250 Reset 251- 255 Empty TROUBELSHOOTING Following are a few common problems that may occur during operation. Here www.riukoe.com ML-B080 80W LED Beam Moving Head User Manual... - Page 18 2. Loosen the screws (A)，open the cover. 3. Loosen the screws (B). 4. Unplug all the connect wires over the belt. 5. Change a new belt (C), put the belt around the axis gear and motor gear. www.riukoe.com ML-B080 80W LED Beam Moving Head User Manual...
-
Page 19: Cleaning And Maintenance
The frequency of cleaning depends on the environment in which the fixture operates: damp, smoky or particularly dirty environments can cause greater accumulation of dirt on the fixture’s optics. www.riukoe.com ML-B080 80W LED Beam Moving Head User Manual... - Page 20 Electric power supply cables must not show any damage, material fatigue or sediments. Never remove the ground prong from the power cable. www.riukoe.com ML-B080 80W LED Beam Moving Head User Manual...
