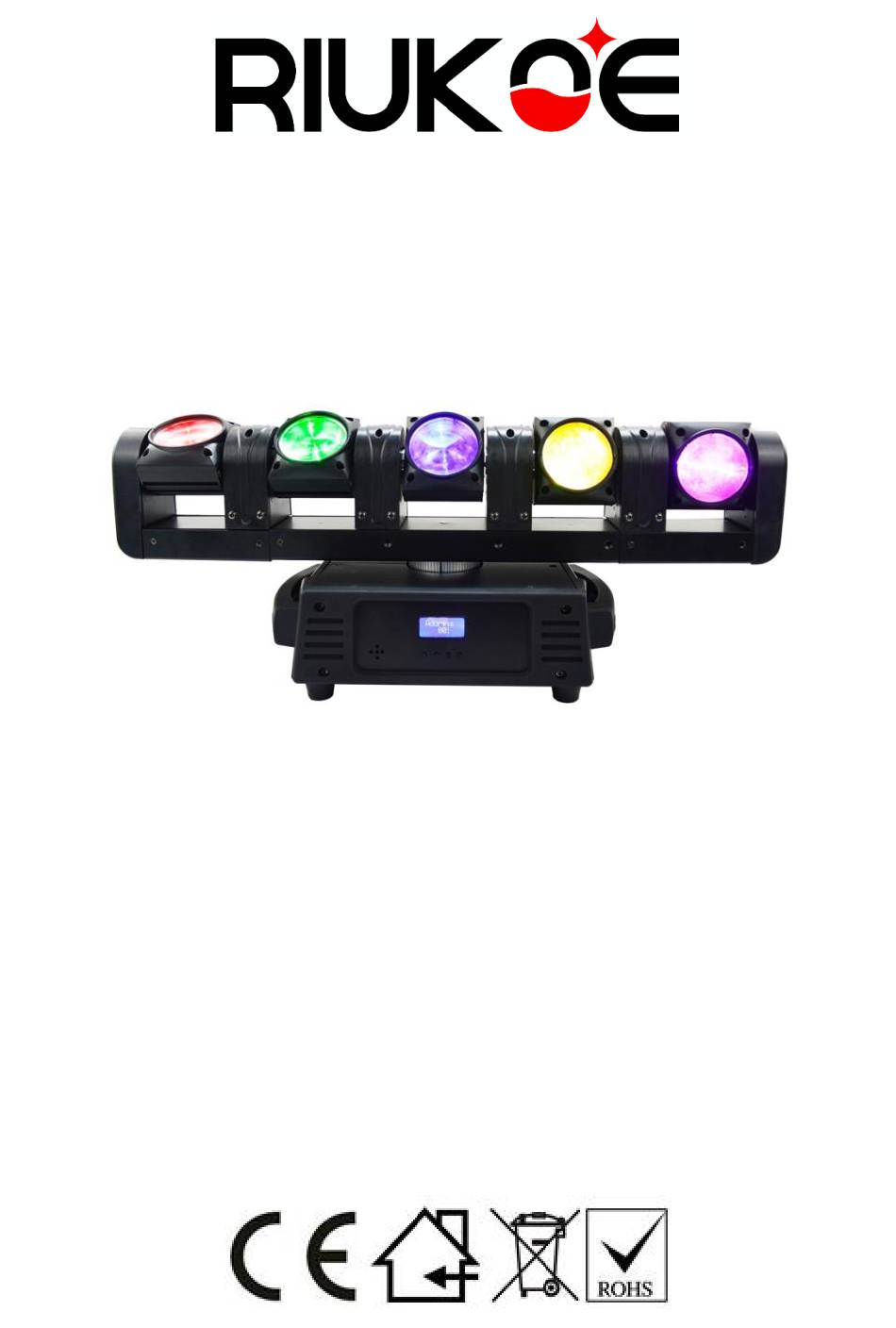

- Page 1 5 Heads Rogue Moving Head Bar Light ML-B0054 User Manual Please read this user manual before using this product.
- Page 2 INDEX STATEMENT ACCESSORIES SAFETY INSTRUCTION GENERAL GUIDELINES INSTALLATION TECHNICAL SPECIFICATION CONTROL SYSTEM CONTROL PANEL DISPLAY HOW TO SET THE UNIT CHANNEL DESCRIPTION: CLEANING AND MAINTENANCE www.riukoe.com ML-B0054 5 Heads Rogue Moving Head Bar User Manual...
-
Page 3: Safety Instruction
CLAMP SATETY ROPE SAFETY INSTRUCTION Please keep this User Guide for future consultation. If you sell the unit to another user, be sure that they also receive this instruction booklet. www.riukoe.com ML-B0054 5 Heads Rogue Moving Head Bar User Manual... -
Page 4: General Guidelines
This fixture is a professional lighting effect designed for INDOOR / DRY LOCATIONS ONLY on stage, in nightclubs, theatres, etc. www.riukoe.com ML-B0054 5 Heads Rogue Moving Head Bar User Manual... - Page 5 DO NOT TOUCH the housing bare-hand during its operation. Turn OFF the power and allow approximately 15 minutes for the fixture to cool down before replacing or serving. www.riukoe.com ML-B0054 5 Heads Rogue Moving Head Bar User Manual...
-
Page 6: Installation
10 times of the unit’s weight. Also always use a www.riukoe.com ML-B0054 5 Heads Rogue Moving Head Bar User Manual... -
Page 7: Clamp Mounting
3-pin XLR input of the moving head. You can chain multiple Moving head together through serial linking. The cable needed should be two core, screened cable with XLR input and output connectors. Please refer to the diagram below. www.riukoe.com ML-B0054 5 Heads Rogue Moving Head Bar User Manual... -
Page 8: Dmx-512 Connection With Dmx Terminator
540°/360° Infinite ◆ Power sockets: IEC IN/OUT Please Note: Specifications and improvements in the design of this unit and this manual are subject to change without any prior written notice. www.riukoe.com ML-B0054 5 Heads Rogue Moving Head Bar User Manual... -
Page 9: Control System
Connect several lights together dmx in and dmx out, 3 pin XLR connectors: Pin 1: GND, Pin 2: Negative signal (-), Pin 3: Positive signal CONTROL PANEL Display Shows the various menus and selected functions www.riukoe.com ML-B0054 5 Heads Rogue Moving Head Bar User Manual... -
Page 10: How To Set The Unit
Once the required mode has been selected, press the ENTER button to confirm. The main functions are as below: DMX address DMX Address (001-512) Channel mode 6/18/29/31 CH Slave mode Master mode Slave 1 www.riukoe.com ML-B0054 5 Heads Rogue Moving Head Bar User Manual... -
Page 11: Channel Description
000 – 7 open 8 – 255 From slow to fast 0—100% Tilt 000-007 No function Movement 008-022 Movement 01 023-037 Movement 02 038-052 Movement 03 053-067 Movement 04 068-082 Movement 05 www.riukoe.com ML-B0054 5 Heads Rogue Moving Head Bar User Manual... - Page 12 Pan Rotate 000– 005 stop 006-126 Movement forward fast to slow 127-128 stop 129-249 Movement forward slow to fast 250-255 stop Tilt1 000-255 Tilt1 0°~ 360° Tilt1 Rotate 000-005 Stop www.riukoe.com ML-B0054 5 Heads Rogue Moving Head Bar User Manual...
- Page 13 Movement forward fast to slow 127-128 Stop 129-249 Movement forward fast to slow 250-255 stop Color4 000-025 Tilt5 000-255 Tilt5 0°~ 360 Tilt5 Rotate 000-005 Stop 006-126 Movement forward fast to slow www.riukoe.com ML-B0054 5 Heads Rogue Moving Head Bar User Manual...
- Page 14 Movement 09 143-157 Movement 10 158-172 Movement 11 173-187 Movement 12 188-202 Movement 13 203-217 Movement 14 218-232 Movement 15 233-247 Movement 16 248-255 Sound active Movement 000-255 Movement Speed www.riukoe.com ML-B0054 5 Heads Rogue Moving Head Bar User Manual...
- Page 15 006-126 Movement forward fast to slow 127-128 Stop 129-249 Movement forward fast to slow 250-255 stop Color2 000-255 Tilt3 000-255 Tilt3 0°~ 360° Tilt3 speed 000-255 Speed fast to slow www.riukoe.com ML-B0054 5 Heads Rogue Moving Head Bar User Manual...
- Page 16 31 Channel Mode Channel DMX Value Function Dimmer 000 - 255 dimmer 0 ~ 100% Strobe 000 – 007 open 008–255 From slow to fast 0—100% 000 - 255 0°~ 540° www.riukoe.com ML-B0054 5 Heads Rogue Moving Head Bar User Manual...
- Page 17 000-255 Tilt3 000-255 Tilt3 0°~ 360° Tilt3 Fine 000-255 Tilt3 Fine Tilt3 speed 000-255 Speed fast to slow Tilt3 Rotate 000-005 Stop 006-126 Movement forward fast to slow 127-128 Stop www.riukoe.com ML-B0054 5 Heads Rogue Moving Head Bar User Manual...
- Page 18 Tilt5 Fine Tilt5 speed 000-255 Speed fast to slow Tilt5 Rotate 000-005 Stop 006-126 Movement forward fast to slow 127-128 Stop 129-249 Movement forward fast to slow 250-255 stop Color5 000-255 www.riukoe.com ML-B0054 5 Heads Rogue Moving Head Bar User Manual...
-
Page 19: Cleaning And Maintenance
Should you need any spare parts, please order genuine parts from your local dealer. Please refer to the following points during routine inspections: www.riukoe.com ML-B0054 5 Heads Rogue Moving Head Bar User Manual... - Page 20 • Electric power supply cables must not show any damage, material fatigue or sediments. Never remove the ground prong from the power cable. www.riukoe.com ML-B0054 5 Heads Rogue Moving Head Bar User Manual...
