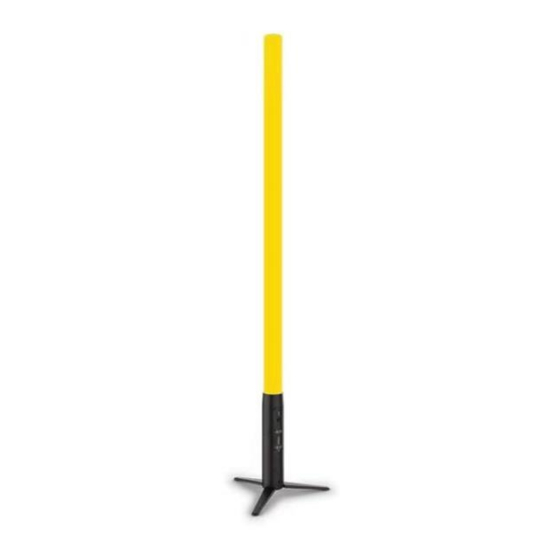

Five-color Video Pixel Light Bar
This product manual contains important information about the safe
installation and use of this projector. Please read and follow these
instructions carefully and keep this manual in a safe place for future
reference.
User manual
Please read the instructions carefully before use
(EL-BAR360)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EL-BAR360 and is the answer not in the manual?

Questions and answers

Related Manuals for RIUKOE EL-BAR360

Summary of Contents for RIUKOE EL-BAR360

  • Page 1 Five-color Video Pixel Light Bar (EL-BAR360) This product manual contains important information about the safe installation and use of this projector. Please read and follow these instructions carefully and keep this manual in a safe place for future reference. User manual...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS 1. Safety Information....................2 2. IP65 Rated ......................3 3. Configuring the fixture for DMX control ............... 4 4. Battery ........................5 5. Cleaning ........................ 6 6. Control Modes Setting ................... 6 7. Control menu ......................8 8.

  • Page 3: Safety Information

    STATEMENT The product has well capability and intact packing when leave factory. All of the user should comply with warning item and manual, any misuse cause of the damages are not included in our guarantee, and also can not be responsible for any malfunction &...

  • Page 4: Ip65 Rated

    Install in a location that prevents accidental contact with the fixture. ⚫ Install only in a well-ventilated space. ⚫ Install only in accordance with applicable building codes. ⚫ Do not paint, cover or modify the fixture. ⚫ Keep all flammable materials away from the fixture. ⚫...

  • Page 5: Configuring The Fixture For Dmx Control

    define the degree of protection. The first digit (Foreign Bodies Protection) indicates the extent of protection against particles entering the fixture and the second digit (Water Protection) indicates the extent of protection against water entering the fixture. An IP65 rated lighting fixture is one, which has been designed and tested to protect against the ingress of dust (6) and high-pressure water jets from any direction (5).

  • Page 6: Battery

    DMX-512 WIRELESS CONTROLLER CONNECTION Wireless Dmx512 transmitter works by transferring standard dmx512 data wirelessly, also between devices to devices. This product has completely solved the data wireless transfer between console and lights, lights to lights, get rid of the long relied twisted wires and achieve no delay, real-time in the data transferring.

  • Page 7: Cleaning

    5. Cleaning To maintain optimal performance, regular cleaning is essential. Cleaning schedules will vary depending on the operating environment, and the installation should therefore be checked at frequent intervals within the first few weeks of operation to see whether cleaning is necessary. This procedure will allow you to assess cleaning requirements in your particular situation.
  • Page 8 When the connection is successful, exit the phone function settings, open the LED LAMP application software，select the “LED LIGHT” and open, then can be controlled directly. Different phone operating interface may be different, but the function is the same. 6.2. IR Remote Control 6.2.1 IR Remote Panel •...

  • Page 9: Control Menu

    • Strobe: Strobe. Press +- to change speed • 0-9 buttons: built-in colors. • Fade: Color Gradual change, Press +- to change speed • Sound: sound modes press this to change. Press +- to change sensitivity 6.2.2 How to set the IR Remote control Set the infrared remote control function on (ON) in the menu to turn on the remote control function.
  • Page 10 Show "Set DMX Address DMX Address:001",Press the "UP and DOWN" keys to amended Press "ENTER" keys to save and Exit, Press the "MENU" Keys does not save and Exit Display Function Table Address 001--512 Address code mode 4CHA 4A channel mode 4CHB 4B channel mode 5 channel mode...
  • Page 11 Color:1-27 Strobe:0-255 DIM:0-255 L101 L102 L105 L106 L107 L110 L111 L115 L116 L118 L119 L121 Lee Color L124 Color L126 L127 L128 L132 L135 L139 L147 L151 L152 L158 L164 L174 L179...
  • Page 12 L180 L201 L203 L204 Strobe:0-255 DIM:0-255 1750K 2000K 2250K 2500K 2750K 3000K 3250K 3500K 3750K 4000K 4250K 4500K 4750K 5000K 5250K 5500K 5750K 6000K 6250K 6500K 6750K 7000K 7250K...
  • Page 13 7500K 7750K 8000K 8250K 8500K 8750K 9000K 9250K 9500K 9750K 10000K G/M:-1.00--1.00 DIM:0-255 HUE:0-360 STA:0-100 Auto Mode:0-60 Auto Speed:1-16 Color:0-27 Sound Mode:0-3 Sound SENS:0-100 Color:0-27 WIFI LED_XXX Master Master/Slave Slave Wireless Clear Pairing...

  • Page 14: Dmx Channel

    Run Time 1h/2h/3h/4h/5h/6h/7h/8h/9h/10h/11h/12h Version1.0 Information Current Time 00H35M 00S Menu Lock Always On Back Light Factory Reset 8. DMX Channel 4CHA Value Function Close Light 2~255 Total Dimming 0~10 None 11~255 Strobe None 5~255 Color temperature 0~255 Tune GM...
  • Page 15 4 CHB Value Function Close Light 2~255 Total Dimming 0~10 None 11~255 Strobe None 5~255 Tune RGB mixed color 0~255 Color saturation 5 CH Value Function 0~255 Red Dimming 0~255 Green Dimming 0~255 Blue Dimming 0~255 White Dimming 0~255 Yellow Dimming 6 CHA Value Function...
  • Page 16 0~255 Color saturation 6 CHB Value Function Close Light 2~255 Total Dimming 0~255 Red Dimming 0~255 Green Dimming 0~255 Blue Dimming 0~255 White Dimming 0~255 Yellow Dimming 7 CH Value Function Close Light 2~255 Total Dimming 0~10 None 11~255 Strobe 0~255 Red Dimming 0~255...
  • Page 17 11~255 Strobe 0~10 Cycle color mixing 11~19 20~28 Green 29~37 Blue 38~46 White 47-55 yellow 56-64 red+green 65-73 green+blue 74-82 red+blue 83-91 red+green 92-100 green+blue 101-109 red+yellow 110-118 red+green 119-127 green+blue 128-136 137-145 blue+yellow 146-154 yellow+white 155-163 green+white 164-172 green+yellow 173-181 red+blue+white 182-190...
  • Page 18 0-16 none 17-33 background red 34-50 background green 51-67 background blue 68-84 background white 85-101 background yellow 102-118 background red+green 119-135 background green+blue 136-152 background red+blue 153-169 background red+green 170-186 background green+blue 187-203 background red+yellow 204-220 background red+green 221-237 background green+blue 238-254 background red+blue background blue+yellow...
  • Page 19 40 CH Value Function 0~255 R-1 dimmer 0~255 G-1 dimmer 0~255 B-1 dimmer 0~255 W-1 dimmer 0~255 Y-1 dimmer 0~255 R-2 dimmer 0~255 G-2 dimmer 0~255 B-2 dimmer 0~255 W-2 dimmer 0~255 Y-2 dimmer ---- Y8 dimmer 80 CH Value Function 0~255 R-1 dimmer...

  • Page 20: Specification

    160 CH Value Function 0~255 R-1 dimmer 0~255 G-1 dimmer 0~255 B-1 dimmer 0~255 W-1 dimmer 0~255 Y-1 dimmer 0~255 R-2 dimmer 0~255 G-2 dimmer 0~255 B-2 dimmer 0~255 W-2 dimmer 0~255 Y-2 dimmer ---- 0~255 Y32 dimmer 9. Specification Electronic Power supply: Electronic auto-ranging Input voltage range: supply 100-240V, 50/60Hz...
  • Page 21 Charge time: 7 hrs Running time: 1 hour /2 hours /3 hours /4 hours /5 hours /6 hours /7 hours /8 hours /9 hours /10 hours /11 hours /12 hours mode is optional. Battery cycle life: 500 times Control DMX Channel: 4ch/5ch/6ch/7ch/12ch/40ch/80ch/160ch Control Modes: DMX Wireless / IR remote / App Construction Display: OLED Display...
