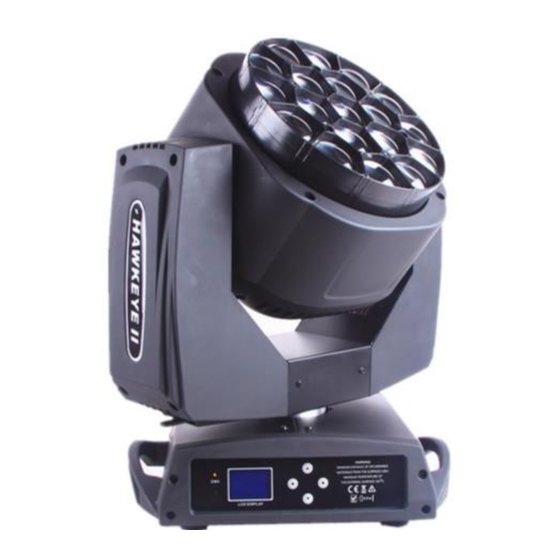

RIUKOE BEE EYE User Manual

Moving head
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

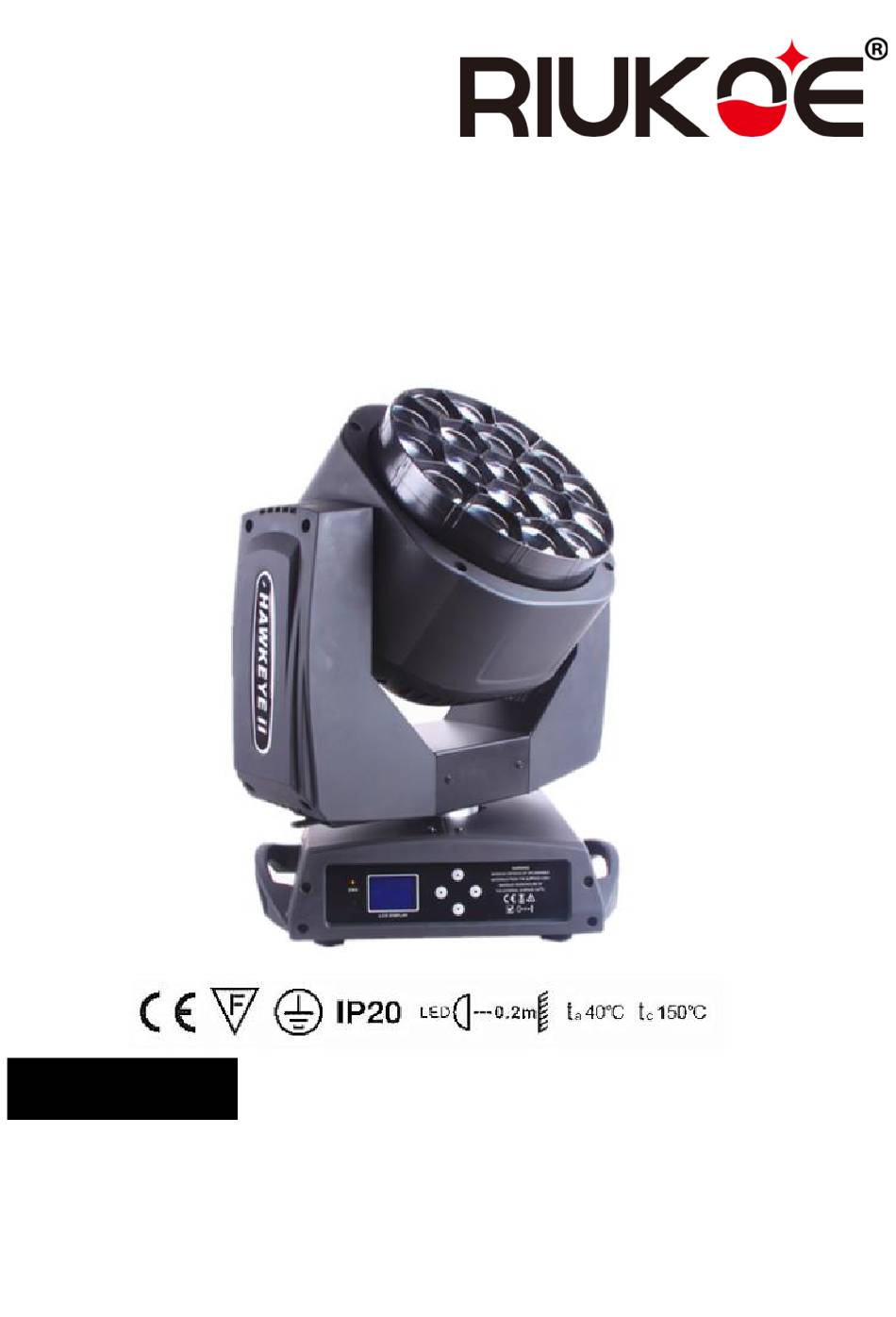

BEE EYE
MOVING HEAD
ML-W0194
User Manual
KEEP THIS MANUAL FOR FUTURE NEED

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BEE EYE and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for RIUKOE BEE EYE

Summary of Contents for RIUKOE BEE EYE

  • Page 1 BEE EYE MOVING HEAD ML-W0194 User Manual KEEP THIS MANUAL FOR FUTURE NEED...

  • Page 2: Table Of Contents

    INDEX STATEMENT ACCESSORIES SAFETY INSTRUCTION GENERAL GUIDELINES INSTALLATION TECHNICAL SPECIFICATION PHOTOMETRIC DIAGRAMS PRODUCT INTRODUCTION CONTROL SYSTEM CHANNEL DESCRIPTION: CLEANING AND MAINTENANCE...

  • Page 3: Statement

    STATEMENT Thank you for choosing RIUKOE, Bee eye moving head. The product has well capability and intact packing when leave factory. All of user should comply with warning item and manual, any misuse cause of the damages are not included...

  • Page 4: General Guidelines

    GENERAL GUIDELINES  NEVER OPEN THIS FIXTURE WHILE IN USE!  During the initial operation of this fixture, a light smoke or smell may emit from the interior of the fixture. This is a normal process and is caused by excess paint in the interior of the casing burning off from the heat associated with the lamp and will decrease gradually over time.

  • Page 5: Installation

     The fixture must be installed in a location with adequate ventilation, at least 1.5 feet (.5m) from adjacent surfaces. Be sure no air ventilation slots are blocked.  DO NOT attempt installation and/or operation without knowledge how to do so. ...

  • Page 6: Clamp Mounting

    C A U T I O N S  For added protection, mount the fixture in areas outside walking paths, seating areas, or in areas were unauthorized personnel might reach the fixture.  Ambient operating temperature range for this fixture is 5°...

  • Page 7: Dmx-512 Control Connection

    DMX-512 control connection: Connect the provided XLR cable to the female 3-pin XLR output of your controller and the other side to the male 3-pin XLR input of the moving head. You can chain multiple Moving head together through serial linking. The cable needed should be two core, screened cable with XLR input and output connectors.

  • Page 8: Dmx-512 Connection With Dmx Terminator

    DMX-512 connection with DMX terminator: For installations where the DMX cable has to run a long distance or is in an electrically noisy environment, such as in a discotheque, it is recommended to use a DMX terminator. This helps in preventing corruption of the digital control signal by electrical noise. The DMX terminator is simply an XLR plug with a 120 resistor connected between pins 2 and 3,which is then plugged into the output XLR socket of the last fixture in the chain.

  • Page 9: Photometric Diagrams

    G.W: 18.1Kg Special Points: 1. Each LED can be controlled individually. With unique honeycomb designed lens 2. The front lens can rotate without limitation in forward and reverse direction to create amazing effects 3. Display screen can be turned upside down with 180°automatically to fit the installation in different place, Display can be equipped with rechargeable battery to set DMX address without power connection.

  • Page 11: Product Introduction

    PRODUCT INTRODUCTION...

  • Page 12: Control System

    CONTROL SYSTEM The DMX512 is widely used in intelligent lighting control, with a DMX 512 controller. Connect several lights together dmx in and dmx out, 3 pin XLR connectors: Pin 1: GND, Pin 2: Negative signal (-), Pin 3: Positive signal...

  • Page 13: Display Instruction

    Display Instruction...

  • Page 14: Board Connection

    Board connection LED driver board...
  • Page 15 Main Board Screen Board...

  • Page 16: Channel Description

    Channel description: 21 CHANNELS (STANDARD) 0-255 LED OFF - LED ON Red fine 0-255 LOW - UP Green 0-255 LED OFF - LED ON Green fine 0-255 LOW - UP Blue 0-255 LED OFF - LED ON Blue fine 0-255 LOW - UP White 0-255...
  • Page 17 0-255 Pan Rotation Pan Fine 0-255 Pan Fine Tilt 0-255 Tilt Rotation Tilt Fine 0-255 Tilt Fine Pan/Tilt Speed 0-255 From Slow To Fast Zoom 0-255 Zoom 0-127 0 to 60 degree LENS rotation 128-191 Unlimited clockwise rotation from fast to slow 192-255 Unlimited anticlockwise rotation from fast to slow Dimmer...
  • Page 18 251-255 Reset with 5 seconds 35 CHANNELS (SHARP) 0-255 LED OFF - LED ON Red fine 0-255 LOW - UP Green 0-255 LED OFF - LED ON Green fine 0-255 LOW - UP Blue 0-255 LED OFF - LED ON Blue fine 0-255 LOW - UP...
  • Page 19 Shape R 0-255 LED OFF - LED ON Shape G 0-255 LED OFF - LED ON Shape B 0-255 LED OFF - LED ON Shape W 0-255 LED OFF - LED ON Shape Dimmer 0-255 NO LIGHT - FULL LIGHT Background Dimmer 0-255 NO LIGHT - FULL LIGHT...
  • Page 20 Tilt 0-255 Tilt Rotation Tilt Fine 0-255 Tilt Fine Function 0-255 Empty 0-127 UNUSED RANGE Reset 128-255 COMPLETE RESET Zoom 0-255 NARROW BEAM - WIDE BEAM Zoom Rotation 0-255 Zoom Rotation LED 1 Red 0-255 LED OFF - LED ON LED 1 Green 0-255 LED OFF - LED ON...
  • Page 21 LED 8 Green 0-255 LED OFF - LED ON LED 8 Blue 0-255 LED OFF - LED ON LED 9 Red 0-255 LED OFF - LED ON LED 9 Green 0-255 LED OFF - LED ON LED 9 Blue 0-255 LED OFF - LED ON LED 10 Red 0-255...

  • Page 22: Channels (Full)

    LED 18 Red 0-255 LED OFF - LED ON LED 18 Green 0-255 LED OFF - LED ON LED 18 Blue 0-255 LED OFF - LED ON LED 19 Red 0-255 LED OFF - LED ON LED 19 Green 0-255 LED OFF - LED ON LED 19 Blue 0-255...
  • Page 23 Zoom 0-255 NARROW BEAM - WIDE BEAM Zoom Rotation 0-255 Zoom Rotation Shape Selection 0-255 Shape Effect Shape Speed 0-255 SLOW Speed - FAST Speed Shape Fade 0-255 Fade effect Shape R 0-255 LED OFF - LED ON Shape G 0-255 LED OFF - LED ON Shape B...
  • Page 24 LED 5 Green 0-255 LED OFF - LED ON LED 5 Blue 0-255 LED OFF - LED ON LED 6 Red 0-255 LED OFF - LED ON LED 6 Green 0-255 LED OFF - LED ON LED 6 Blue 0-255 LED OFF - LED ON LED 7 Red 0-255...
  • Page 25 LED 15 Red 0-255 LED OFF - LED ON LED 15 Green 0-255 LED OFF - LED ON LED 15 Blue 0-255 LED OFF - LED ON LED 16 Red 0-255 LED OFF - LED ON LED 16 Green 0-255 LED OFF - LED ON LED 16 Blue 0-255...
  • Page 26 Dimmer 0-255 NO LIGHT - FULL LIGHT Dimmer Fine 0-255 LOW - UP 0-255 Pan Rotation Pan Fine 0-255 Pan Fine Tilt 0-255 Tilt Rotation Tilt Fine 0-255 Tilt Fine Function 0-255 Empty 0-127 UNUSED RANGE Reset 128-255 COMPLETE RESET Zoom 0-255 NARROW BEAM - WIDE BEAM...
  • Page 27 LED 4 Green 0-255 LED OFF - LED ON LED 4 Blue 0-255 LED OFF - LED ON LED 4 White 0-255 LED OFF - LED ON LED 5 Red 0-255 LED OFF - LED ON LED 5 Green 0-255 LED OFF - LED ON LED 5 Blue 0-255...
  • Page 28 LED 11 Blue 0-255 LED OFF - LED ON LED 11 White 0-255 LED OFF - LED ON LED 12 Red 0-255 LED OFF - LED ON LED 12 Green 0-255 LED OFF - LED ON LED 12 Blue 0-255 LED OFF - LED ON LED 12 White 0-255...
  • Page 29 LED 18 White 0-255 LED OFF - LED ON LED 19 Red 0-255 LED OFF - LED ON LED 19 Green 0-255 LED OFF - LED ON LED 19 Blue 0-255 LED OFF - LED ON LED 19 White 0-255 LED OFF - LED ON LINEAR CTO VALUE...
  • Page 30 184-190 Dark Steel Blue 180-183 Deep lavender Lilac Tint 175-178 Daylight Blue Flame Red 172-173 Bastard Amber 168-171 Deep Orange 162-167 Pale Gold 157-161 Apricot 151-156 Bright Blue 149-150 Primary Green 147-148 Special lavender Pale Lavender Deep Golden Amber 142-144 Medium Blue 138-141 Bright Pink...
  • Page 31 Light Rose 115-116 Orange Deep Amber Straw Light Amber 110-111 Spring Yellow 100-109 Dark yellow green 89-99 Just Blue 78-88 Sky Blue 68-77 Lavender 62-67 Light Lavender 49-61 Pink Carnation 46-48 Medium Pink Light Pink 35-44 Sunrise Red 32-34 Dark Amber Gold Amber Medium Amber Fire...

  • Page 32: Cleaning And Maintenance

    Blue Green Macro color OFF ZOOM ROTATION VALUE EFFECT 0-127 LINEAR ROTATION 128-190 FAST ROTATION - SLOW ROTATION 191-192 STOP 193-255 SLOW ROTATION - FAST ROTATION CLEANING AND MAINTENANCE Following are a few common problems that may occur during operation. Here are some suggestions for easy troubleshooting: CLEANING Frequent cleaning is recommended to insure proper function, optimized light...

  • Page 33: Maintenance

    • Clean the external lens surface at least every 20 days with a soft cloth to avoid dirt/debris accumulation. • Never use alcohol, solvents, or ammonia based cleaners. MAINTENANCE Regular inspections are recommended to insure proper function and extended life. There are no user serviceable parts inside this fixture, please refer all other service issues to an authorized service technician.
  • Page 34 Factroy: No.31 Zhongxing Road Baiyun District Guangzhou,China +86-20-2904 6476 info@ricostagelight.com YouTube www.riukoe.com Facebook...
