BOB REVOLUTION SE Owner's Instruction Manual page 29

ADJUST QUICK RELEASE
The rear wheels are correctly
clamped in place by the force
generated when the quick release
lever is closed and the cam action
pulls the axle against the dropout,
securing it in place.
The front wheel is correctly clamped
in place by the force generated when
the quick release lever is closed
and the cam action pulls the lever
housing against one dropout, and
pulls the adjusting nut against the
other dropout, clamping the hub
between the dropouts.
The tension adjusting nut sets
the amount of clamping force.
Turning the tension adjusting nut
in the clockwise direction while
preventing the quick release lever
from rotating, increases the amount
of clamping force. Alternatively,
turning the tension adjusting nut
counterclockwise, while preventing
the quick release lever from rotating,
reduces the amount of clamping
force. The tension adjusting nut only
needs minor adjustments to provide
the correct clamping force, less than
a half turn can mean the difference
between safe and unsafe clamping
force.

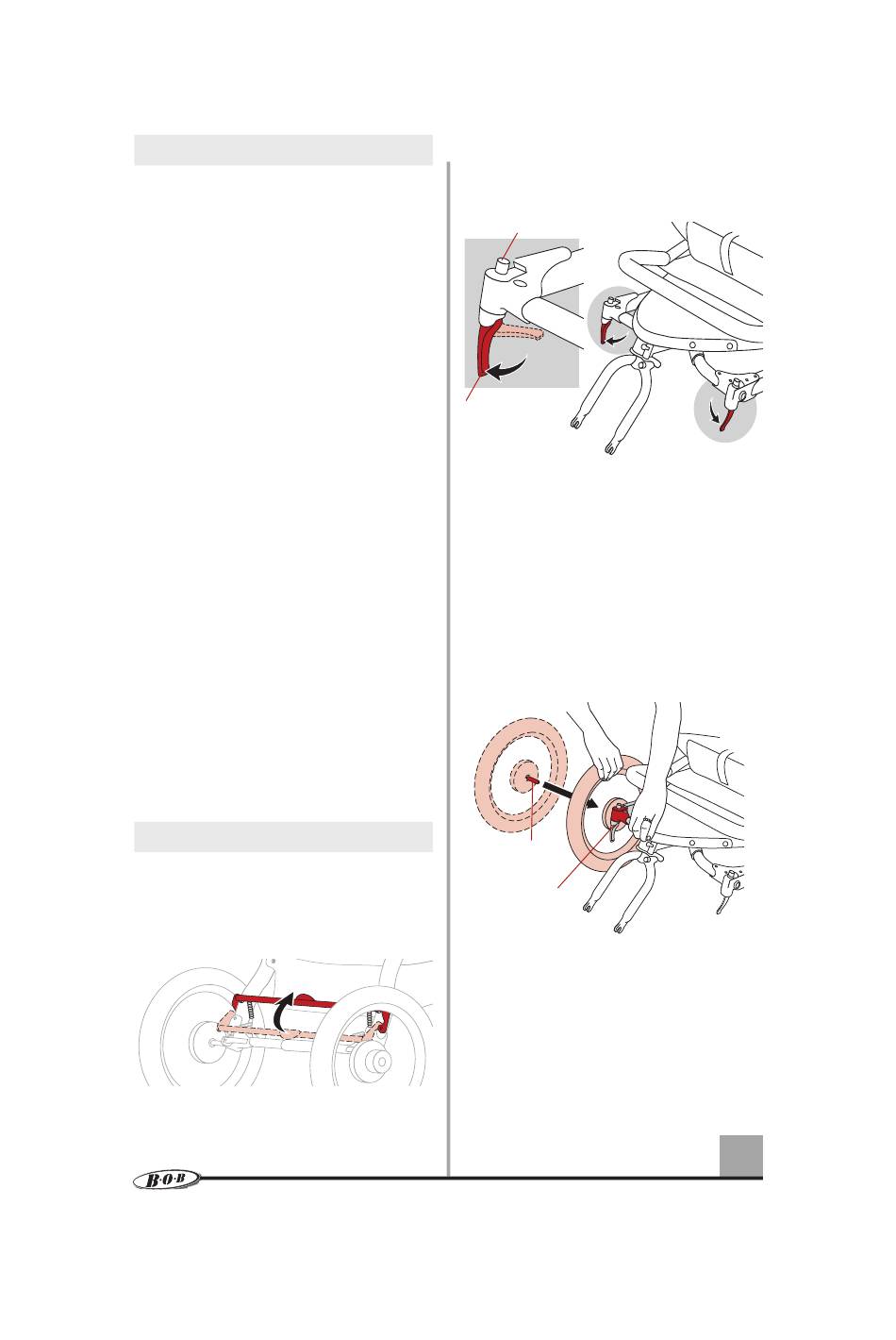

REAR WHEEL INSTALLATION
1. Unlock Parking Brake
Prior to installing the rear wheels,
position the parking brake in the
unlocked position.
2. Rotate Quick Release Lever
Rotate the quick release lever so it
curves away from the dropout.
Tension Adjusting Nut
Quick Release
Lever
3. Insert Rear Wheel Stub Axle
Insert the rear wheel's stub axle into
the hole in the rear dropout. If the
axle does not slide in easily, loosen
the quick release tension adjusting
nut by hand. Re-insert the axle fully
into the rear dropout until the axle
shoulder or snap ring on the axle
comes in contact with the dropout.
Stub Axle
Dropout
4. Adjust Quick Release Cam Lever
To adjust the quick release, hold the
quick release cam lever in the FULLY
OPEN position with your right hand,
and tighten the tension adjusting nut
with your left hand until it is fi nger
tight against the dropout.
28
2000008437 – 09/12
