BOB REVOLUTION Owner's Manual

Handlebar Release Lever
Rear Canopy Flap
Seat Recline Adjusters
Slider Latch
Seat Back Pocket
Shock Absorber
Shock Release Button
Frame Release Handle
Fig. 1
Wrist Safety Strap

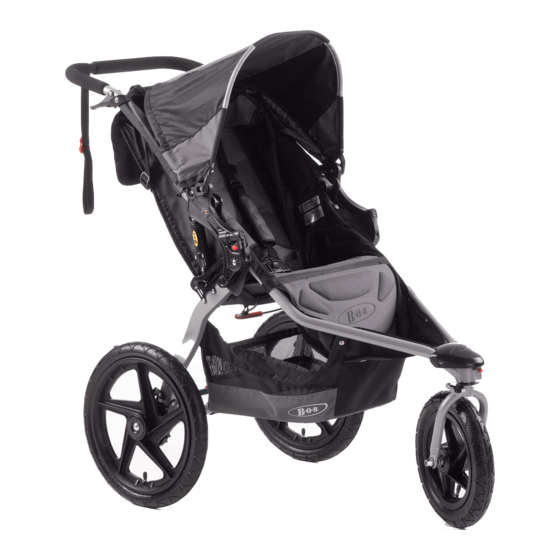

Anatomy of the
BOB Revolution
Stroller.
BOB is a company that produces high quality products, which encourage
a healthy, outdoor, car-free life-style. In addition to strollers, we also
make single-wheeled cargo trailers for bicycles. See www.bobgear.com
for our complete line of products. Before attempting to assemble
or use your new stroller, read and understand these operating
instructions completely to insure proper assembly and operation.
If you are unclear on any point, contact your dealer or BOB before
use.
WARNINGS
. Never leave child unattended in the stroller.
. Failure to properly assemble or install the quick release wheels on
this stroller may result in the wheels becoming detached while
moving and a subsequent loss of control of the stroller.
. Always use seat harness to avoid serious injury to child from sliding
or falling out of stroller.
. Never allow occupants to stand in stroller.
. The parking brake is not designed as a stopping brake. The brake
should not be used to slow or stop the stroller. The brake is intended
to park the stroller on flat surfaces, not on inclines. Never leave
your children in the stroller unattended with or without the parking
brake set!
. Do not attach parcels or bags to the handle or frame of stroller
except those recommended by BOB, as stroller can become
unstable and tip over.
. The maximum load of the stroller is 70 lbs (32 kg). Do not exceed
maximum load (occupant plus luggage weight) as stroller will
become unstable.
. Do not place sharp objects in the seatback pocket as your child
leans against this and can be injured as a result.
. When starting out, always make sure the child’s hands and feet
are away from wheels.
. Follow instructions and use care when folding and unfolding stroller
to prevent finger entrapment (see section 13).
. The stroller is not equipped for use after dark. If you intend to use
at night, we recommend installing a lighting system available through
your local bike shop.
. We do not recommend wearing roller skates or in-line skates while
pushing stroller.
. Never run with the stroller in Swivel Mode (see section 6)
. Do not use stroller on stairs or steep inclines. Stroller can tip over,
resulting in injury.
. Never pull a loaded stroller backwards up stairs. Doing so could
damage the suspension system – leading to frame failure and
serious injury to the user and/or the occupants.
. Always use Wrist Safety Strap.
BOB IS NOT RESPONSIBLE FOR INJURY, DAMAGE, OR FAILURE
THAT RESULTS FROM OWNER’S FAULTY ASSEMBLY OR
MAINTENANCE AFTER SHIPPING.
BOB REVOLUTION OWNER’S MANUAL
Handlebar
Parking Brake
Swing Arm
Canopy Drawstring
Sun Canopy
Low Boy
Cargo
Swing
Pouch
Arm
Pivot

AGE RECOMMENDATIONS:

It is recommended that your child be a minimum of 6 to 8 weeks old
before riding directly in the stroller seat. Young babies incapable of
holding their head up must be provided additional head and neck
support to ride safely. For jogging and off road use, children should
be at least 6 to 8 months old.
Children develop at different rates. Consult
with your pediatrician regarding the
suitability of the stroller use with your
child.
ASSEMBLY
INSTRUCTIONS:
Reference Fig. 1 as it describes
the various parts of the stroller.
1. UNPACK: Remove stroller
and stroller wheels from
packaging. Plastic packaging
material was used to protect the
front fork dropouts, the front
wheel axle quick
release, handlebar
release levers and
the metal shock
brackets. Remove
these plastic pieces.
Handlebar Release
Lever
2. SWINGARM:
Rotate the
swingarm away
Slider Latch
from the front of the
stroller until the
Fig. 3
Handlebar in the fully open position.
shocks engage in
the first position (Fig.
2). Each shock
locking pin will
“snap” and lock into
position 1.
3. HANDLEBAR:
Rotate the stroller
handlebar up to the
fully open position.
Slider Latches will
lock into place (Fig.
Fig. 4
3).
4. REAR WHEEL:
Place the rear wheel quick release lever in the open position, as
shown in Fig. 4. Insert the rear wheel’s stub axle into the hole in the
rear dropout. If the axle does not slide in easily, loosen the quick
Seat Pockets
5 Point
Safety Harness
Foot Well
Swivel Lockout Knob
Tracking
Adjustment Knob
Fork
Shock
Release
Position 1
Button
Position 2
Fig. 2
Swingarm in unfolded position
with shock in position 1.
Quick Release
Open
Adjusting Nut
Rear wheel Quick Release with
lever in open position.
