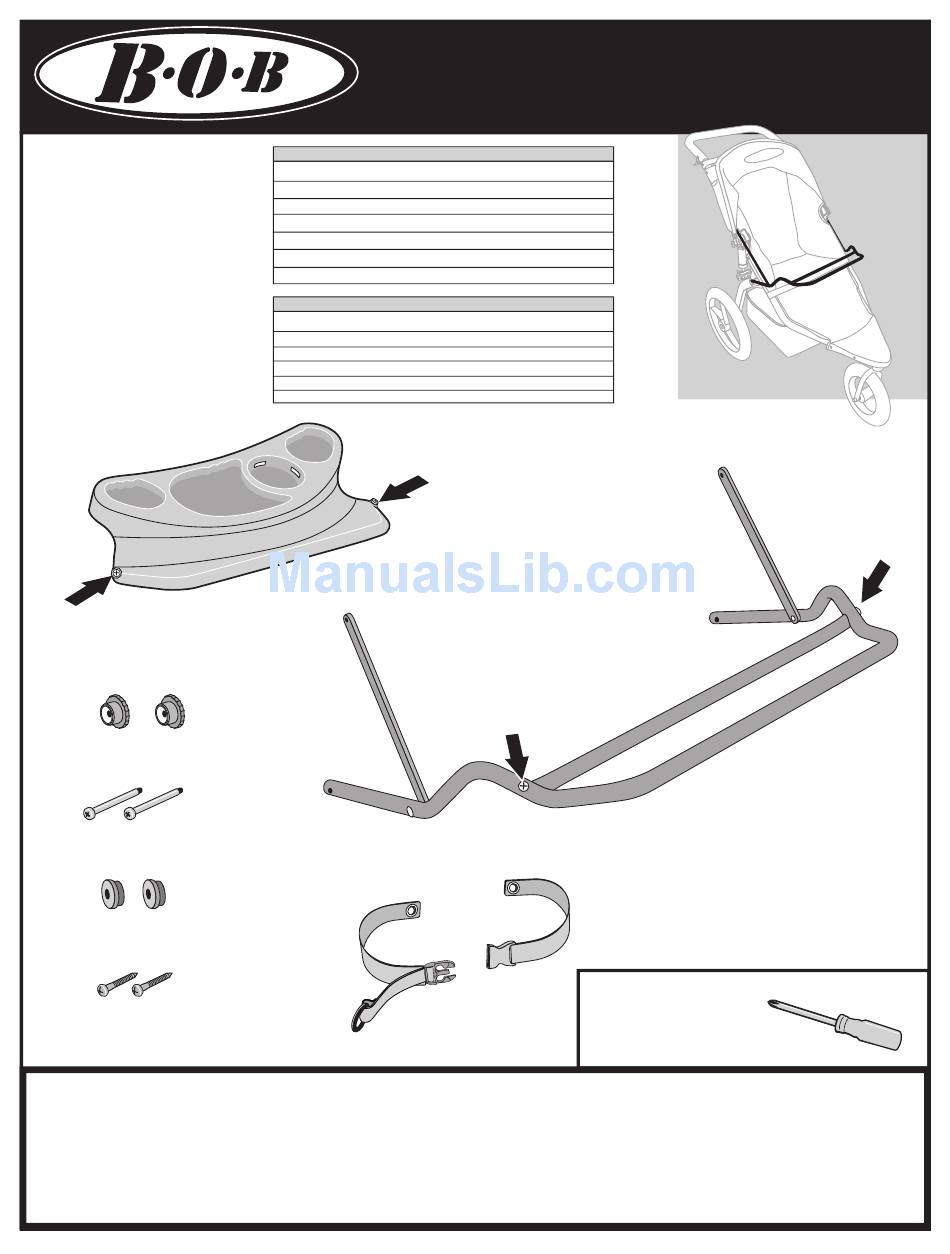

Instruction Manual
Congratulations on your
purchase of the BOB Infant
Car Seat Adapter (ICSA).
It is designed to allow the
attachment of an Infant
Car Seat to your BOB
Stroller. Please refer to the
tables at right for details
of compatible strollers and
car seats.
Tray
Long Screw (installed)
Pivot Nut 2x
Pivot Screw 2x
Pivot Plug 2x
Sharp Screw 2x
TAKE TIME - READ AND UNDERSTAND INSTRUCTIONS COMPLETELY!
Before attempting to assemble or use your new ICSA, read and understand these assembly
instructions completely, as well as the warnings at the end of this document, to insure proper
assembly and safe operation.
If you are unclear on any point, contact your dealer or BOB before use.
OMA09D
Infant Car Seat
Adapter Instructions
BOB Stroller Model Year Compatibility
Model Year(s)
Model
2005 and newer
Sport Utility Stroller
2005 and newer
Sport Utility Stroller D'Lux
2005 and newer
Ironman
2005 and newer
Revolution
2005 and newer
Stroller Strides
2007 and newer
Revolution 12"
Car Seat Compatibility
Brand
Model
Britax®
Companion®
Graco®
Snug Ride®
Graco®
SafeSeat™
Peg Pérego®
Primo Viaggio®
Peg Pérego®
Primo Viaggio SIP™
Long Screw
(installed)
Arm
Restraint
Belt M
Serial Number
AA000001 and higher
AB000001 and higher
AC000001 and higher
AF000001 and higher
AG000001 and higher
AK000001 and higher
Year(s)
2003 and newer
2003 and newer
2006 and newer
2003 and newer
2006 and newer
Accessory Bar
Accessory Bar
Short Screw
(installed)
Restraint
Belt F
TOOLS NEEDED:
Phillips screwdriver.
Arm
Short Screw
(installed)
Main Bar
P1
