RTX-87F-PU

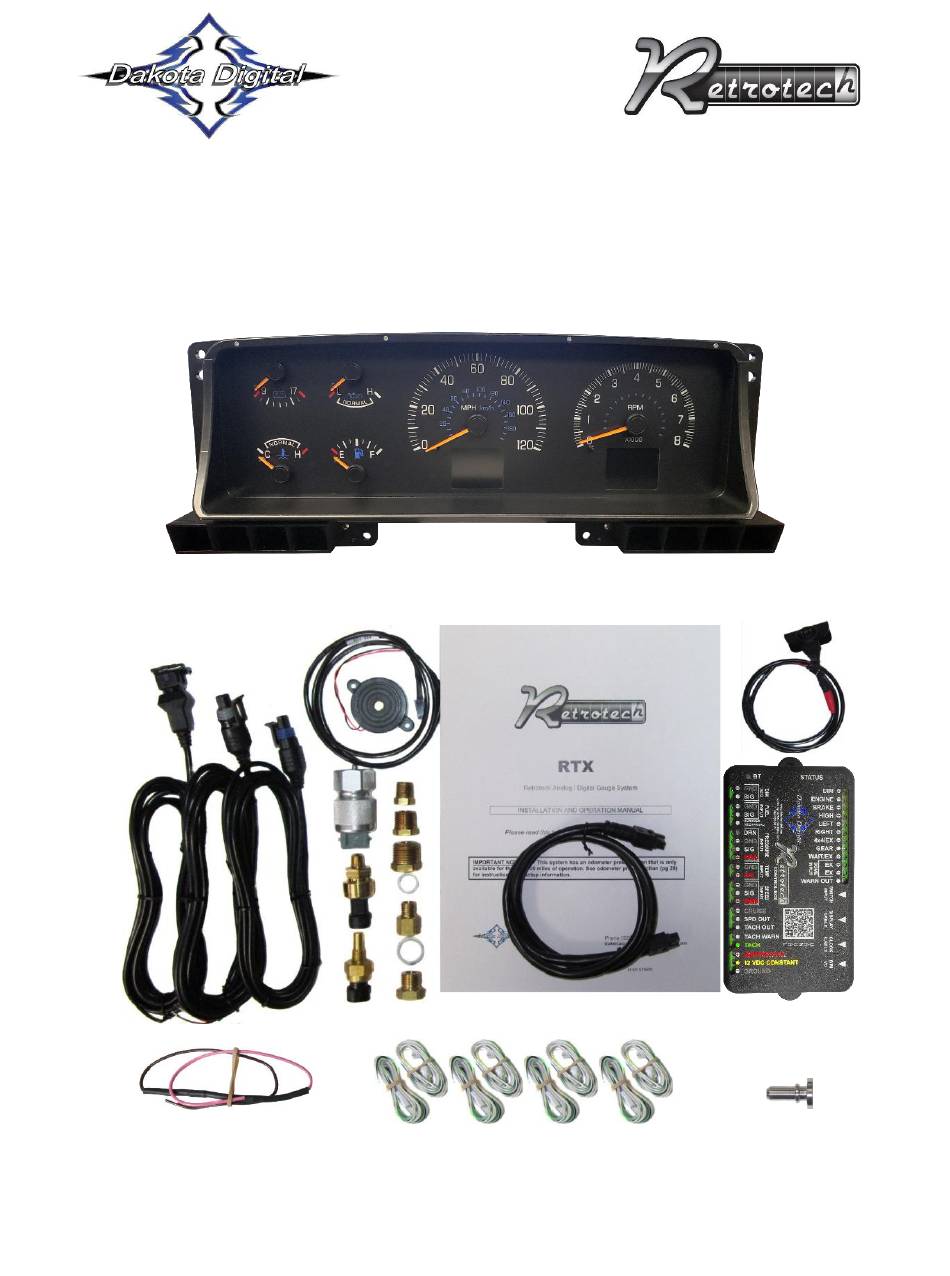

Dakota Digital RTX Instrument Installation

For 1987-1991 Ford Full-Size Pickup & Bronco

Your new RTX-87F-PU kit includes:

RTX Display

Switch

Universal Sender Pack

Buzzer

Assembly

Installation Manuals

36" Main Harness

Control Box

Alternator Load Harness

Speed Sensor Plug

8x Indicator Harness

(Used with Three-Wire Alternators)

Manual # 650853

Need help?

Do you have a question about the Retrotech RTX-87F-PU and is the answer not in the manual?

Page 1 RTX-87F-PU Dakota Digital RTX Instrument Installation For 1987-1991 Ford Full-Size Pickup & Bronco Your new RTX-87F-PU kit includes: RTX Display Switch Universal Sender Pack Buzzer Assembly Installation Manuals 36” Main Harness Control Box Alternator Load Harness Speed Sensor Plug 8x Indicator Harness...
Page 2 Installation 1. Disassemble the dash in standard order. Make sure to retain all original screws for reassembly. Remove the four screws retaining the factory instrument cluster. Gently remove the original instruments and set aside. 2. Connect the 36” Main Harness to the back of the RTX system. Carefully route the open end of the harness to the desired control box mounting location.
Page 3 4. Using the four original mounting screws, fasten the RTX display into the dash. 5. Reassemble the dash in reverse order. Refer to the main RTX manual for control box wiring and setup instructions. 6. Stock 3-Wire alternators may need an additional wiring connection at the gauge cluster connector.
Page 4 WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov Manual # 650853...
