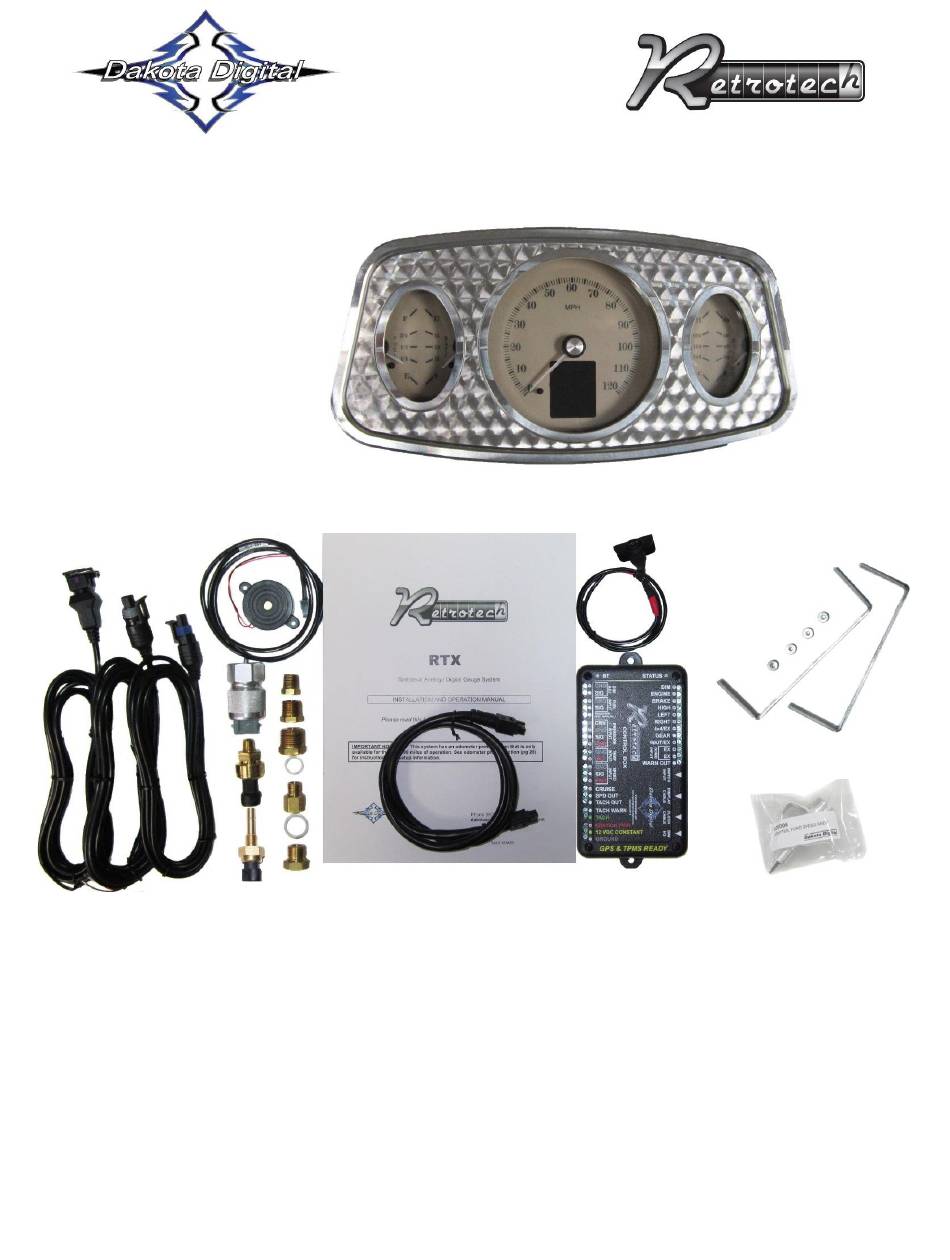

Your new RTX-33F kit includes:

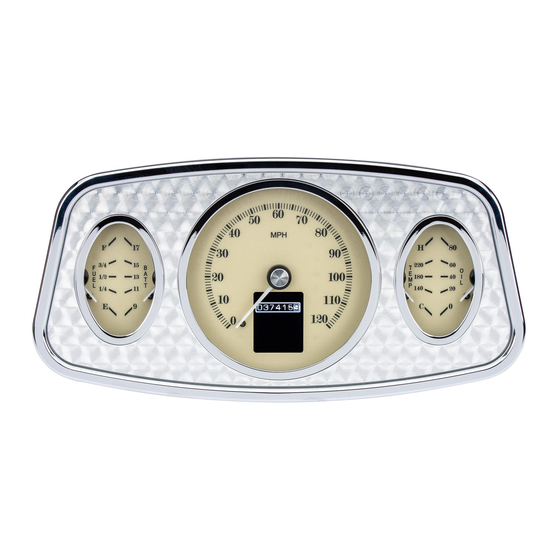

RTX Display
Universal Sender Pack
Installation
1. Use the provided template to mark out the opening needed to fit the RTX display. Ensure there is
adequate clearance behind the desired mounting location. The display unit needs approximately two
inches of depth behind the dash.
RTX-33F
Dakota Digital RTX Instrument Installation
For 1933-34 Ford Car
Installation Manuals
and Cutout Template
Main Harness
Switch Assembly
(2x) U-Brackets
(4x) Thumb Nuts
Control Box
Ford Adapter
Manual # 650730
