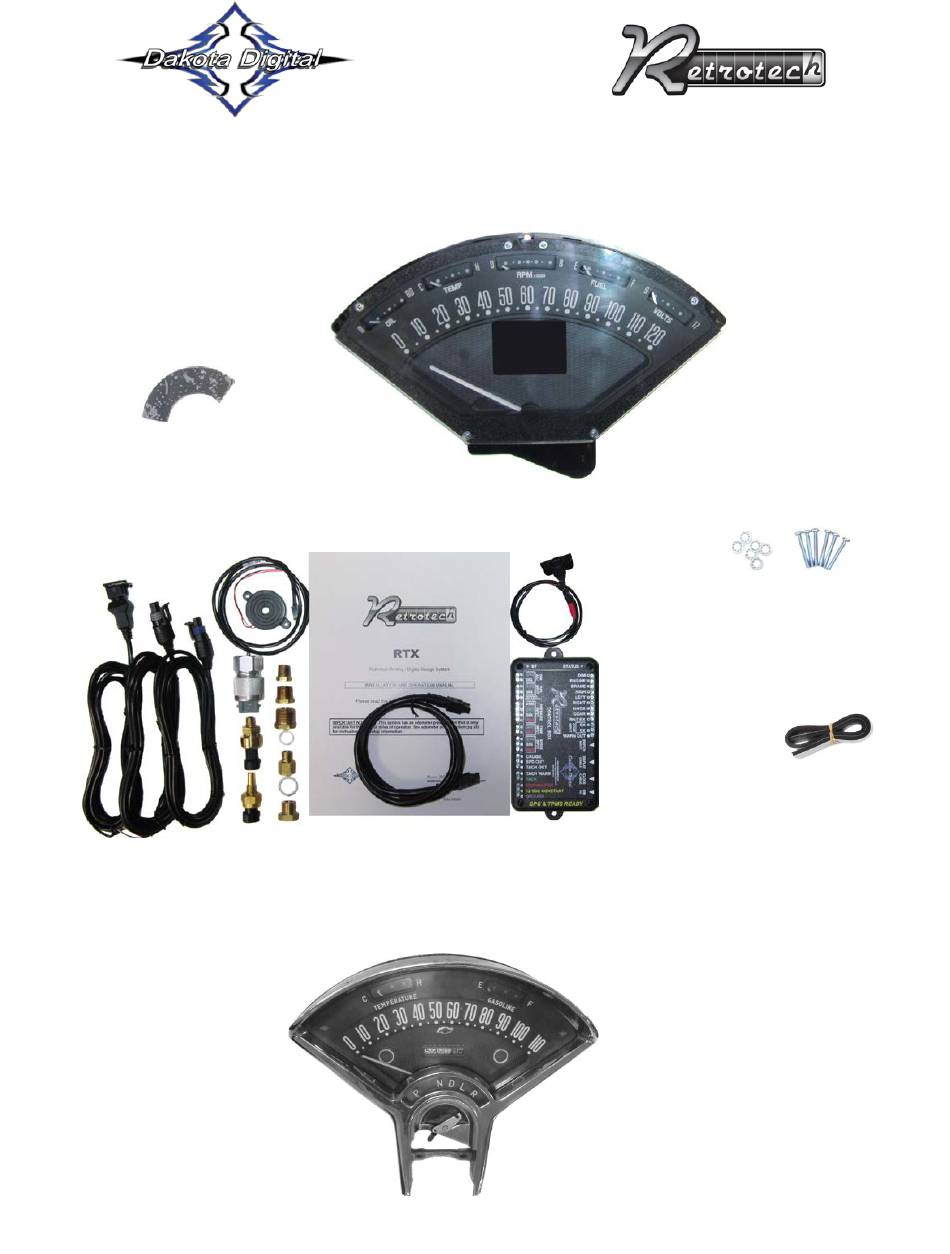

Your new RTX-55C kit includes:
Block Off Lens
(For Automatic Bezels)
Universal Sender
Pack
Installation
1. Remove the stock instrument cluster from the car.

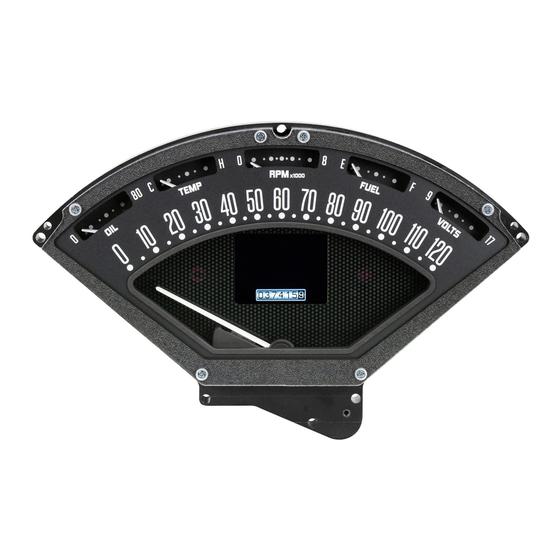

Dakota Digital RTX Instrument Installation
For 1955-'56 Chevy car
Buzzer
Installation Manuals
Main Harness
RTX-55C
Switch Assembly
Control Box
RTX Display
6x Lock Washers
6x Screws
Foam Tape
Manual # 650641
Advertisement
Related Manuals for Dakota Digital RTX-55C
Summary of Contents for Dakota Digital RTX-55C
- Page 1 RTX-55C Dakota Digital RTX Instrument Installation For 1955-‘56 Chevy car Your new RTX-55C kit includes: RTX Display Block Off Lens (For Automatic Bezels) 6x Lock Washers Universal Sender 6x Screws Buzzer Pack Installation Manuals Switch Assembly Foam Tape Control Box...
- Page 2 2. Remove the six screws holding the gauges to the bezel from the back of the system, so the stock gauges, separator plate, and lens can be removed. 3. For automatic applications, remove the gear position indicator and lens by removing the two screws holding it to the bezel. 4.
- Page 3 5. Next, cut the supplied foam into four small pieces, approximately 1” long, and install four foam blocks into the bezel to help prevent any rattles of the lens and bezel. The foam should sit down in the bezel and adhere to the outer edge, sticking up about 1/8” so it will compress against the lens once the system is installed.
- Page 4 8. Re-install the gauge cluster to the dash using the factory hardware and refer to the main manual for wiring instructions to complete the RTX installation. WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm.
