VHX-69F-MUS

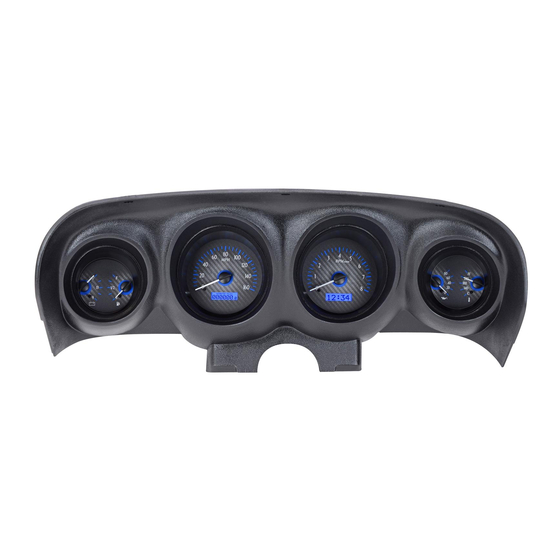

Dakota Digital VHX Instrument Installation

For 1969-'70 Ford Mustang

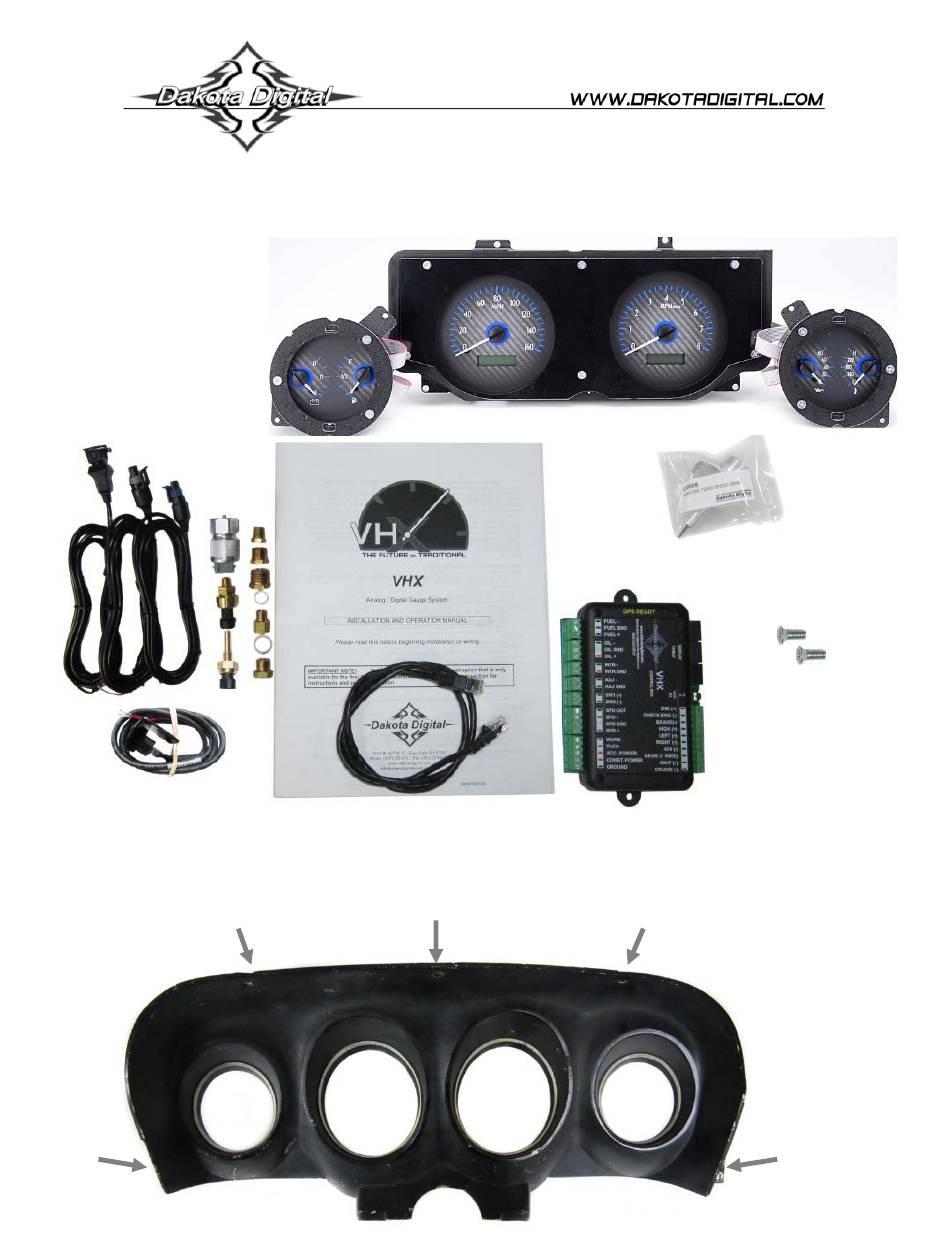

Your new VHX-69F-MUS kit includes:

VHX Display

Universal

Sender Pack

Ford

Speed Adapter

Installation

Manuals

(2) 6-20 x ¾"

Counter Sunk

screws

Control Box

CAT5 Cable

Installation

1. Remove the instrument system from the dashboard. Be sure to save the hardware for reassembly.

Manual # 650393A

Table of Contents

Do you have a question about the VHX Series and is the answer not in the manual?

Page 1 VHX-69F-MUS Dakota Digital VHX Instrument Installation For 1969-‘70 Ford Mustang Your new VHX-69F-MUS kit includes: VHX Display Universal Sender Pack Ford Speed Adapter Installation Manuals (2) 6-20 x ¾” Counter Sunk screws Control Box CAT5 Cable Installation 1. Remove the instrument system from the dashboard. Be sure to save the hardware for reassembly.
Page 2 2. Remove the stock gauge cluster from the bezel and save the three separator pieces and the hardware for reassembly. 3. Reinstall the three separator pieces onto the bezel. 4. Align the VHX system on the separator pieces and use the stock hardware to secure to the bezel.
Page 3 5. With the VHX system mounted to the bezel, the cluster should be secure on all sides with no movement. 7. Connect the ribbon cables with the appropriate labeled connector (black arrows) and also connect the CAT5 cable to the system (white arrow). As the assembled cluster is installed into the dash, take care when routing this cable to the control box to prevent damage.
Page 4 8. Reinstall the cluster into the vehicle using the original hardware and refer to the main manual for wiring instructions to complete the VHX installation. WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm.
