RTX-47C-PU

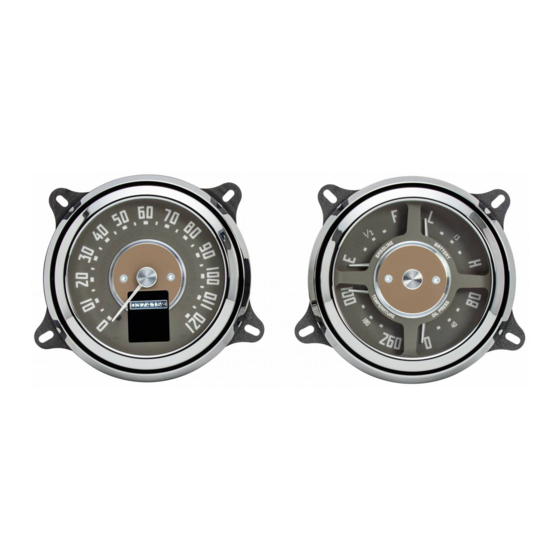

Dakota Digital RTX Instrument Installation

For 1947-'53 Chevy Pickups

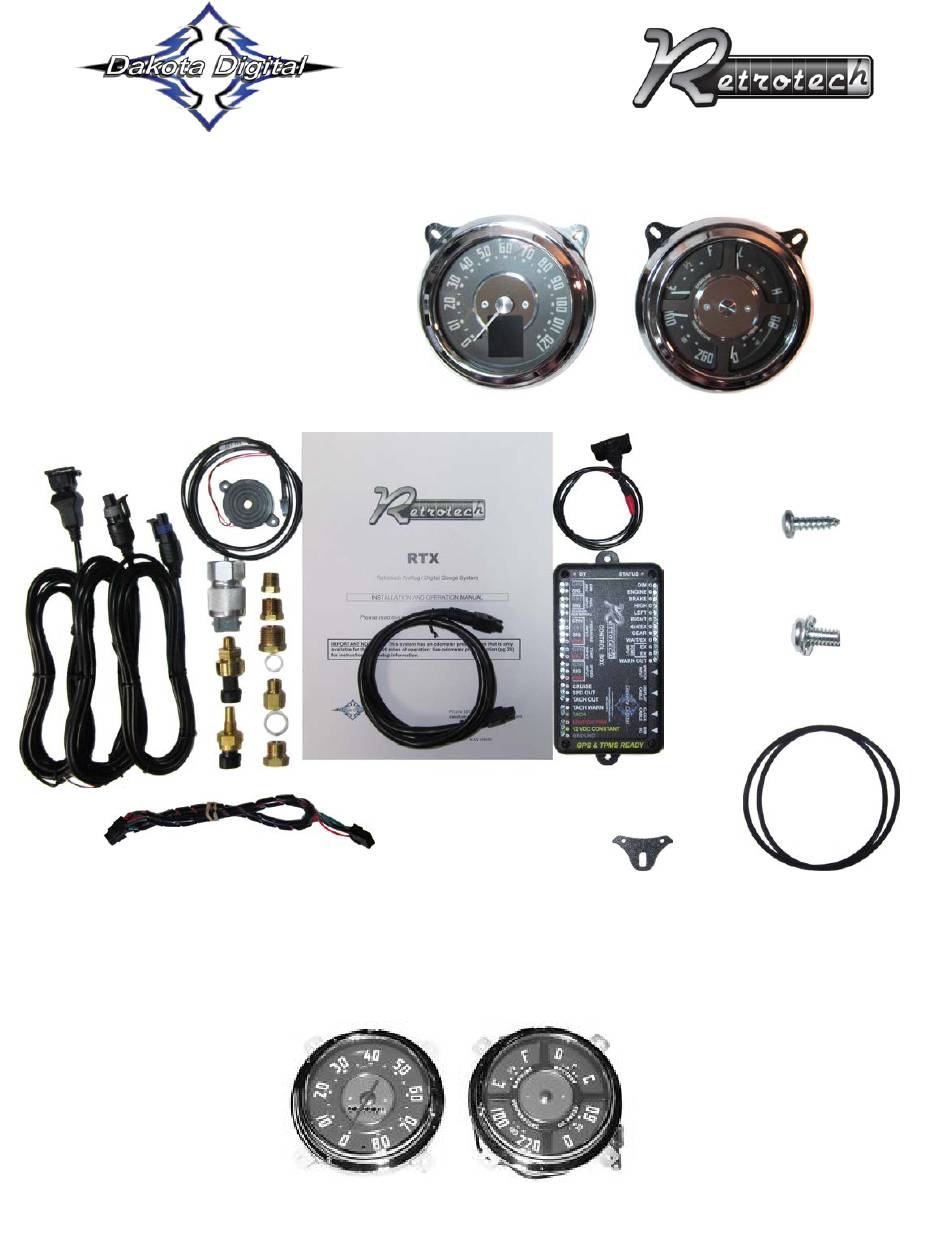

Your new RTX-47C-PU kit includes:

RTX Display

Universal Sender

Switch Assembly

Buzzer

Pack

4x Thread Cutting

Installation Manuals

Screws

4x Machine Screws

Foam Gaskets

Main Harness

Control Box

4X Mounting Tabs

Interconnect Harness

Installation

1. Remove the stock gauges from the dash. Each gauge is held in place by four nuts on studs on

the back of the dash. Save the nuts as they will be re-used to secure the new RTX kit.

Manual # 650674

Page 1 RTX-47C-PU Dakota Digital RTX Instrument Installation For 1947-‘53 Chevy Pickups Your new RTX-47C-PU kit includes: RTX Display Universal Sender Switch Assembly Buzzer Pack 4x Thread Cutting Installation Manuals Screws 4x Machine Screws Foam Gaskets Main Harness Control Box 4X Mounting Tabs...
Page 2 2. Your RTX kit comes with two variations for lower mounting tab locations, choose the location you need by aligning the four mounting tabs to the studs in the dash. Once the correct mounting location is decided; secure the tab to the housing by lining up the thru-holes in the tab to the holes in the housing and using the four (4) supplied thread cutting screws for the Speedometer and the four (4) machine screws for the Auxiliary gauge.
Page 3 5. Connect the provided interconnect harness to the back of the RTX system. 6. Connect the provided main harness and the buzzer (optional for audio feedback) to the back of the RTX system. Main Harness Buzzer Connecter Manual # 650674...
Page 4 7. Refer to the main manual for wiring instructions to complete the RTX installation. WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov Manual # 650674...
