Dakota Digital Retrotech RTX-66F-BRO Instrument Installation

For 1966-77 ford bronco; 1961-66 ford pickup

Download this manual

RTX-66F-BRO

Dakota Digital RTX Instrument Installation

For 1966-'77 Ford Bronco

For 1961-'66 Ford Pickup

Your new RTX-66F-BRO kit includes:

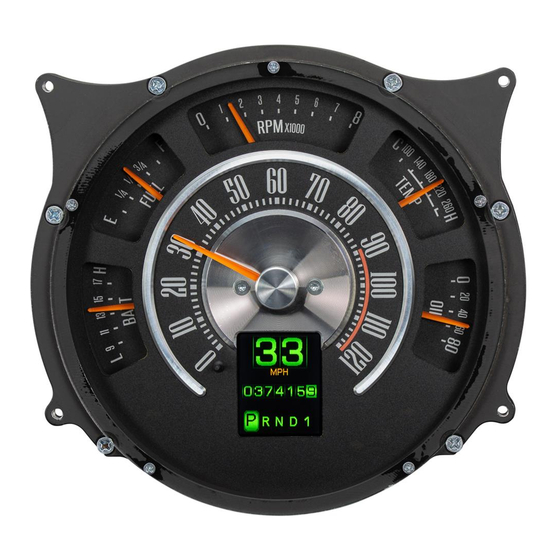

RTX Display

(4) ½" Screws

Universal Sender

Pack

Buzzer

Installation Manuals

Switch Assembly

Ford Speed Adapter

Main Harness

Control Box

Installation

1. Remove the stock gauge cluster from the dash.

Manual # 650681

Need help?

Do you have a question about the Retrotech RTX-66F-BRO and is the answer not in the manual?

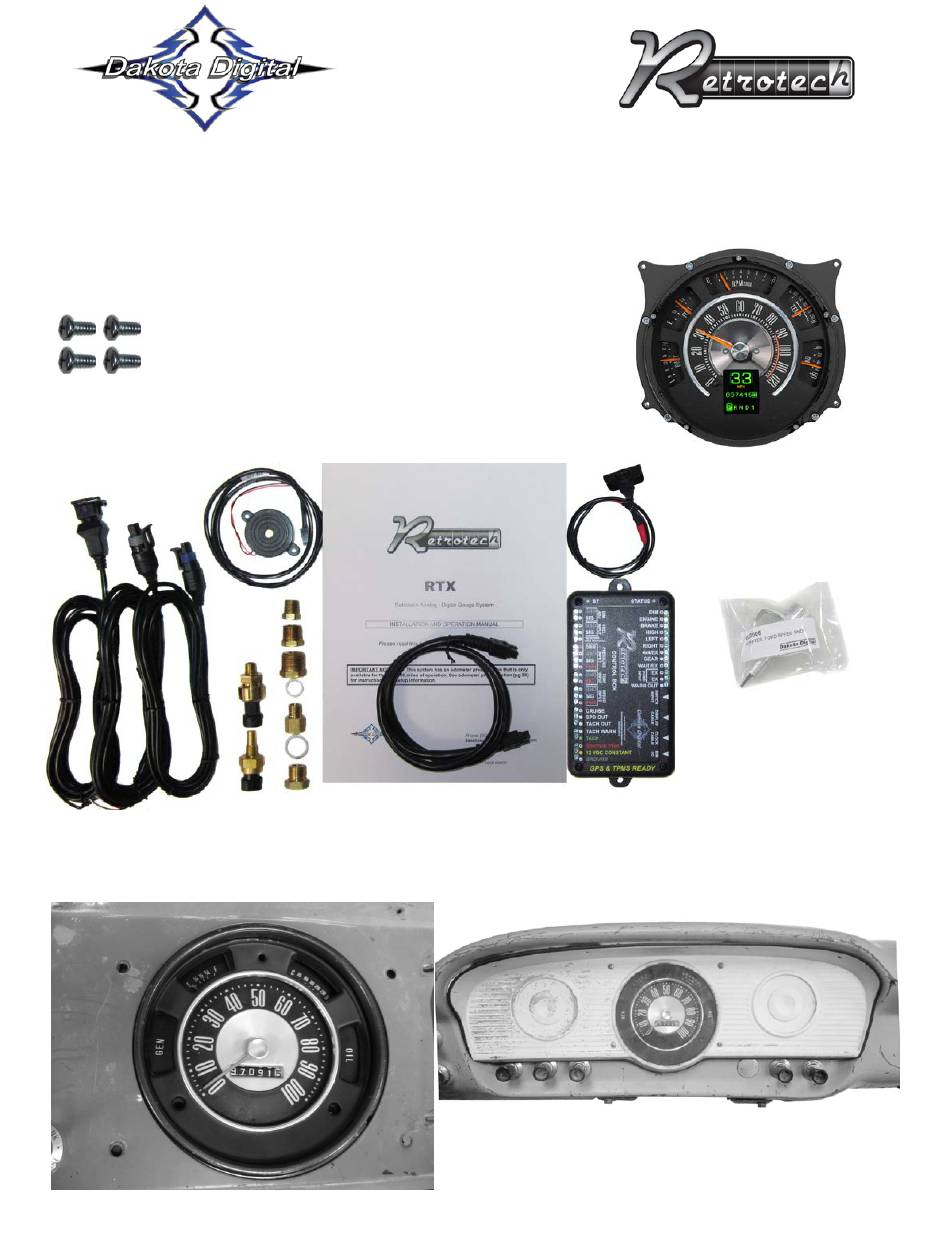

Page 1 RTX-66F-BRO Dakota Digital RTX Instrument Installation For 1966-‘77 Ford Bronco For 1961-‘66 Ford Pickup Your new RTX-66F-BRO kit includes: RTX Display (4) ½” Screws Universal Sender Pack Buzzer Installation Manuals Switch Assembly Ford Speed Adapter Main Harness Control Box Installation 1.
Page 2 2. Remove these four screws to separate the bezel from the gauges. 3. The only part that will be re-used is the stamped bezel and the screws that mount the bezel. Manual # 650681...
Page 3 4. Secure the RTX system to the bezel with the four supplied screws. The RTX system should align tightly and sit flush with the bezel. 5. Connect the provided harness and the buzzer (optional for audio feedback) to the back of the RTX system.
Page 4 6. Re-install the cluster into the vehicle and refer to the main manual for wiring instructions to complete the RTX installation. WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov Manual # 650681...
