HDX-96J-TJ
Dakota Digital HDX Instrument Installation
For 1996-2003 Jeep Wrangler TJ
Also Fits 1997-2001 Jeep Cherokee XJ

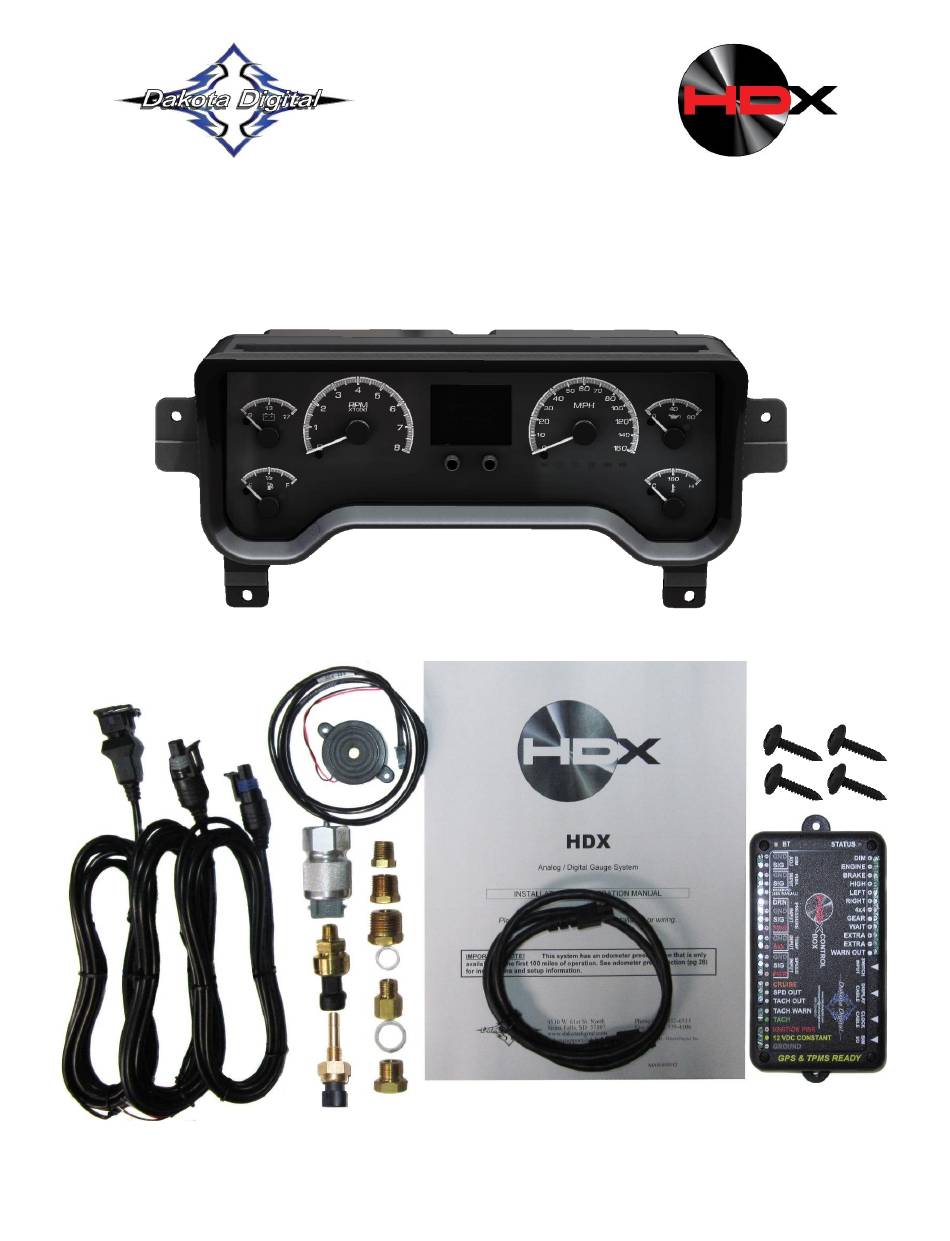

Your new HDX-96J-TJ kit includes:

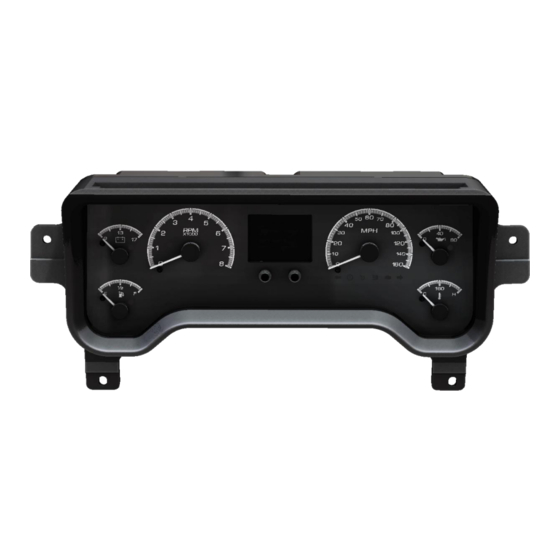

HDX Display
Buzzer
Installation Manuals
4x #8 x 1"
Sheet Metal
Universal Sender Pack
Screws
Control Box
36" Main Harness
Manual # 650789
Advertisement
Related Manuals for Dakota Digital HDX-96J-TJ
Summary of Contents for Dakota Digital HDX-96J-TJ
- Page 1 HDX-96J-TJ Dakota Digital HDX Instrument Installation For 1996-2003 Jeep Wrangler TJ Also Fits 1997-2001 Jeep Cherokee XJ Your new HDX-96J-TJ kit includes: HDX Display Buzzer Installation Manuals 4x #8 x 1” Sheet Metal Universal Sender Pack Screws Control Box 36” Main Harness...
- Page 2 Installation 1. Remove the dash trim and instrument shroud by removing the screws highlighted below. Retain these original fasteners for reassembly. Note: Disassembly for ’97-2001 Jeep Cherokee dashes will differ from below. Dash Trim Shroud Top Shroud Bottom Note: The clip-in trim strip with vent along the top of the dash will also need to be removed. 2.
- Page 3 4. After removing the protective film, carefully insert the new HDX system into the dash. Fasten the system to the original mounting locations using the four provided #8 x 1” Sheet Metal Screws . Reassemble the dash shroud and trim in reverse order using the fasteners retained in step one. 5.
