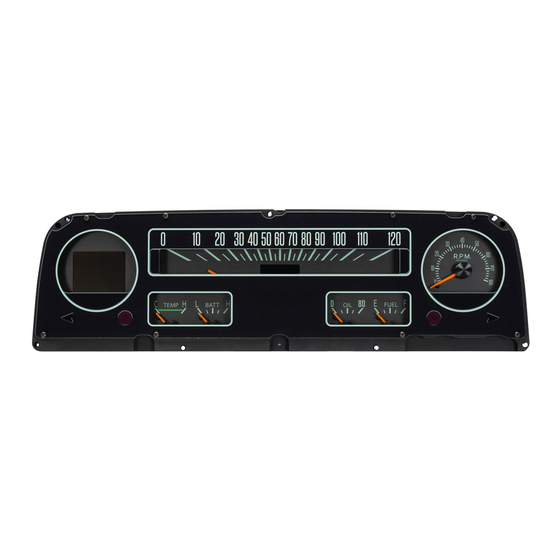

RTX-64C-PU
Dakota Digital RTX Instrument Installation
For 1964-'66 Chevy Pickups

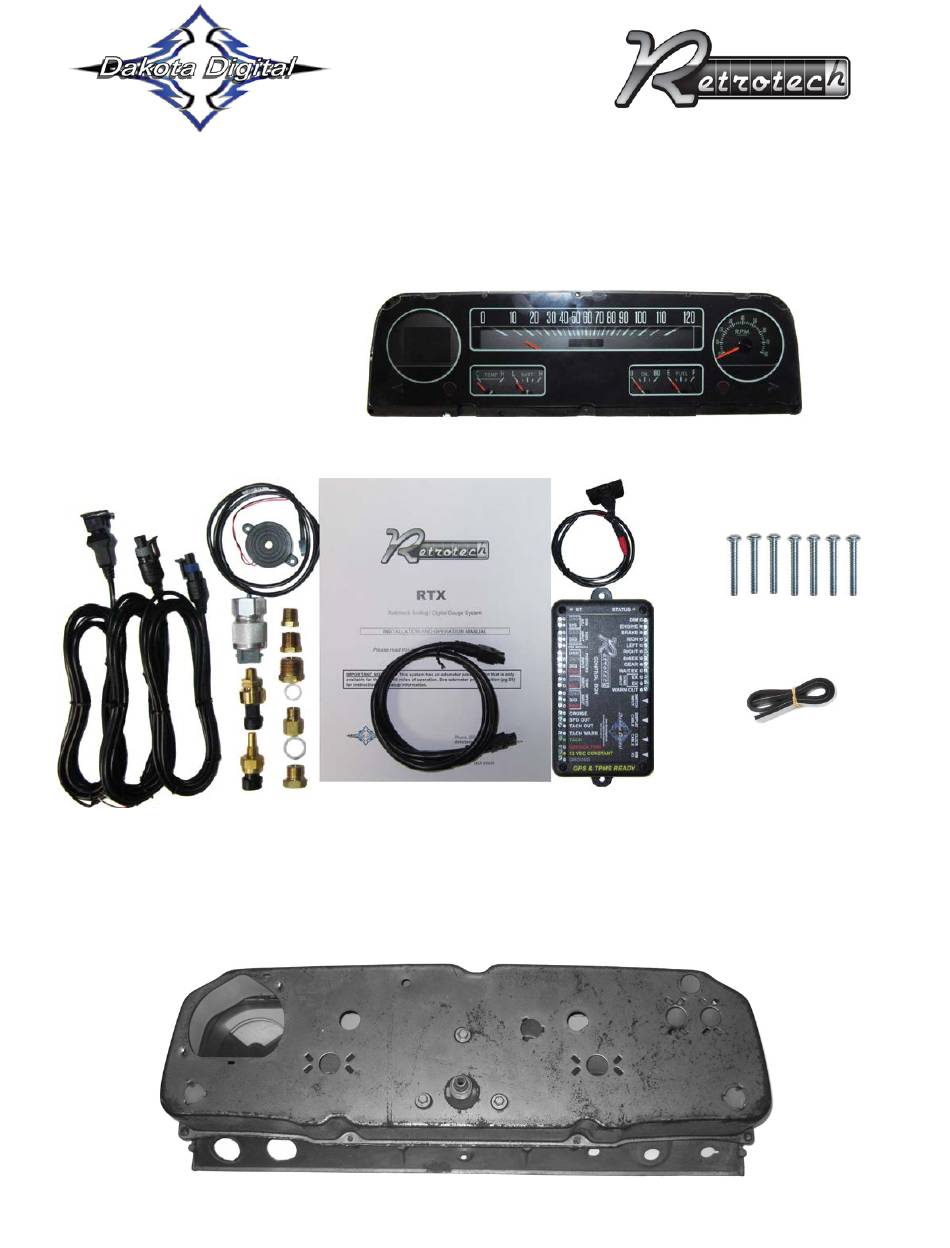

Your new RTX-64C-PU kit includes:
RTX Display
Universal Sender
Pack
Buzzer
Installation Manuals
Switch Assembly
7x Screws
Foam Tape
Control Box
Main Harness
Installation
1. Remove the stock gauge cluster from the dash.
Manual # 650668
Advertisement
Related Manuals for Dakota Digital Retrotech RTX-64C-PU
Summary of Contents for Dakota Digital Retrotech RTX-64C-PU
- Page 1 RTX-64C-PU Dakota Digital RTX Instrument Installation For 1964-‘66 Chevy Pickups Your new RTX-64C-PU kit includes: RTX Display Universal Sender Pack Buzzer Installation Manuals Switch Assembly 7x Screws Foam Tape Control Box Main Harness Installation 1. Remove the stock gauge cluster from the dash.
- Page 2 2. Remove the stock gauges, separator plate, and lens from the bezel. The only item to be reused is the original front bezel; the other pieces can be set aside. Cut the supplied foam tape into six pieces, so each is about two inches long. Stick the foam strips on the angled part of the inside edge of the bezel.
- Page 3 4. Connect the provided harness and the buzzer (optional for audio feedback) to the back of the RTX system. Buzzer Connector 5. Re-install the cluster into the truck and refer to the main manual for wiring instructions to complete the RTX installation. WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm.
