RTX-68D-CHG
Dakota Digital RTX Instrument Installation
For 1968-70 Dodge Charger, Super Bee, 1969-70 Coronet R/T, 1970 Plymouth GTX, Road Runner

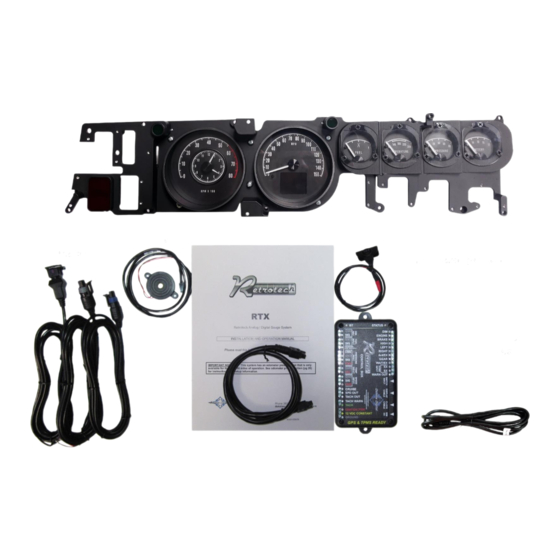

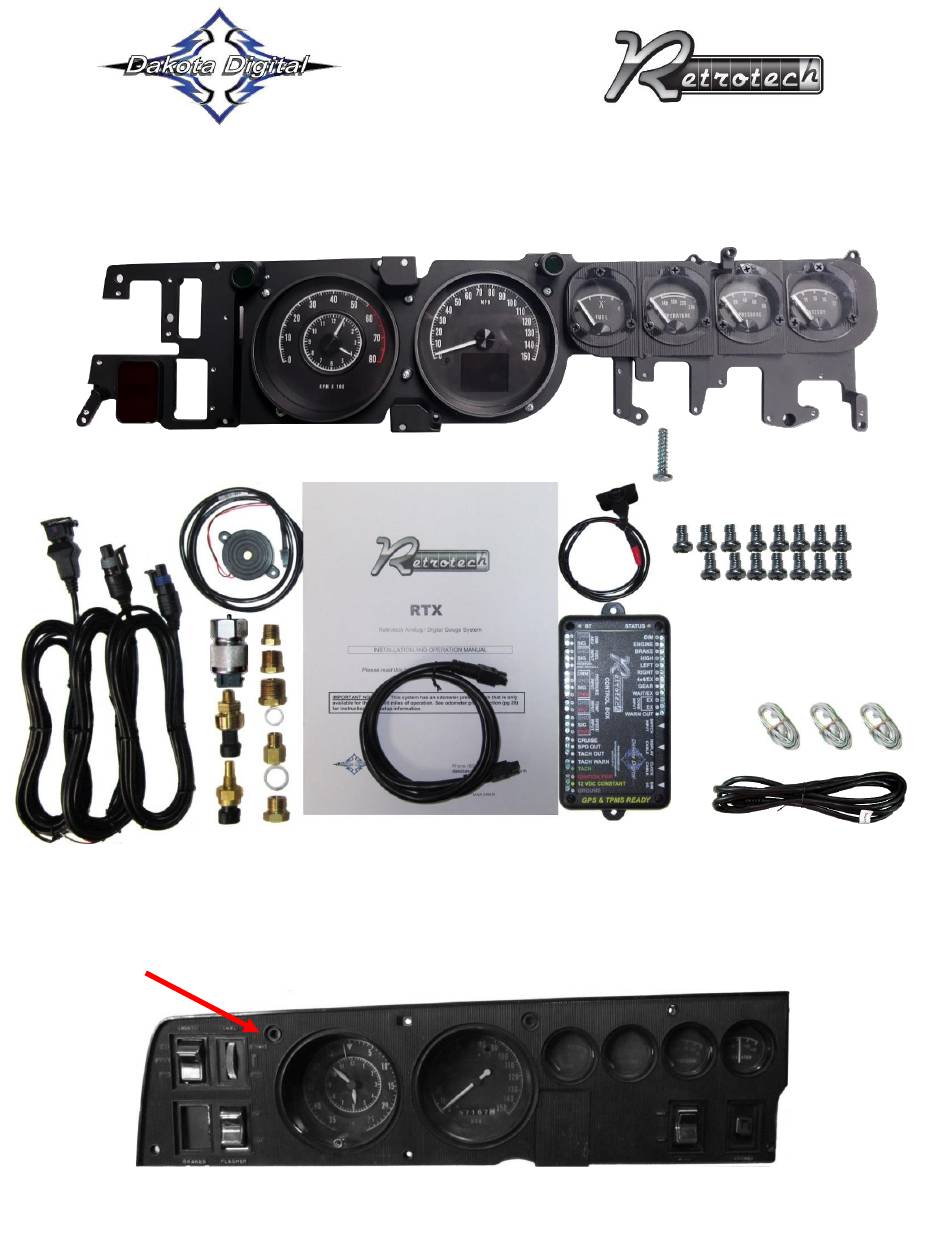

Your new RTX-68D-CHG kit includes:
RTX Display
(1) 7/8" Length Screw
Switch
Universal Sender
Buzzer
Installation Manuals
Pack
(15) 1/4" Length Screws
(3) Indicator
Harnesses
Main Harness
Control Box
Clock Harness
Installation
1. Remove the stock gauge cluster from the dash. Retain all factory hardware for reassembly.
Manual # 650744A
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Dakota Digital Retrotech RTX-68D-CHG
Summary of Contents for Dakota Digital Retrotech RTX-68D-CHG
- Page 1 RTX-68D-CHG Dakota Digital RTX Instrument Installation For 1968-70 Dodge Charger, Super Bee, 1969-70 Coronet R/T, 1970 Plymouth GTX, Road Runner Your new RTX-68D-CHG kit includes: RTX Display (1) 7/8” Length Screw Switch Universal Sender Buzzer Installation Manuals Pack (15) 1/4” Length Screws...
- Page 2 2. Remove the bezel from the stock gauge cluster by removing the nine (9) screws shown in blue arrows and retain the hardware for reassembly. Also remove and retain all gauge panel switches shown in red arrows. Remove and retain the screws for the switches indicated by green arrows.
- Page 3 5. This system comes with two options for the turn signals and brake indicator. You can have the indicators located in the faceplate of the RTX display, and/or arrows in the vehicle’s stock locations. To use the new faceplate arrows, follow the wiring instructions found in the main RTX manual. To optionally use the stock locations, do not wire the turn signals to the RTX control box.
- Page 4 7. Re-install the gauge cluster to the dash using the factory hardware and refer to the main manual for wiring instructions to complete the RTX installation. WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm.
