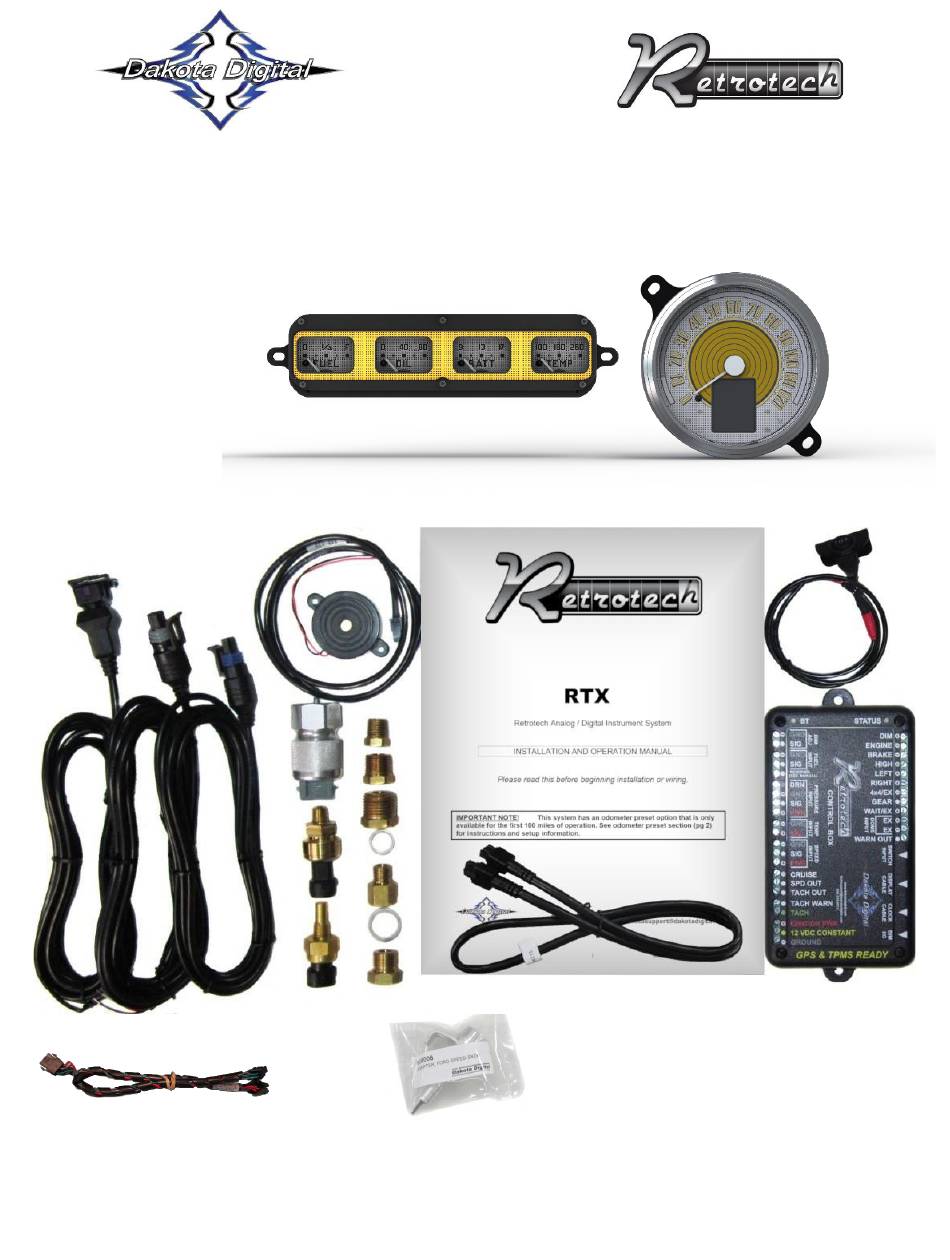

RTX-42F
Dakota Digital RTX Instrument Installation
For 1942-'48 Ford Car
Your new RTX-42F kit includes:

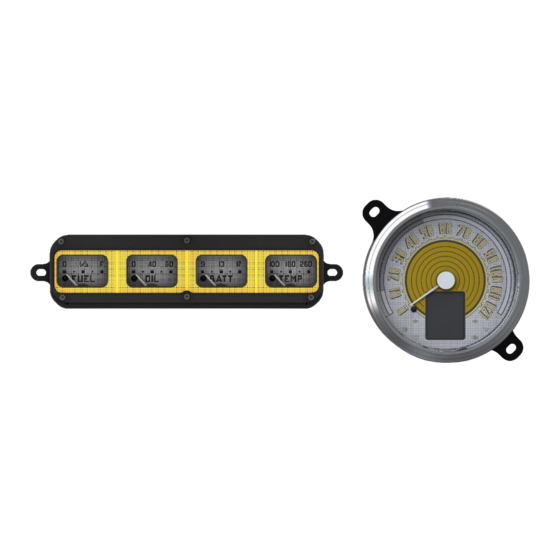

RTX Displays
Buzzer
Switch Assembly
Installation Manuals
Universal Sender Pack
Main Harness
Control Box
Interconnect
Ford Sender Adaptor
Harness
Manual # 650774
Advertisement
Related Manuals for Dakota Digital Retrotech RTX-42F
Summary of Contents for Dakota Digital Retrotech RTX-42F
- Page 1 RTX-42F Dakota Digital RTX Instrument Installation For 1942-‘48 Ford Car Your new RTX-42F kit includes: RTX Displays Buzzer Switch Assembly Installation Manuals Universal Sender Pack Main Harness Control Box Interconnect Ford Sender Adaptor Harness Manual # 650774...
- Page 2 Installation 1. Remove the original gauges from the back side of the dash, retaining the original mounting hardware for RTX display installation. 2. Insert the two new RTX displays into the dash from behind. Align and center the display faces before using stock hardware to secure the housings to the dash.
- Page 3 3. Connect the two installed RTX displays with the included interconnect harness, then attach the provided main harness to the interconnect harness. Attach the optional included buzzer cable to the back of the RTX system. Carefully route the other end of the main harness to the control box mounting location.
