RTX-70C-CAM
Dakota Digital RTX Instrument Installation
For 1970-'81 Chevy Camaro

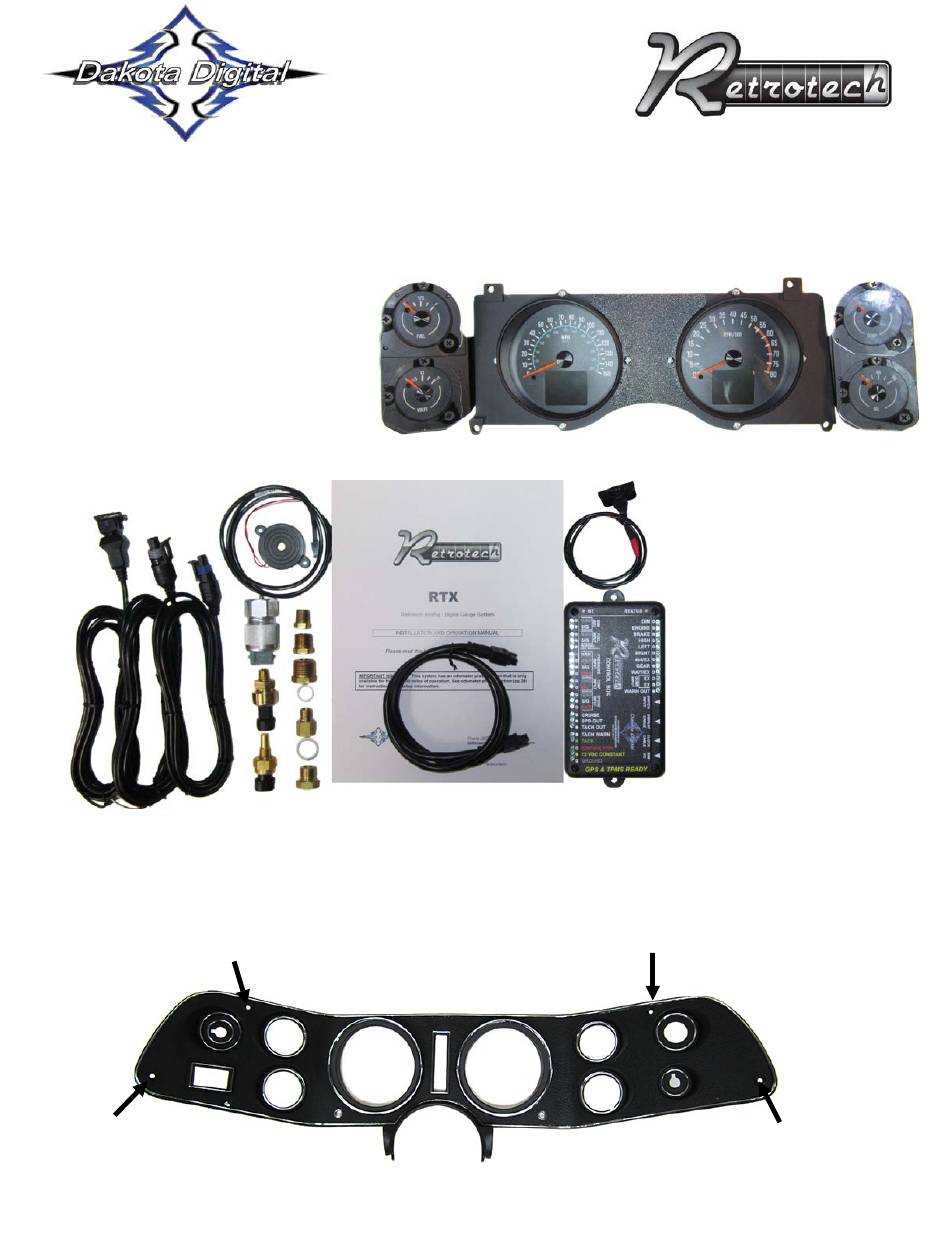

Your new RTX-70C-CAM kit includes:
RTX Display
Buzzer
Universal Sender
Switch Assembly
Pack
Installation Manuals
Control Box
Main Harness
Installation
1. First remove the four screws holding the bezel to the dash. These four screws will be re-used for
re-assembly.
Manual # 650671
