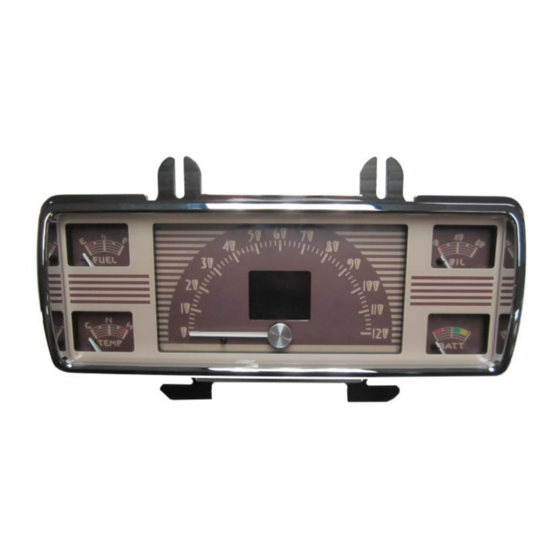

RTX-40F
Dakota Digital RTX Instrument Installation
For 1940 Ford Car
1940-'47 Ford Pickup

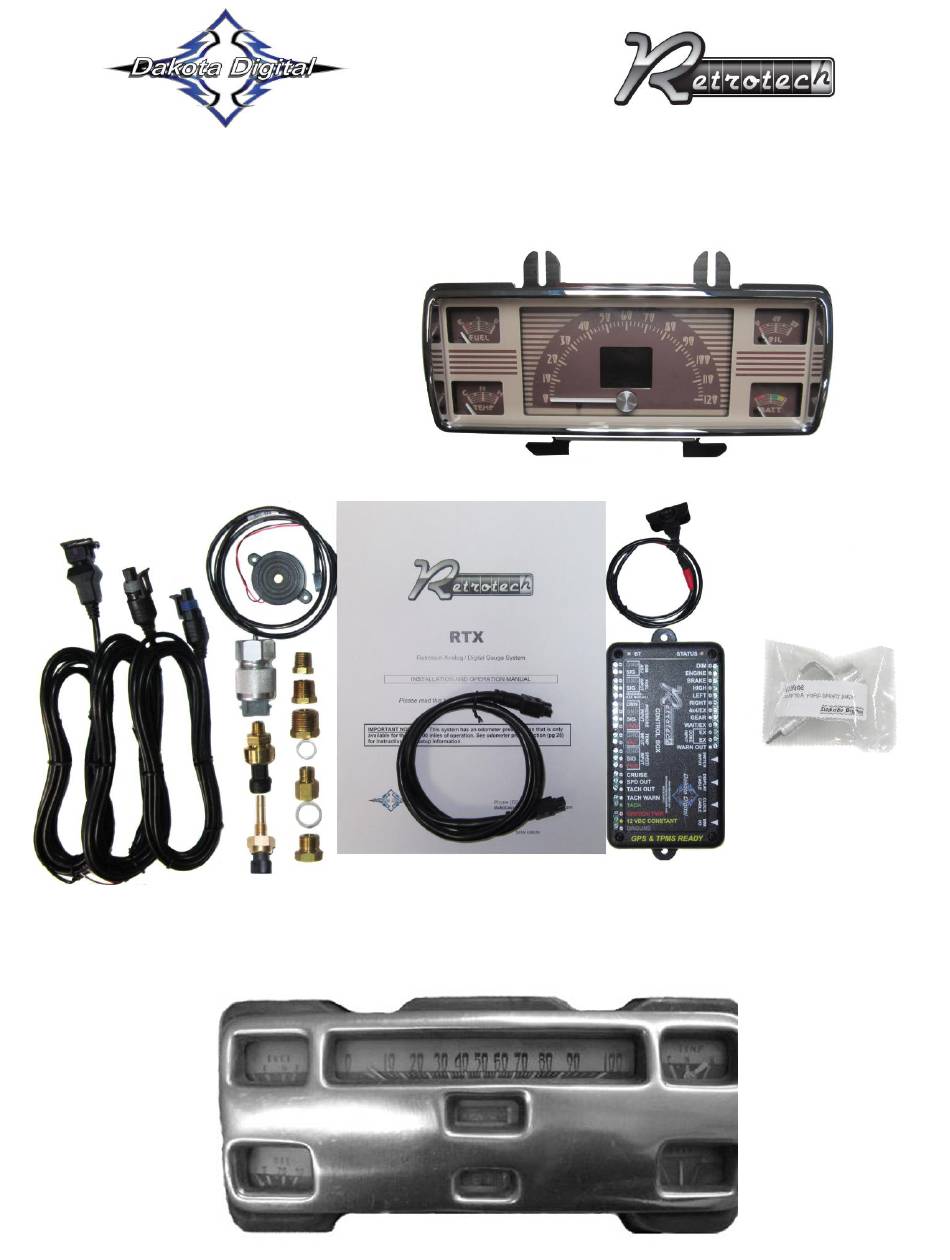

Your new RTX-40F kit includes:
RTX Display
Installation Manuals
Buzzer
Universal Sender
Pack
Switch
assembly
Ford Speed Adapter
Main Harness
Control Box
Installation
1. Remove the stock gauge cluster from the dash. The mounting hardware will be re-used.
Manual # 650699
Advertisement
Related Manuals for Dakota Digital Retrotech RTX-40F
Summary of Contents for Dakota Digital Retrotech RTX-40F
- Page 1 RTX-40F Dakota Digital RTX Instrument Installation For 1940 Ford Car 1940-’47 Ford Pickup Your new RTX-40F kit includes: RTX Display Installation Manuals Buzzer Universal Sender Pack Switch assembly Ford Speed Adapter Main Harness Control Box Installation 1. Remove the stock gauge cluster from the dash. The mounting hardware will be re-used.
- Page 2 2. From the rear of the dash; insert the RTX system into the opening and securely mount using the stock hardware from disassembly 3. Connect the provided harness and the buzzer (optional for audio feedback) to the back of the RTX system.
