RTX-53F-PU
Dakota Digital RTX Instrument Installation
For 1953-55 Ford Pickup

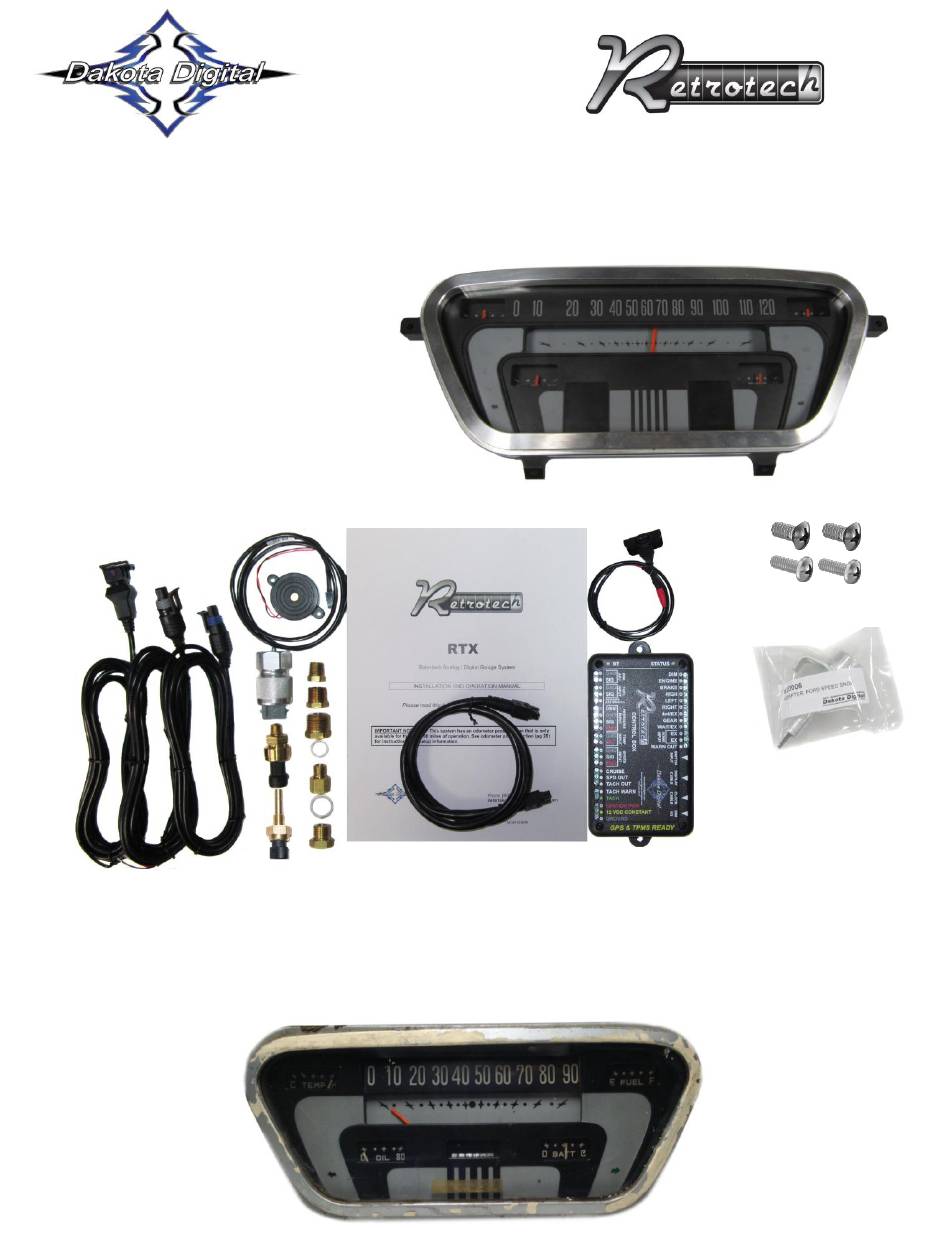

Your new RTX-53F-PU kit includes:
RTX Display
Universal Sender
Switch
Buzzer
Installation Manuals
Mounting screws
Pack
assembly
Ford Speed Adapter
Control Box
Main Harness
Installation
1. Remove the stock gauges from the dash by removing the four screws securing the gauges to the
dash.
Manual # 650728
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Dakota Digital RTX-53F-PU
Summary of Contents for Dakota Digital RTX-53F-PU
- Page 1 RTX-53F-PU Dakota Digital RTX Instrument Installation For 1953-55 Ford Pickup Your new RTX-53F-PU kit includes: RTX Display Universal Sender Switch Buzzer Installation Manuals Mounting screws Pack assembly Ford Speed Adapter Control Box Main Harness Installation 1. Remove the stock gauges from the dash by removing the four screws securing the gauges to the dash.
- Page 2 2. From the rear of the dash; insert the RTX system into the opening and securely mount using the four 10-24 screws provided. The two (2) counter sunk screws are for the upper two locations and the two (2) pan heads are for the lower two locations. 3.
