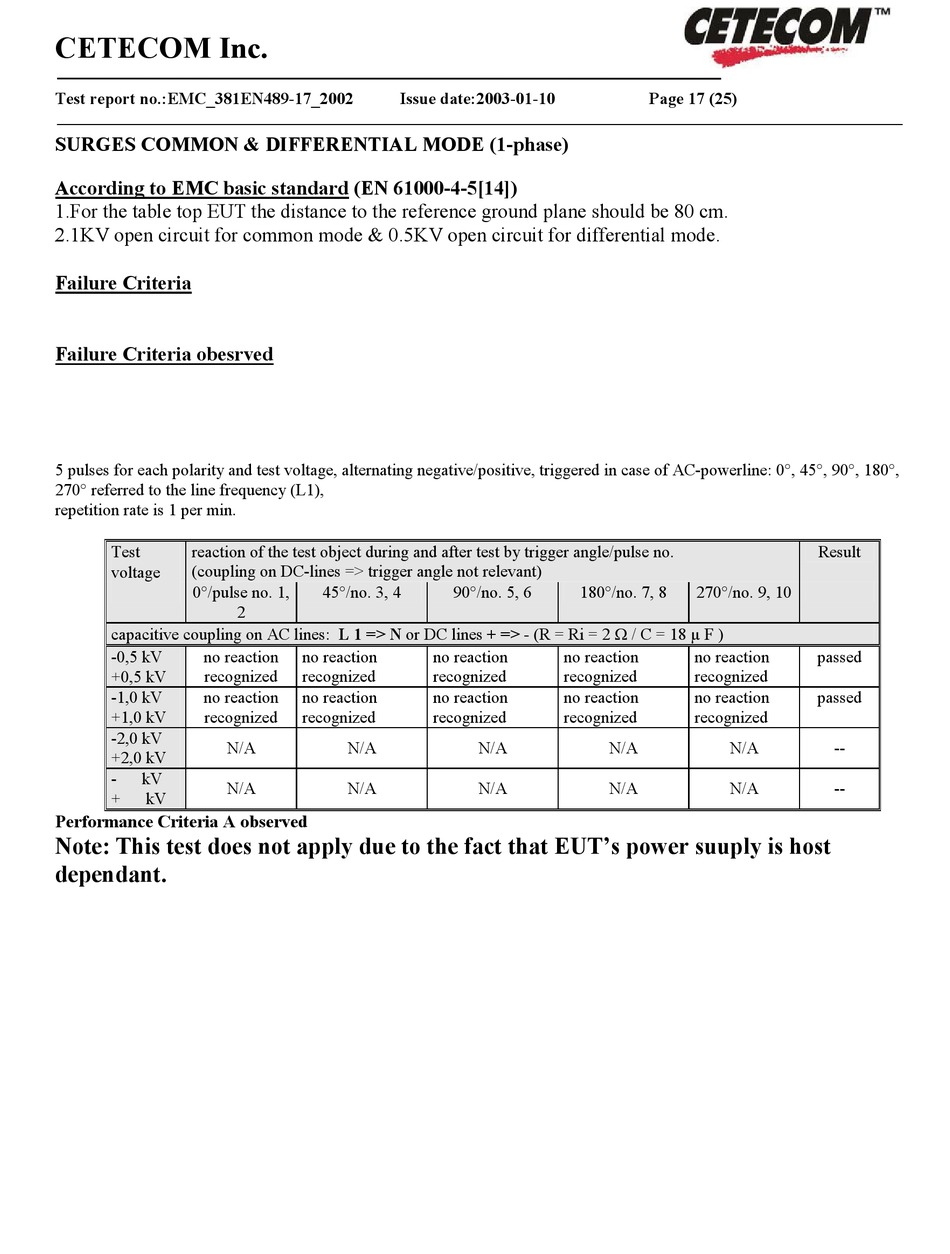

CETECOM Inc.
Test report no.:EMC_381EN489-17_2002
SURGES COMMON & DIFFERENTIAL MODE (1-phase)
According to EMC basic standard (EN 61000-4-5[14])
1.For the table top EUT the distance to the reference ground plane should be 80 cm.
2.1KV open circuit for common mode & 0.5KV open circuit for differential mode.
Failure Criteria
Failure Criteria obesrved
5 pulses for each polarity and test voltage, alternating negative/positive, triggered in case of AC-powerline: 0°, 45°, 90°, 180°,
270° referred to the line frequency (L1),
repetition rate is 1 per min.
Test
reaction of the test object during and after test by trigger angle/pulse no.
voltage
(coupling on DC-lines => trigger angle not relevant)
0°/pulse no. 1,
capacitive coupling on AC lines: L 1 => N or DC lines + => - (R = Ri = 2 W / C = 18 µ F )
-0,5 kV
no reaction
+0,5 kV
recognized
-1,0 kV
no reaction
+1,0 kV
recognized
-2,0 kV
N/A
+2,0 kV
-
kV
N/A
+
kV
Performance Criteria A observed
Note: This test does not apply due to the fact that EUT's power suuply is host
dependant.
Issue date:2003-01-10
45°/no. 3, 4
2
no reaction
recognized
no reaction
recognized
N/A
N/A
90°/no. 5, 6
180°/no. 7, 8
no reaction
no reaction
recognized
recognized
no reaction
no reaction
recognized
recognized
N/A
N/A
N/A
N/A
Page 17 (25)
Result
270°/no. 9, 10
no reaction
passed
recognized
no reaction
passed
recognized
N/A
N/A
--
--
