G710-Install-IG100 Installation Guide
•
A high-performance C3338R processor with two cores operating at 1.8 GHz.
•
One embedded universal serial bus (e-USB) module that provides 2 GB of persistent storage.
•
Secure boot.
•
Serial electrically erasable programmable read-only memory (SEEPROM) for switch identification, encryptable
SEEPROM, and secure encryptable SEEPROM.
•
24 hot-pluggable SFP+ optical transceiver slots.
•
Console port: one RS-232 (UART) for terminal access through an RJ-45.
•
Connectors:
–
One 1000Mb/s RJ-45 Ethernet connector for the management connection.
–
One external USB connector.
•
Real-time fan monitoring.
•
Real-time digital thermometers for temperature monitoring.
•
Real-time clock (RTC) with battery.
License Options
The Brocade G710 Switch uses a capacity-based Dynamic Ports on Demand (DPOD) license method and can be
purchased with 8, 16, or 24 licensed ports.
The first eight ports (0–7) are enabled by default. To enable the remaining 16 ports, you must purchase and install up to
two 8-port POD license keys. Refer to the Brocade Fabric OS Software Licensing Guide for more details.
Port-Side View of the Device

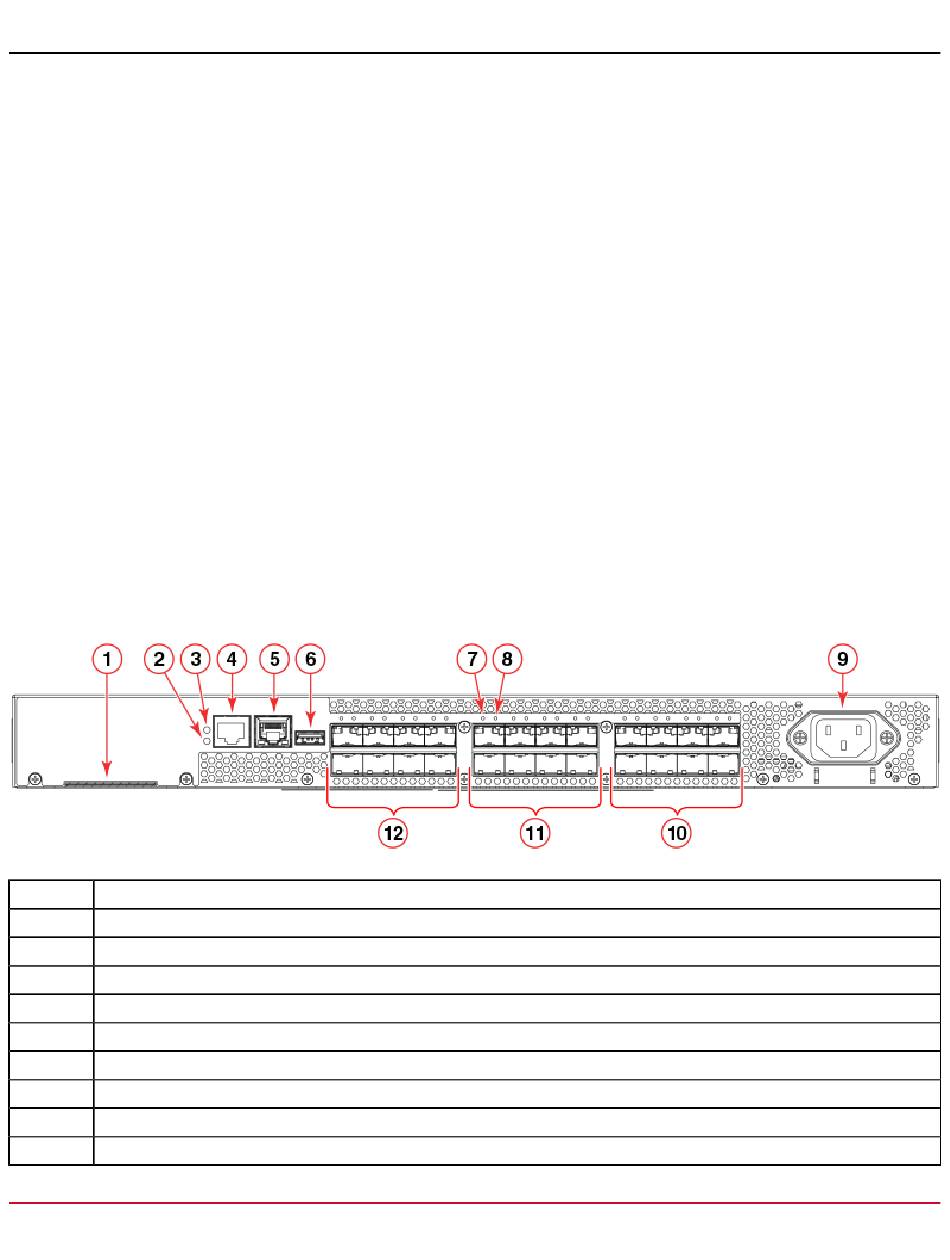

The following illustration shows the port-side view of the Brocade G710 Fibre Channel Switch.
Figure 1: Port-Side View
1. Switch ID Pull-Out Tab
2. System Status LED
3. System Power LED
4. System RS-232 Console Port (RJ-45)
5. Ethernet Port with Two Ethernet Status LEDs
6. USB Port
7. SFP+ FC Port 8 (Upper) Status LED
8. SFP+ FC Port 12 (Lower) Status LED
9. AC Power Receptacle
10. Trunk Port Group 1 (SFP+ FC Ports 16-23)
®
