Attaching the Rail to Square-Hole Rack Posts (Method B)

Perform the following steps to install the square-hole hardware using method B.
1. Position the outer slide rail inside the rack posts with the closed ends of the slide rail toward the nonport side of the
rack, as shown in the following figure.
2. Loosen and adjust the position of the nonport side L bracket as necessary.
NOTE
If side rack access is not available, measure the depth of the rack, loosen the L bracket on the nonport side,
and adjust the bracket position until the total rail length matches the rack depth.
3. Attach the L brackets to the rack posts using five Phillips 10-32 x 1/2-in. screws, six alignment washers, and two of the
three-hole rack nut bars.
NOTE
Leave the middle hole empty on the port side for securing the rack mount bracket later (see
Device in the
4. Tighten the screws to 15 in.-lbs (17 cm-kgs).
5. Repeat these steps for the other rail.

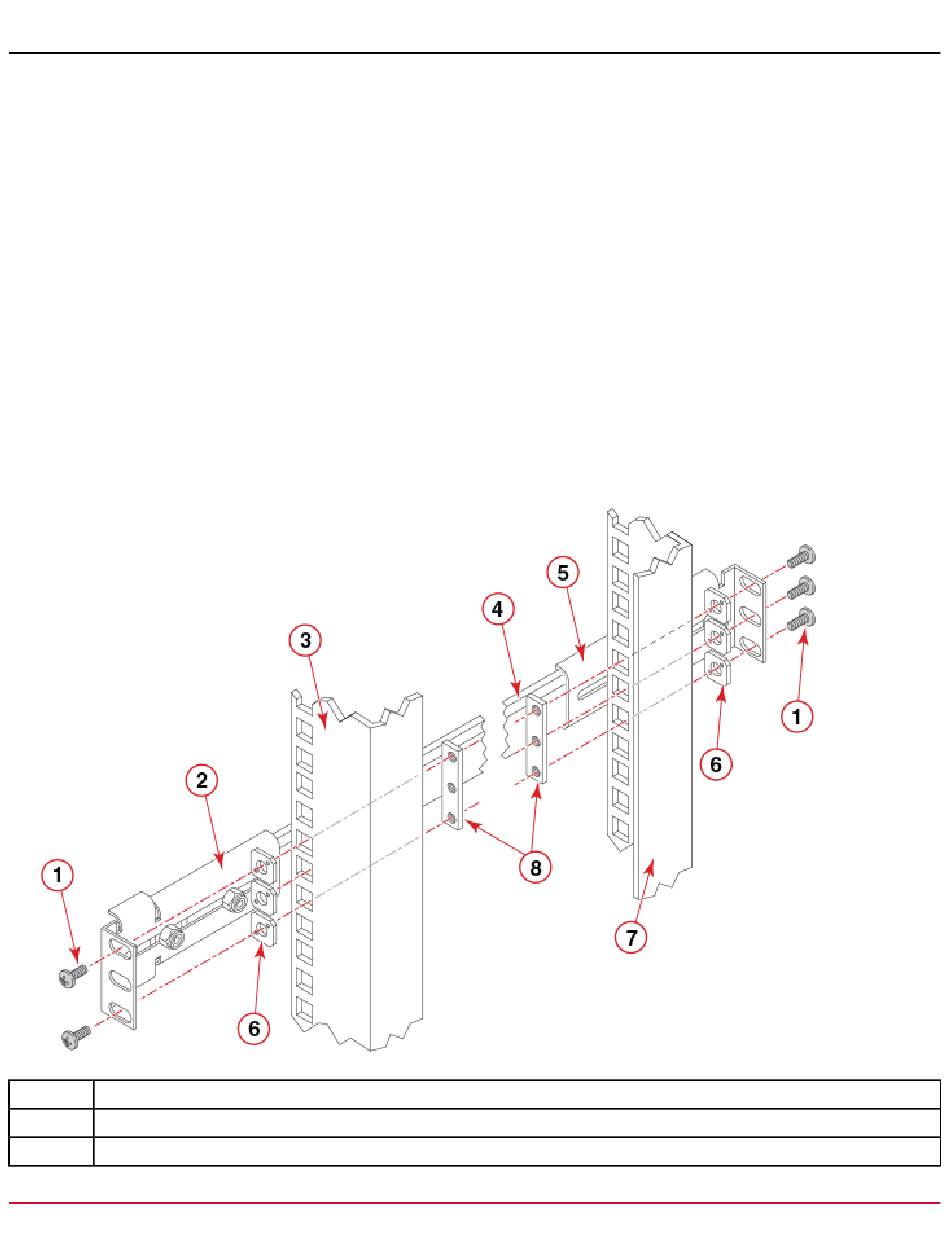

Figure 23: Method B for Attaching Outer Slide Rails to Square-Hole Rack Posts
1. Phillips Screw, 10-32 x 1/2-in., Black (five each side)
2. Three-Hole Slide-Mount L Bracket (two each side)
3. Rack Post (port side)
Rack); however, position an alignment washer between the L bracket and the rack post.
®
