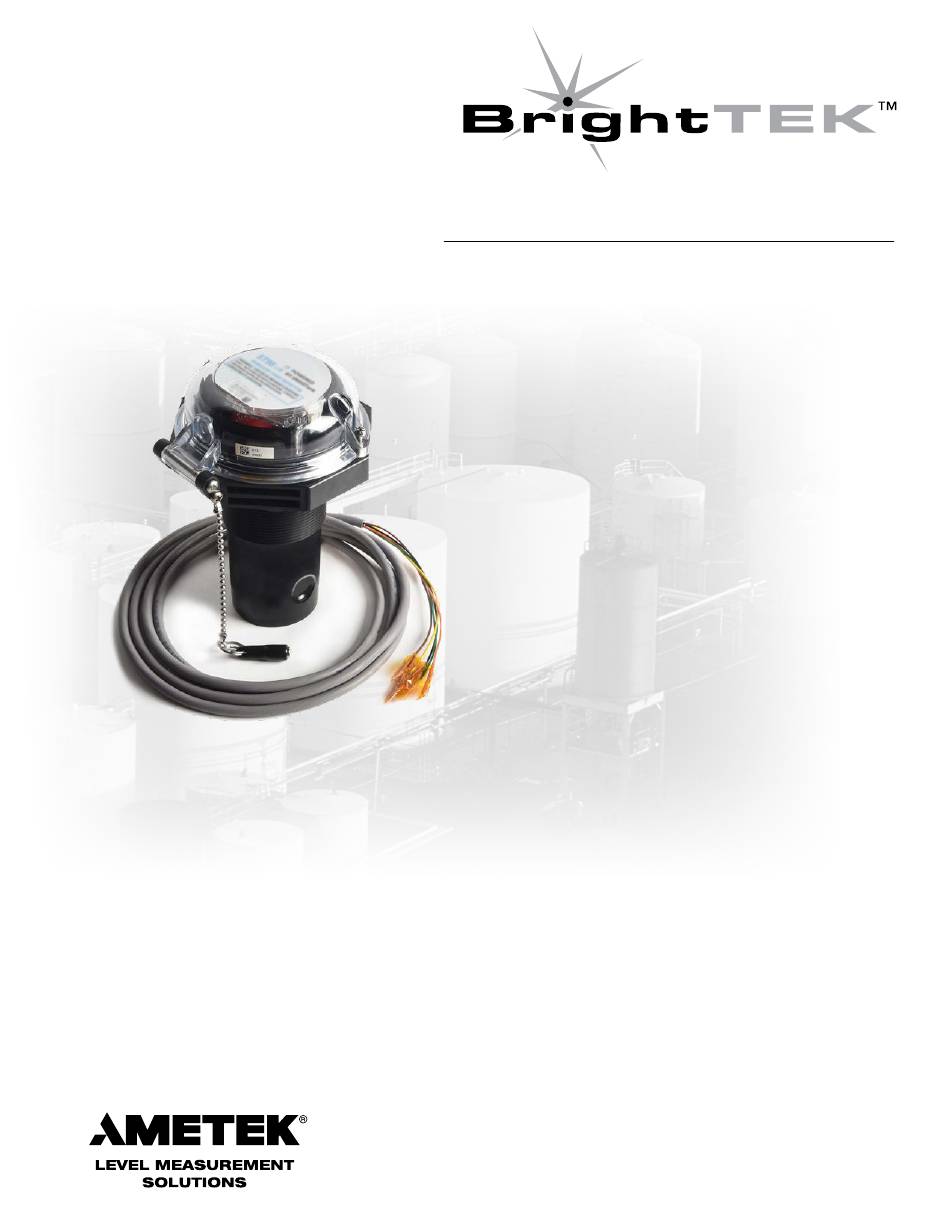

- Page 1 ST9x / BrightTEK Operator Manual Wireless Tank Monitoring System...
-
Page 2: Conventions Used In This Manual
FCC Statement then, AMETEK LMS will repair or replace the control This device complies with Part 15 of the FCC at no cost to the purchaser (or owner) other than transportation. -
Page 3: Table Of Contents
BrightTEK ST9x Wireless Tank Monitoring System ™ Table of Contents 1.0 ST95 Uplink......4 6.0 Obtaining Technical Support. -
Page 4: St95 Uplink
ST95 Uplink The BrightTEK ST95 Cellular Uplink Host by AMETEK ™ provides remote wireless connectivity of Magnetrol ® Orion Instruments , Drexelbrook and SWI level ® ® ® measurement sensors to the AMETEK cloud-enabled BrightTEK web server, allowing remote data monitoring and system processing. -
Page 5: Installation
Likewise, the client needs to talk to the host that it is assigned to. It has a limited range that it can communicate over. If you are not familiar with wireless devices, contact AMETEK LMS Customer Support at fieldservice.magnetrol@ ametek.com. -
Page 6: Initial Inspection
Uplink Client, thoroughly inspect it for any damage which may have occurred during shipping. If there is any damage to the devices contact AMETEK LMS Cus- tomer Support at 1 (630) 969-4000 as soon as possible or email to fieldservice.magnetrol@ametek.com. -
Page 7: Remote Universal Mounting Parts (All St9X)
• Wire the Sensor positive and negative wires to the col- ors marked (CKT1, 21V+) and (CKT1, Input) respectively. • If using a second Sensor, wire the Sensor positive and negative wires to the colors marked (CKT2, 21V+) and (CKT2, Input) respectively. ST95 UPLINK CABLE TERMINATION To Customer Sensor Using 4–20 Loop Function... -
Page 8: Wiring Guides
Wiring Guides Powering Single Loop from ST95 Uplink Client Powering two transmi ers from ST95 Uplink Client ST95 Uplink ST95 Uplink Green Wire Orange Wire 4-20 mA 4-20 mA Signal Yellow Orange Wire Wire +21V Yellow Wire +21V Black White 4-20 mA 4-20 mA Wire... -
Page 9: System Control Drawing
System Control Drawing HAZARDOUS LOCATION CLASS 1 DIV. 1 GROUP D ST95 UPLINK FAMILY LMS SENSOR OR OTHER COMPATIBLE GAUGE, MUST BE INTRINSICALLY SAFE & TYPE; 4-20 mA ONLY SECURELY MOUNT ST95 MONITOR USING UNIVERSAL MTG KIT CUSTOMER’S TANK NOTES: DO NOT INSTALL THE ST95 WHERE HAZARDOUS VAPORS ARE PRESENT. -
Page 10: Host Startup
Host Startup Use the magnet to start the Host. Hold the magnet over the magnet symbol on the lid for one second, then remove. INDICATOR LIGHTS Condition LED Description A slow green LED flashes followed by the green & red Power ON LEDs alternating flashes. -
Page 11: 2.10 Mounting The Electronics Housing
Clients Units: requires to open the lid and push the button to manually activate the unit. 2.9.2 Connecting One or Two Sensors • The ST95 Uplink Client is designed to be installed di- rectly to specific sensor assemblies and equipment that conforms to industry 4–20mA standards. -
Page 12: Specifications
Tank Data Online web portal. • Verify the product level is properly configured via the website. • If technical support is required, please call BrightTEK Customer Support at 1(630) 969-4000 or email fieldservice.magnetrol@ametek.com. Specifications ST95 Cellular Uplink Host / Uplink Client Hardware Hazardous Classification Class 1 Div. - Page 13 Environmental Operating Temperature -4 to +104 °F (-20 to +40 °C) Storage Temperature -40 to +185 °F (-40 to +85 °C) Installation Requirements Mount the ST95 Uplink in a location shielded from potential external damage. Use Secure Mounting the designated mounting kit for stability and protection. ST95 Satellite Uplink Host Hardware Weight...
-
Page 14: St95 (Host/Client) Battery Replacement
ST95 (Host/Client) Battery Replacement WARNING: TO PREVENT IGNITION OF A HAZARDOUS ATMO- SPHERE, THE BATTERY MUST ONLY BE CHANGED IN AN AREA KNOWN TO BE NONHAZARDOUS. If you are unsure as to whether the area is hazardous, consult the appropriate personnel who has knowledge of Class 1 Division 1 hazardous areas before proceeding. -
Page 15: Closing The Lid
• Unplug the battery cable from the connector by squeez- ing the white clip and pull it straight up and out of the mating connector. a. WARNING: Substitution of components may impair intrinsic safety. AVERTISSEMENT : LA SUBSTITUTION DE COMPOSANTS PEUT COMPROMETTRE LA SECURITE INTRINSEQUE”... -
Page 16: Lithium Battery Disposal
Lithium Battery Disposal For disposal, batteries must be packaged and shipped in accordance with transportation regulations, to a proper disposal site. The U.S. Department of Trans- portation authorizes shipment of “Lithium batteries for disposal” by motor vehicle only in regulation 173.1015 of CFR 49 (effective January 5, 1983). -
Page 17: St95 Cellular Uplink Host Troubleshooting
ST95 Cellular Uplink Host Troubleshooting Nothing happens when magnetic switch is used. ✓ Note whether the green LED lights when the mag- net is in place on the lid. If not, you may have a bad Battery. If it does light, then make sure you hold the magnet in place for just one second. -
Page 18: Obtaining Technical Support
REMEMBER: For security reasons, no one from AMETEK LMS will ever ask you for your password. If it should be necessary to return this unit to AMETEK LMS for service: 1. You must first obtain a Return Authorization Number. 2. This number must be clearly marked on the outside of the shipping container and on the service card which was supplied with the unit. -
Page 19: St95 Satellite Uplink Host
ST95 Satellite Uplink Host General Warnings The ST95 Satellite Uplink is Certified for Class 1, Division 2, Group D Hazardous locations. The Sensors and Intrinsically Safe Circuits used must be Division 1 rated: Class 1, Div. 1 Group D, as require- ments in the Control Drawings (see following pages). - Page 20 Capacitance and inductance of the field wiring from the intrinsically safe equipment of the associated apparatus shall be calculated and must be included in the system calculations as shown in the Table 1. Cable capaci- tance, CCable, plus intrinsically safe equipment capac- itance, CI, must be less than the marked capacitance, CA (or CO), shown on any associated apparatus used.
-
Page 21: System Control Drawing
System Control Drawing HAZARDOUS AREA SAFE AREA CLASS 1 | DIV 1 | GROUP D Solar Satellite Gateway AP4 Securely mount Customer supplied C1D1 level gauge ST95 monitor using must be intrinsically safe; 4:20mA only moun ng kit Threaded fi ng (customer supplies) CAUTION Junc on box is to... -
Page 22: Wiring Guides
Wiring Guides Using both ST95 Uplink 4-20mA Inputs Powering 2 ST95 loops from the same external power supply Power supply must Class 1 Class 1 Division 1 Yellow White Tank ST95 Division 1 Wire Group D Areas Wire Group D Areas Uplink Internally Connected... -
Page 23: Installation
Installation 7.4.1 Site Layout Test (at the Office) Open the box containing the Solar Satellite Gateway Tank Monitor (ST95) (AP4) and ST95 tank monitor. Verify the AP4 is the mate to the ST95 unit. RTUID on AP4 must match the RTUID on ST95 lid label. You will need to test communications first by activating Solar Satellite the AP4: Plug in the cable attached to the ST95 lid to... - Page 24 7.4.2.1 Mounting a Host Device • The cable is 10 feet long. It must be routed and secured. • Requires a location that will be within its operating range of 300 feet of all its assigned Clients, assuming Clients are used. •...
- Page 25 • If the GREEN LED is not flashing after the AP4 powers on, please refer to the troubleshooting section of the Operators manual (AMETEK LMS bulletin 41-622. • At the end of a callout attempt the ST95 Host flashes the GREEN LED 3 times to indicate success. It turns on the RED LED and flashes the GREEN LED to indicate an error number.
-
Page 26: Troubleshooting A Failed System
Troubleshooting a Failed System 7.5.1 First Time Charge Cycle Failure 1. Whenever the AP4 is turned on expect the green light to blink once per second. The Super Capacitor that is used to store energy will always need to be recharged even if only briefly. -
Page 27: Ap4 To St95 Connection Troubleshooting Guide
While we expect it to work if put into service within the two year period the customer may have it in storage for an additional time which could result in the AP4 not be- ing able to power the ST95. The customer should leave the Satellite system installed and wait to see if it starts after sufficient time has passed to recharge the Battery. -
Page 28: St90 Ac Powered Cellular Uplink Host
ST90 AC Powered Cellular Uplink Host Introduction Please read all the instructions before you begin the in- stallation. Performing a test of your site layout is highly recommended. Perform a site survey to determine the possible mount- ing locations for the host and the power box. The cable between them is 50 feet long. -
Page 29: Installation
It is also capable of supporting two Sensors remote- ly wired to it. The connections are industry standard 4–20 mA capable inputs. Two cord grips are available on the front of the junction box for wiring the sensors. You may connect any 4–20 sensor to these inputs. Contact customer support for help if this is the intended application. - Page 30 8.2.1 Host Startup INDICATOR LIGHTS Condition LED Description A slow green LED flashes followed by the green & red Power ON LEDs alternating flashes. Red LED will go out and the green LED will begin to Active on Cellular flash slowly while attempting to register on the cellular Network network.
-
Page 31: Ac Powered Host Connection
• Please call for technical assistance if you have doubt about the location for the ST90 AC Host or are having difficulty transmitting. If an external antenna is required, several optional antennas are available. • Contact Customer Support to determine your exact needs. - Page 32 AC Host Orange Green Brown Yellow Black Wire Wire Wire Wire Wire +24v +24v 4-20 mA 4-20 mA Transmitter Transmitter Using both AC Host 4-20mA Inputs Powering 2 Devices from AC Host AC Host Orange Yellow Green Brown Black Wire Wire Wire Wire...
-
Page 33: Top View Diagram
Top View Diagram Switch Reset Recomended torque for (F/N 33) IS 5.3 in/lbs (0.6Nm) Line Cord* (110VAC) Cord Grip Assemble Cord Grips by using Recomended torque (F/N 34) IS 25-30 in/lbs (2.8-3.4Nm) Polyvent Cord Grip Assemble Cord Grips by using Cord Grip Recomended torque Cable from the tank level monitor... -
Page 34: Troubleshooting
Troubleshooting Power Supply 1. Identify the power supply of the 4-20mA loop, which can be either an external supply or the internal supply within the ST90 (+24V). 2. If using an external power supply, use a multi-meter to measure the voltage at its output terminals. Ensure that the required voltage is present. - Page 35 5. Note the measured value of the current flowing in the loop. It should be between 4 and 20 mA. If the value of the current is zero, there may be an open circuit and the wiring should be checked. If the wiring is verified to be correct and the value is outside of the 4–20 mA range, there is likely a problem with the sensor.
-
Page 36: Model Number
Model Number 1 2 3 4 5 6 | BASE CODE W R L S T 9 Model Series ST9X - Cellular Uplink / 900 MHz Uplink Client / Cellular AC Host / Satellite Uplink Host 7 | MODEL TYPE ST90 - AC Powered Uplink Host ST95 Cellular or Satellite Uplink / Uplink Client 8 | COMMUNICATIONS TYPE / SIM... -
Page 37: Appendix - Control Drawings
Appendix — Control Drawings 41-622 BrightTEK ST9x Operator Manual ™... - Page 38 Appendix — Control Drawings Appendix — Control Drawings 41-622 BrightTEK ST9x Operator Manual ™...
- Page 39 Appendix — Control Drawings 41-622 BrightTEK ST9x Operator Manual ™...
- Page 40 BULLETIN: 41-622.4 705 Enterprise Street • Aurora, Illinois 60504-8149 USA 630.969.4000 • info.magnetrol@ametek.com • ametek-measurement.com EFFECTIVE: February 2025 SUPERSEDES: July 2024 Copyright © 2025 AMETEK Magnetrol USA, LLC...
