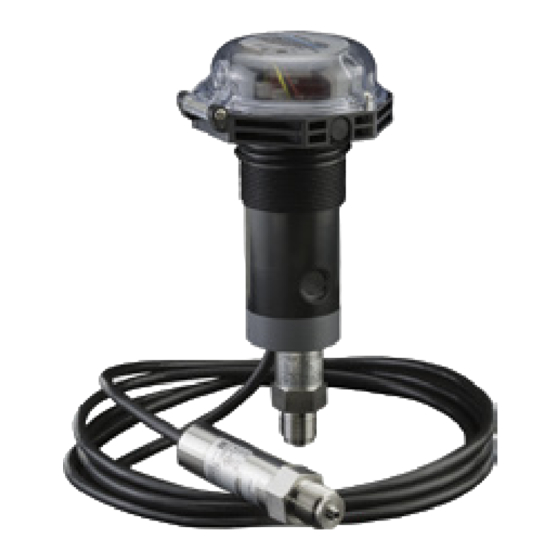

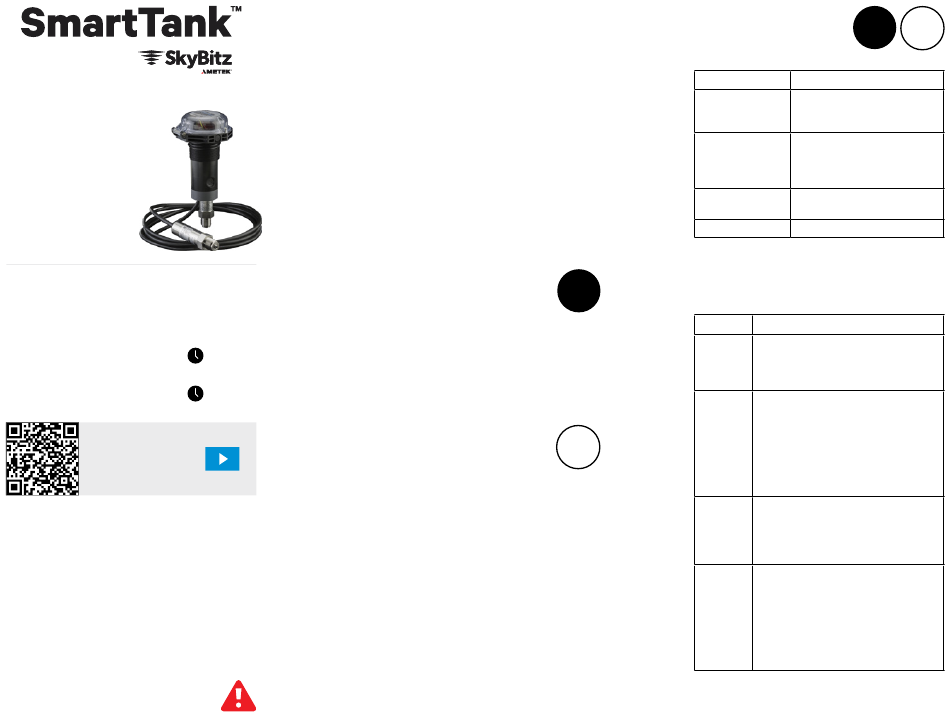

Ametek SkyBitz SmartTank ST95 Quick Install Manual

ST95
LTE Monitor
Quick
Install Guide
Gasoline, Methanol,
Chemicals in C1D1
Hazardous Locations
Options To Install Tank Monitors
Best Practice
Watch the Video and set up
using the SmartTank Mobile App
Watch the 3 min Video and call your
internal Admin to complete set up
Scan to Play
Install Video
Need more help?
Call Customer Support
888-826-5546
Monday-Friday: 7:30am-6:30pm EST
(except for holidays)
telemetrysupport.telular@ametek.com
SkyBitz Tank Monitoring
1500 Bishop Ct, Mount Prospect, IL 60056
WARNING
The ST95 is certified for Class 1 Division 1
Group D hazardous locations ONLY.
Host and Client
Set Up Instructions
Do NOT open the lid.
Determine if you have an ST95 Host or
a ST95 Client:
•
•
On Host/Client Pairing, always setup the
Host Unit first.
HOST Set up:
1.
Time Required
2.
5-10 min
3.
10-15 min
4.
Pair CLIENTS to its Host:
1.
2.
3.
4.
5.
6.
7.
8.
Host units begin with 95H or 95W and have
the magnet icon on the label.
Client units begin with 95L and do NOT have
the magnet icon on the label. If you have a
Client 95L, the device must be opened to
activate.
Install Host monitor in Tank
(see other side)
Hold the attached magnet over the magnet
icon on the lid to start a device cellular call.
Observe the light sequence as the device
wakes up and connects to the cellular
network. (see other side)
Confirm reading on Mobile App.
Prepare the ST95 in an area
known to be free of hazardous
flammable vapors.
Prior to handling the ST95 Client ensure
against static discharge by wearing a
"static strap" at all times such as a 3M2209
disposable strap.
Assign Clients to the Host monitor.
Install Client monitor in tank. (see pg 1)
Open lid on Client monitor and plug battery
into the connector
Observe the light sequence.
Refresh the Mobile App and confirm reading.
To start future Client monitor calls
press the button located opposite the
battery connector.
Host and Client
LED Descriptions
  HOST
Power ON
Active on Cellular
Network
Connected to
Cellular Network
Successful Call
If the call is unsuccessful, the
GREEN LED flashing with the error number.
H
 CLIENT
Power ON
Any Host
found
C
No Host
found
Note
Sequence applicable to units that has not been associated
with a host device via the portal.
H
C
LED Description
A slow GREEN LED flashes
followed by alternating GREEN
LED and RED LED flashes.
RED LED will go out and the
GREEN LED will start to flash
slowly while attempting to register
on the cellular network
GREEN LED will go steady on
GREEN LED flashes and goes out
RED LED will light with the
LED Description
A slow GREEN LED flashes as the Client
starts up, the GREEN LED and RED LED
alternately flash indicating that the Client is
attempting to contact a Host.
The Client attempts to find any Host on any
WLAN channel. The RED LED turns off and
the GREEN LED flashes to indicate a Host
was found.
The Host will then report the Client to the
Data Center.
Allow three minutes before starting the next
Client to allow the Host to complete the call.
The GREEN LED and RED LED continue
to flash for approximately 32 seconds and
then the RED LED changes to steady on and
the GREEN LED slowly flashes six times to
indicate no Host was found.
Once the GREEN LED is blinking do not
press the button. If you do the unit will
re-start its signal search. You may need
to press the button after the initial light
sequence is finished. The button is located
opposite the battery connector . By pressing
the button, the unit will begin its search for a
signal and follow the process in step 4.
