Setting up Measurement Conditions and Display
Saving/Recalling Instrument Setup State (Save/Recall Function)

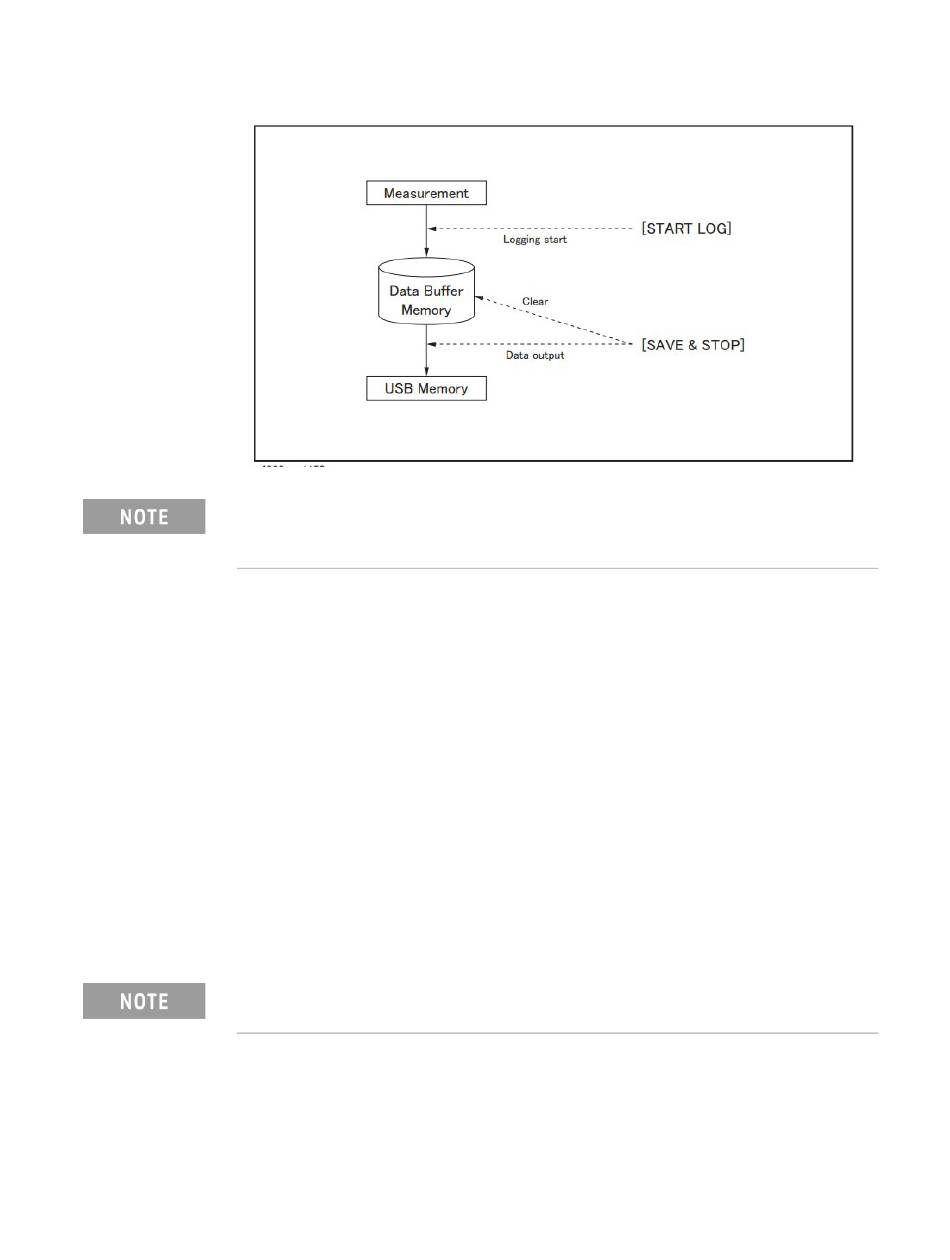

Figure 4-7 Saving measurement results into USB memory
Measurement result files are automatically assigned file names
E498x001.csv through E498x999.csv, and you cannot change the file
names.

Saving a screenshot into USB memory

You can save a screenshot of the E4981B's display into USB memory as a .GIF
file. You can later load your saved file into an application program running on a
PC.
To save a screenshot into USB memory
Step 1. Display the screen you want to save.
Step 2.
Plug a USB memory device into the front USB port.
Step 3. Press [Save/Recall].
Step 4. Press the SAVE DISPLAY softkey.
Step 5. When the data has been saved into the USB memory device, a "Storing image
completed. : E498xXXX.gif" message appears in the system message area.
Screenshot files are automatically assigned file names E498x001.gif
through E498x999.gif, and you cannot change the file names.
