Getting Started
Learning Basic Measurement Procedure
Setting up cable length
Select the length of the measurement cable from 0 m, 1 m, or 2 m, depending
on the test set lead you use.
0 m
1 m
2 m
The procedure used to set up the length of the measurement cable is described
below.
Step 1. Press the [Meas Setup] key.
Step 2. Press the CORRECTION softkey.
Step 3. Use the cursor keys to select the CABLE field.
Step 4. Use the following softkeys:
Softkey
0 m
1 m
2 m

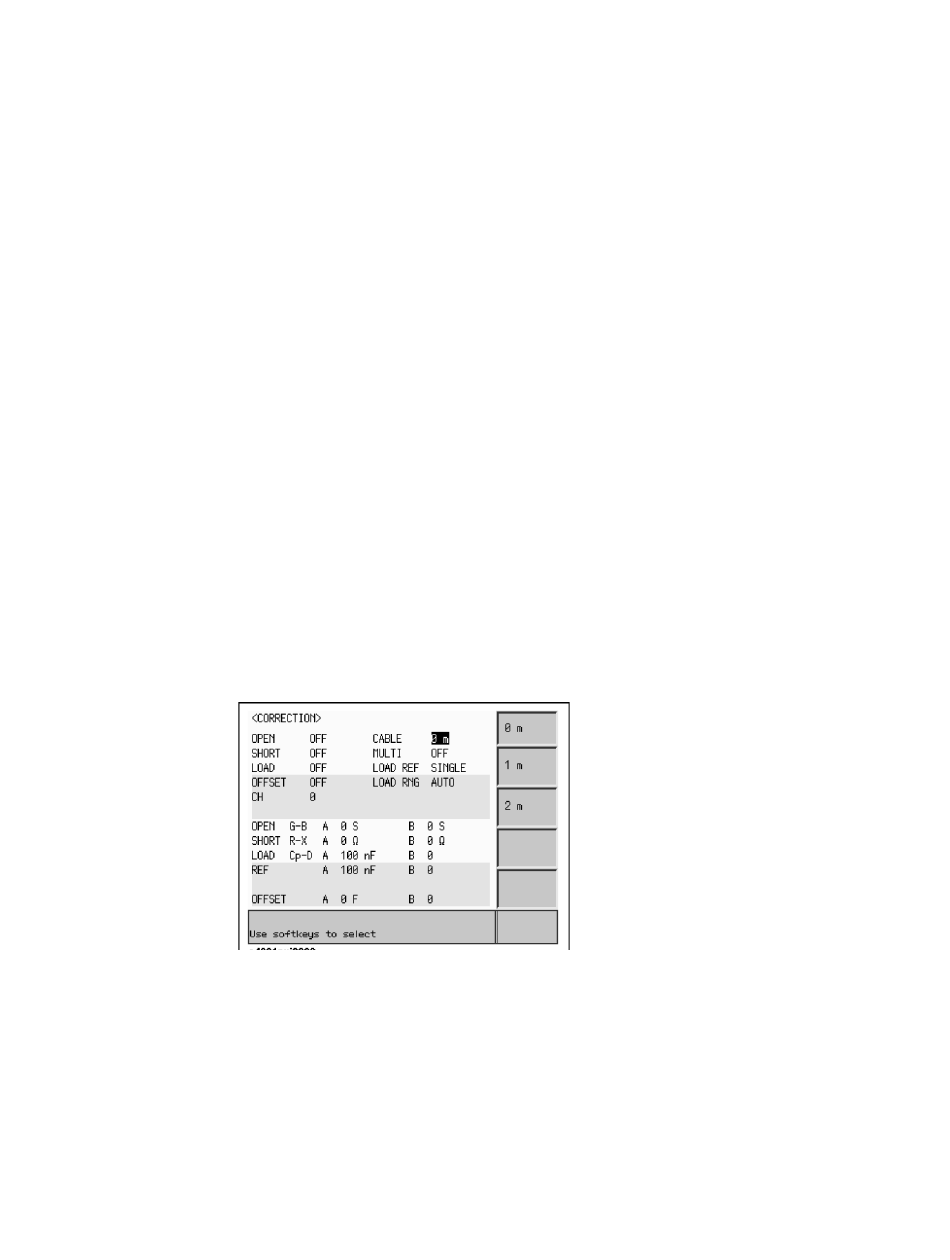

Figure 3-7 Cable length selection menu screen
Keysight E4981B 120 Hz/1 kHz/1 MHz Capacitance Meter
When you do not use the test lead (in other words, when you
connect the test fixture directly to the UNKNOWN terminal).
When you use the Keysight 16048A/B test lead.
When you use the Keysight 16048D test lead.
Description
Sets the cable length to 0 meter.
Sets the cable length to 1 meter.
Sets the cable length to 2 meter.
