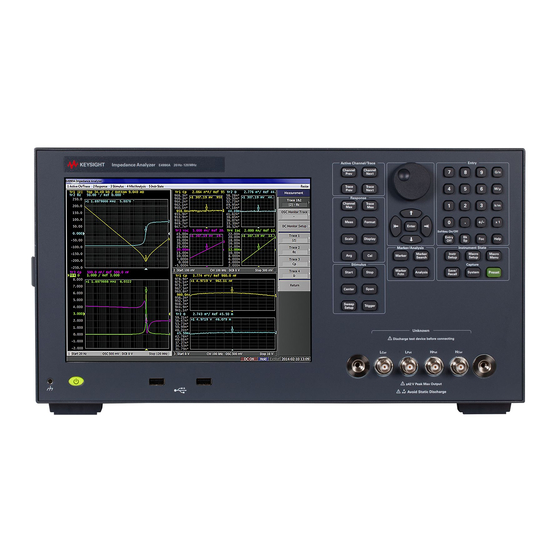

Keysight E4990A Parts Replacement

Hide thumbs Also See for E4990A:

Advertisement

Quick Links

Download this manual
E4990A Parts Replacement
Procedure
2014 Oct 20
Rev.
E4990A Disassembly Procedure
Keysight Technologies

Advertisement

loading

Related Manuals for Keysight E4990A

Summary of Contents for Keysight E4990A

  • Page 1 E4990A Parts Replacement Procedure 2014 Oct 20 Rev. E4990A Disassembly Procedure Keysight Technologies...
  • Page 2 30.4 inlb 9/16 Box Wrench 30.4 inlb 5.5mm Box Torque driver 6 lbin 1.27mm Allen Key 2 lbin 5/16” Open End Wrench 9.5 lbin REFERENCE DOCUMENTS DOCUMENT NO. DESCRIPTION Rev. TOOL LIST AND REFERENCE DOCUMENTS (1) E4990A Disassembly Procedure Keysight Technologies...
  • Page 3 Protective Template for BNC assembly T-384163 Cable holder of P/S cable T-384186 Angle Support Block T-386283 Wire Connector Head Removal Jig 80-5286 Roller Jig 1530-2247 Hubic Cart REFERENCE DOCUMENTS DOCUMENT NO. DESCRIPTION Rev. TOOL LIST AND REFERENCE DOCUMENTS (2) E4990A Disassembly Procedure Keysight Technologies...
  • Page 4 Click the hyperlink below for any choice of dis-assembly procedure: CPU Module (E5061-62180) Display Board (E5061-66651) LF Source Module (E4990-62007) TRD Module (E4990-62005) & BNC Port Assembly (E4990-60102) Source Module (E5061-62021) Rev. DIS-ASSEMBLY PROCEDURE MENU (1) E4990A Disassembly Procedure Keysight Technologies...
  • Page 5 Reverse Flow Dis-assembly Procedure Menu (cont’d) Click the hyperlink below for any choice of dis-assembly procedure: VRD Module (E4990-62008) I/O Control Board (E4990-66653) Analog Mother Board (E5061-66610) Oven (Option 1E5) Rev. DIS-ASSEMBLY PROCEDURE MENU (2) E4990A Disassembly Procedure Keysight Technologies...
  • Page 6 Dis-Assembly Procedure Note: 1. Torque value shown in this document is only for reference and only used during assembly. Rev. LCD - DIS-ASSEMBLY PROCEDURE E4990A Disassembly Procedure Keysight Technologies...
  • Page 7 Remove cover Remove trim strip Remove HANDLE ASSEMBLY T20 Remove 0515-1402 (4ea) Remove 0515-1402 (4ea) T15 M3.5L8 PAN T15 M3.5L8 PAN Remove foot (4ea) Rev. LCD - LCD DIS-ASSEMBLY (1) E4990A Disassembly Procedure Keysight Technologies...
  • Page 8 Remove Front Panel sub-assembly Remove 0515-1382 (5ea) T15 M3.5L6 Flat Disconnect flat cable of Front Panel Ass’y from CPU Module Remove 0515-2044 (2ea) T20 M4L10 Flat Rev. LCD - LCD DIS-ASSEMBLY (2) E4990A Disassembly Procedure Keysight Technologies...
  • Page 9 Disconnect Open Rev. LCD - LCD DIS-ASSEMBLY (3) E4990A Disassembly Procedure Keysight Technologies...
  • Page 10 Disconnect Open Rev. LCD - LCD DIS-ASSEMBLY (4) E4990A Disassembly Procedure Keysight Technologies...
  • Page 11 Remove cable cover Disconnect Remove Front Panel back cover sub-assembly Remove 0515-0430 (2ea) T10 M3L6 PAN Disconnect Rev. LCD - LCD DIS-ASSEMBLY (5) E4990A Disassembly Procedure Keysight Technologies...
  • Page 12 Disconnect (2ea) Disconnect Open (3ea) Rev. LCD - LCD DIS-ASSEMBLY (6) E4990A Disassembly Procedure Keysight Technologies...
  • Page 13 Remove 0515-0430 (4ea) T10 M3L6 PAN LCD sub-assembly Rev. LCD - LCD DIS-ASSEMBLY (7) E4990A Disassembly Procedure Keysight Technologies...
  • Page 14 Dis-Assembly Procedure Note: 1. Torque value shown in this document is only for reference and only used during assembly. Rev. SSD - DIS-ASSEMBLY PROCEDURE E4990A Disassembly Procedure Keysight Technologies...
  • Page 15 Remove cover Remove HANDLE ASSEMBLY T20 Remove 0515-1402 (4ea) Remove 0515-1402 (4ea) T15 M3.5L8 PAN T15 M3.5L8 PAN Remove foot (4ea) Rev. SSD - SSD DIS-ASSEMBLY (1) E4990A Disassembly Procedure Keysight Technologies...
  • Page 16 Cut cable ties (4ea) Cut cable tie Rev. SSD - SSD DIS-ASSEMBLY (2) E4990A Disassembly Procedure Keysight Technologies...
  • Page 17 Disconnect (2ea) Rev. SSD – SSD DIS-ASSEMBLY (3) E4990A Disassembly Procedure Keysight Technologies...
  • Page 18 Slowly Slide out the SSD Sub-Assembly Remove 0515-0430 (2ea) T10 M3L6 PAN Rev. SSD – SSD DIS-ASSEMBLY (4) E4990A Disassembly Procedure Keysight Technologies...
  • Page 19 Cut cable ties (3ea) Disconnect Rev. SSD – SSD DIS-ASSEMBLY (5) E4990A Disassembly Procedure Keysight Technologies...
  • Page 20 Remove 0515-2146 (4ea) T10 M3L4 FLAT Remove Rev. SSD - SSD DIS-ASSEMBLY (6) E4990A Disassembly Procedure Keysight Technologies...
  • Page 21 CPU Module (E5061-62180) Dis-Assembly Procedure Note: 1. Torque value shown in this document is only for reference and only used during assembly. Rev. CPU MODULE - DIS-ASSEMBLY PROCEDURE E4990A Disassembly Procedure Keysight Technologies...
  • Page 22 Remove cover Remove HANDLE ASSEMBLY T20 Remove 0515-1402 (4ea) Remove 0515-1402 (4ea) T15 M3.5L8 PAN T15 M3.5L8 PAN Remove foot (4ea) Rev. CPU MODULE - CPU MODULE DIS-ASSEMBLY (1) E4990A Disassembly Procedure Keysight Technologies...
  • Page 23 Remove angle bar Cut cable ties (4ea) Cut cable tie Remove 0515-0430 (2 ea) Rev. CPU MODULE - CPU MODULE DIS-ASSEMBLY (2) E4990A Disassembly Procedure Keysight Technologies...
  • Page 24 Disconnect Open Rev. CPU MODULE - CPU MODULE DIS-ASSEMBLY (3) E4990A Disassembly Procedure Keysight Technologies...
  • Page 25 DISCONNECT All cables on CPU Module Rev. CPU MODULE - CPU MODULE DIS-ASSEMBLY (4) E4990A Disassembly Procedure Keysight Technologies...
  • Page 26 Slowly Slide out the SSD Sub-Assembly Remove 0515-0430 (2ea) T10 M3L6 PAN Rev. CPU MODULE - CPU MODULE DIS-ASSEMBLY (5) E4990A Disassembly Procedure Keysight Technologies...
  • Page 27 Remove 0515-0430 (3ea) T10 M3L6 PAN Remove CPU Module (E5061-62180) Remove 0515-1946 (3ea) T10 M3L6 Flat Rev. CPU MODULE - CPU MODULE DIS-ASSEMBLY (6) E4990A Disassembly Procedure Keysight Technologies...
  • Page 28 Display Board (E5061-66651) Dis-Assembly Procedure Note: 1. Torque value shown in this document is only for reference and only used during assembly. Rev. DISPLAY BOARD - DIS-ASSEMBLY PROCEDURE E4990A Disassembly Procedure Keysight Technologies...
  • Page 29 Remove cover Remove trim strip Remove HANDLE ASSEMBLY T20 Remove 0515-1402 (4ea) Remove 0515-1402 (4ea) T15 M3.5L8 PAN T15 M3.5L8 PAN Remove foot (4ea) Rev. DISPLAY BOARD - DISPLAY BOARD DIS-ASSEMBLY (1) E4990A Disassembly Procedure Keysight Technologies...
  • Page 30 Remove Front Panel sub-assembly Remove 0515-1382 (5ea) T15 M3.5L6 Flat Disconnect flat cable of Front Panel Ass’y from CPU Module Remove 0515-2044 (2ea) T20 M4L10 Flat Rev. DISPLAY BOARD - DISPLAY BOARD DIS-ASSEMBLY (2) E4990A Disassembly Procedure Keysight Technologies...
  • Page 31 Disconnect Open Rev. DISPLAY BOARD - DISPLAY BOARD DIS-ASSEMBLY (3) E4990A Disassembly Procedure Keysight Technologies...
  • Page 32 Disconnect (3ea) Remove 0515-0430 (2ea) T10 M3L6 PAN Rev. DISPLAY BOARD - DISPLAY BOARD DIS-ASSEMBLY (4) E4990A Disassembly Procedure Keysight Technologies...
  • Page 33 Remove Display Board (E5061-66651) Remove washers (2ea) Remove nuts (2ea) 5/8 Torque Box Rev. DISPLAY BOARD - DISPLAY BOARD DIS-ASSEMBLY (5) E4990A Disassembly Procedure Keysight Technologies...
  • Page 34 LF Source Module (E4990-62007) Dis-Assembly Procedure Note: 1. Torque value shown in this document is only for reference and only used during assembly. Rev. LF SOURCE MODULE - DIS-ASSEMBLY PROCEDURE E4990A Disassembly Procedure Keysight Technologies...
  • Page 35 Remove cover Remove trim strip Remove HANDLE ASSEMBLY T20 Remove 0515-1402 (4ea) Remove 0515-1402 (4ea) T15 M3.5L8 PAN T15 M3.5L8 PAN Remove foot (4ea) Rev. LF SOURCE MODULE - LF SOURCE MODULE DIS-ASSEMBLY (1) E4990A Disassembly Procedure Keysight Technologies...
  • Page 36 Remove Front Panel sub-assembly Remove 0515-1382 (5ea) T15 M3.5L6 Flat Disconnect flat cable of Front Panel Ass’y from CPU Module Remove 0515-2044 (2ea) T20 M4L10 Flat Rev. LF SOURCE MODULE - LF SOURCE MODULE DIS-ASSEMBLY (2) E4990A Disassembly Procedure Keysight Technologies...
  • Page 37 Disconnect Open Rev. LF SOURCE MODULE - LF SOURCE MODULE DIS-ASSEMBLY (3) E4990A Disassembly Procedure Keysight Technologies...
  • Page 38 Disconnect (4ea) Open Remove 0515-0430 (2ea) T10 M3L6 Pan Remove LF Source Module (E4990-62007) Rev. LF SOURCE MODULE - LF SOURCE MODULE DIS-ASSEMBLY (4) E4990A Disassembly Procedure Keysight Technologies...
  • Page 39 TRD Module (E4990-62005) & BNC Port Assembly Dis-Assembly Procedure Note: 1. Torque value shown in this document is only for reference and only used during assembly. Rev. TRD MODULE & BNC PORT - DIS-ASSEMBLY PROCEDURE E4990A Disassembly Procedure Keysight Technologies...
  • Page 40 Remove trim strip Remove HANDLE ASSEMBLY T20 Remove 0515-1402 (4ea) Remove 0515-1402 (4ea) T15 M3.5L8 PAN T15 M3.5L8 PAN Remove foot (4ea) Rev. TRD MODULE & BNC PORT - TRD MODULE & BNC PORT DIS-ASSEMBLY (1) E4990A Disassembly Procedure Keysight Technologies...
  • Page 41 Remove 0515-1382 (5ea) T15 M3.5L6 Flat Disconnect flat cable of Front Panel Ass’y from CPU Module Remove 0515-2044 (2ea) T20 M4L10 Flat Rev. TRD MODULE & BNC PORT - TRD MODULE & BNC PORT DIS-ASSEMBLY (2) E4990A Disassembly Procedure Keysight Technologies...
  • Page 42 Disconnect Open Rev. TRD MODULE & BNC PORT - TRD MODULE & BNC PORT DIS-ASSEMBLY (3) E4990A Disassembly Procedure Keysight Technologies...
  • Page 43 BNC Port Assembly Removal Step Disconnect (4ea) Remove TRD Module (E4990-62005) Disconnect (4ea) Remove 0515-0430 (2ea) T10 M3L6 Pan Remove 0515-2044 Remove BNC Port Assembly Rev. TRD MODULE & BNC PORT - TRD MODULE & BNC PORT DIS-ASSEMBLY (4) E4990A Disassembly Procedure Keysight Technologies...
  • Page 44 Source Module (E5061-62021) Dis-Assembly Procedure Note: 1. Torque value shown in this document is only for reference and only used during assembly. Rev. SOURCE MODULE - DIS-ASSEMBLY PROCEDURE E4990A Disassembly Procedure Keysight Technologies...
  • Page 45 Remove cover Remove trim strip Remove HANDLE ASSEMBLY T20 Remove 0515-1402 (4ea) Remove 0515-1402 (4ea) T15 M3.5L8 PAN T15 M3.5L8 PAN Remove foot (4ea) Rev. SOURCE MODULE - SOURCE MODULE DIS-ASSEMBLY (1) E4990A Disassembly Procedure Keysight Technologies...
  • Page 46 Remove Front Panel sub-assembly Remove 0515-1382 (5ea) T15 M3.5L6 Flat Disconnect flat cable of Front Panel Ass’y from CPU Module Remove 0515-2044 (2ea) T20 M4L10 Flat Rev. SOURCE MODULE - SOURCE MODULE DIS-ASSEMBLY (2) E4990A Disassembly Procedure Keysight Technologies...
  • Page 47 Disconnect Open Rev. SOURCE MODULE - SOURCE MODULE DIS-ASSEMBLY (3) E4990A Disassembly Procedure Keysight Technologies...
  • Page 48 Disconnect (4ea) Remove Source Module (E5061-62021) Disconnect (2ea) Remove 0515-0430 (2ea) T10 M3L6 Pan Remove connectors (2ea) 5/16” Open End Wrench Remove 0515-2044 Remove BNC Port Assembly Rev. SOURCE MODULE - SOURCE MODULE DIS-ASSEMBLY (3) E4990A Disassembly Procedure Keysight Technologies...
  • Page 49 VRD Module (E4990-62008) Dis-Assembly Procedure Note: 1. Torque value shown in this document is only for reference and only used during assembly. Rev. VRD MODULE - DIS-ASSEMBLY PROCEDURE E4990A Disassembly Procedure Keysight Technologies...
  • Page 50 Remove cover Remove trim strip Remove HANDLE ASSEMBLY T20 Remove 0515-1402 (4ea) Remove 0515-1402 (4ea) T15 M3.5L8 PAN T15 M3.5L8 PAN Remove foot (4ea) Rev. VRD MODULE - VRD MODULE DIS-ASSEMBLY (1) E4990A Disassembly Procedure Keysight Technologies...
  • Page 51 Remove Front Panel sub-assembly Remove 0515-1382 (5ea) T15 M3.5L6 Flat Disconnect flat cable of Front Panel Ass’y from CPU Module Remove 0515-2044 (2ea) T20 M4L10 Flat Rev. VRD MODULE - VRD MODULE DIS-ASSEMBLY (2) E4990A Disassembly Procedure Keysight Technologies...
  • Page 52 Disconnect Open Rev. VRD MODULE - VRD MODULE DIS-ASSEMBLY (3) E4990A Disassembly Procedure Keysight Technologies...
  • Page 53 Disconnect (4ea) Disconnect (3ea) Remove 0515-2044 Remove BNC Port Assembly Rev. VRD MODULE - VRD MODULE DIS-ASSEMBLY (4) E4990A Disassembly Procedure Keysight Technologies...
  • Page 54 Remove 0515-1946 (3ea) T10 M3L6 Flat Remove VRD Module (E4990-62008) Rev. VRD MODULE - VRD MODULE DIS-ASSEMBLY (5) E4990A Disassembly Procedure Keysight Technologies...
  • Page 55 I/O Control Board (E4990-66653) Dis-Assembly Procedure Note: 1. Torque value shown in this document is only for reference and only used during assembly. Rev. I/O CONTROL BOARD - DIS-ASSEMBLY PROCEDURE E4990A Disassembly Procedure Keysight Technologies...
  • Page 56 Remove cover Remove trim strip Remove HANDLE ASSEMBLY T20 Remove 0515-1402 (4ea) Remove 0515-1402 (4ea) T15 M3.5L8 PAN T15 M3.5L8 PAN Remove foot (4ea) Rev. I/O CONTROL BOARD - I/O CONTROL BOARD DIS-ASSEMBLY (1) E4990A Disassembly Procedure Keysight Technologies...
  • Page 57 Disconnect Open Rev. I/O CONTROL BOARD - I/O CONTROL BOARD DIS-ASSEMBLY (3) E4990A Disassembly Procedure Keysight Technologies...
  • Page 58 Disconnect Remove 0515-0430 (2ea) T10 M3L6 PAN Remove I/O Control Board (E4990-66653) Rev. I/O CONTROL BOARD - I/O CONTROL BOARD DIS-ASSEMBLY (4) E4990A Disassembly Procedure Keysight Technologies...
  • Page 59 Analog Mother Board (E5061-66610) Dis-Assembly Procedure Note: 1. Torque value shown in this document is only for reference and only used during assembly. Rev. ANALOG MOTHER BOARD - DIS-ASSEMBLY PROCEDURE E4990A Disassembly Procedure Keysight Technologies...
  • Page 60 Remove Trim Side Remove HANDLE ASSEMBLY T20 Attach T-384162 cart arm Rev. ANALOG MOTHER BOARD - ANALOG MOTHER BOARD DIS-ASSEMBLY (1) E4990A Disassembly Procedure Keysight Technologies...
  • Page 61 Remove cover Remove trim strip Remove 0515-1402 (4ea) Remove 0515-1402 (4ea) T15 M3.5L8 PAN T15 M3.5L8 PAN Remove foot (4ea) Rev. ANALOG MOTHER BOARD - ANALOG MOTHER BOARD DIS-ASSEMBLY (2) E4990A Disassembly Procedure Keysight Technologies...
  • Page 62 Remove Front Panel sub-assembly Remove 0515-1382 (5ea) T15 M3.5L6 Flat Disconnect flat cable of Front Panel Ass’y from CPU Module Remove 0515-2044 (2ea) T20 M4L10 Flat Rev. ANALOG MOTHER BOARD - ANALOG MOTHER BOARD DIS-ASSEMBLY (3) E4990A Disassembly Procedure Keysight Technologies...
  • Page 63 Disconnect Open Rev. ANALOG MOTHER BOARD - ANALOG MOTHER BOARD DIS-ASSEMBLY (4) E4990A Disassembly Procedure Keysight Technologies...
  • Page 64 Disconnect (3ea) Remove 0515-0430 (2ea) T10 M3L6 PAN Rev. ANALOG MOTHER BOARD - ANALOG MOTHER BOARD DIS-ASSEMBLY (5) E4990A Disassembly Procedure Keysight Technologies...
  • Page 65 Remove Display Board (E5061-66651) Remove washers (2ea) Remove nuts (2ea) 5/8 Torque Box Rev. ANALOG MOTHER BOARD - ANALOG MOTHER BOARD DIS-ASSEMBLY (6) E4990A Disassembly Procedure Keysight Technologies...
  • Page 66 Disconnect (10ea) Remove connectors (2ea) 5/16” Open End Wrench Remove 0515-2044 Remove BNC Port Assembly Rev. ANALOG MOTHER BOARD - ANALOG MOTHER BOARD DIS-ASSEMBLY (7) E4990A Disassembly Procedure Keysight Technologies...
  • Page 67 Remove Modules (4ea) Remove 0515-1946 (3ea) T10 M3L6 Flat Remove 0515-0430 (6ea) T10 M3L6 Pan Rev. ANALOG MOTHER BOARD - ANALOG MOTHER BOARD DIS-ASSEMBLY (8) E4990A Disassembly Procedure Keysight Technologies...
  • Page 68 4 Remove rear panel Remove washers (3ea) Remove nuts (3ea) 9/16 Torque Box Remove 0515-1946 (7ea) T10 M3L6 Flat Rev. ANALOG MOTHER BOARD - ANALOG MOTHER BOARD DIS-ASSEMBLY (9) E4990A Disassembly Procedure Keysight Technologies...
  • Page 69 Disconnect (2ea) Rev. ANALOG MOTHER BOARD - ANALOG MOTHER BOARD DIS-ASSEMBLY (10) E4990A Disassembly Procedure Keysight Technologies...
  • Page 70 Remove 0515-0430 (11ea) T10 M3L6 PAN Remove Analog Mother Board (E5061-66610) Remove 0515-1946 Disconnect T10 M3L6 FLAT Rev. ANALOG MOTHER BOARD - ANALOG MOTHER BOARD DIS-ASSEMBLY (11) E4990A Disassembly Procedure Keysight Technologies...
  • Page 71 Oven (Option 1E5) Dis-Assembly Procedure Note: 1. Torque value shown in this document is only for reference and only used during assembly. Rev. OVEN (OPTION 1E5) - DIS-ASSEMBLY PROCEDURE E4990A Disassembly Procedure Keysight Technologies...
  • Page 72 Remove cover Remove HANDLE ASSEMBLY T20 Remove 0515-1402 (4ea) Remove 0515-1402 (4ea) T15 M3.5L8 PAN T15 M3.5L8 PAN Remove foot (4ea) Rev. OVEN (OPTION 1E5) - OVEN (OPTION 1E5) DIS-ASSEMBLY (1) E4990A Disassembly Procedure Keysight Technologies...
  • Page 73 4 Remove rear panel Remove washers (3ea) Remove nuts (3ea) 9/16 Torque Box Remove 0515-1946 (7ea) T10 M3L6 Flat Rev. OVEN (OPTION 1E5) - OVEN (OPTION 1E5) DIS-ASSEMBLY (2) E4990A Disassembly Procedure Keysight Technologies...
  • Page 74 Remove 0515-0430 (3ea) For Option 1E5 Only Disconnect (2ea) Remove Oven Board Open Rev. OVEN (OPTION 1E5) - OVEN (OPTION 1E5) DIS-ASSEMBLY (3) E4990A Disassembly Procedure Keysight Technologies...
