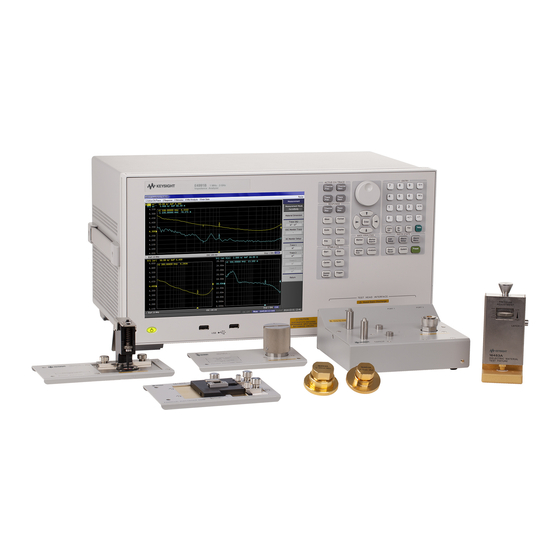

- Page 1 Keysight E4991B Impedance Analyzer 1 MHz to 500 M/1 G/3 GHz Configuration Guide...
- Page 2 Note: The following are not furnished: Printed copy of Operation and Service Manual, Test Fixture, Keyboard and Mouse. Refer to Accessory Option, Documentation Option and Available Accessories for the selection of these items. Note: The test head is furnished with the E4991B main unit. Step 1. Choose hardware option - frequency (mandatory) Description Option No.
- Page 3 ANSI Z540 compliant calibration. Calibration Step 8. Choose warranty Plan 3 year Return-to-Keysight warranty and service plan are standard. For extended warranty options and additional information, contact your local Keysight Technologies, Inc. sales office or visit the Keysight home website.
-
Page 4: Hardware Upgrade
Front Handle Kit 5063-9229 None None E4991B-1CP Handle/Rack Mount Kit 5188-4430 None None Note: For details of the upgrade information, refer to product homepage on the Keysight home website. Software Upgrade Option No. Description Upgrade Customer Requires Additional Information Model No. or... - Page 5 For permeability measurement of magnetic materials up to 1 GHz Test Fixture USB/GPIB Inter- 82357B E4991B-007 USB / GPIB interface required for controlling E4991B and ESPEC bench-top face for Windows temperature chamber by an external PC. Note: For more detailed information, refer to Accessories Selection Guide for Impedance Measurements.
- Page 6 — 7 mm performance test kit; includes Open, Short, 50 Ω Load, Air-line, calibra- tion data, wrench and carrying case. Note: For details of the performance test kit, refer to product page on the Keysight home website. Literature Resource Title...
- Page 7 07 | Keysight | E4991B Impedance Analyzer - Configuration Guide For more information on Keysight myKeysight Technologies’ products, applications or www.keysight.com/find/mykeysight services, please contact your local Keysight A personalized view into the information most relevant to you. office. The complete list is available at: www.keysight.com/find/contactus...
