Industrial Electronic Devices
If "Device from May 2014 (with Dip-Switch)" is set in
the
section
"Set
Communication",
appears like below:
If the field "Enable" is checked, the Modbus
TCP request is enabled;
In the field
"Slave IP
Address", the IP
Address of the Modbus TCP slave is defined;
In the field "Port", the number of the port
used for the Modbus TCP request is defined;
In the field "Type" insert the data type of the
Register you would like to read/write. You can
choose between the following:
Coil Status (R/W);
o
Input Status (R);
o
Holding Register (R/W);
o
Input Register (R);
o
In the field "Address" the start address of
the register/status to read/write is defined;
In the field "NPoint" insert the number of
consecutive registers/status to read/write;
In the field "Position" the starting byte of
the PROFIBUS array where mapping/taking
the data is defined;
The field
"Start
Bit" is used for select from
which Bit save the data (to use only when the
"Type" is 'Coil Status' or 'Input Status' and
the "NPoint" is more than one);
In the field "Mnemonic", a brief description
is
defined.10, Address PROFIBUS = 0.
ADFweb.com Srl – IT31010 – Mareno – Treviso
the
window

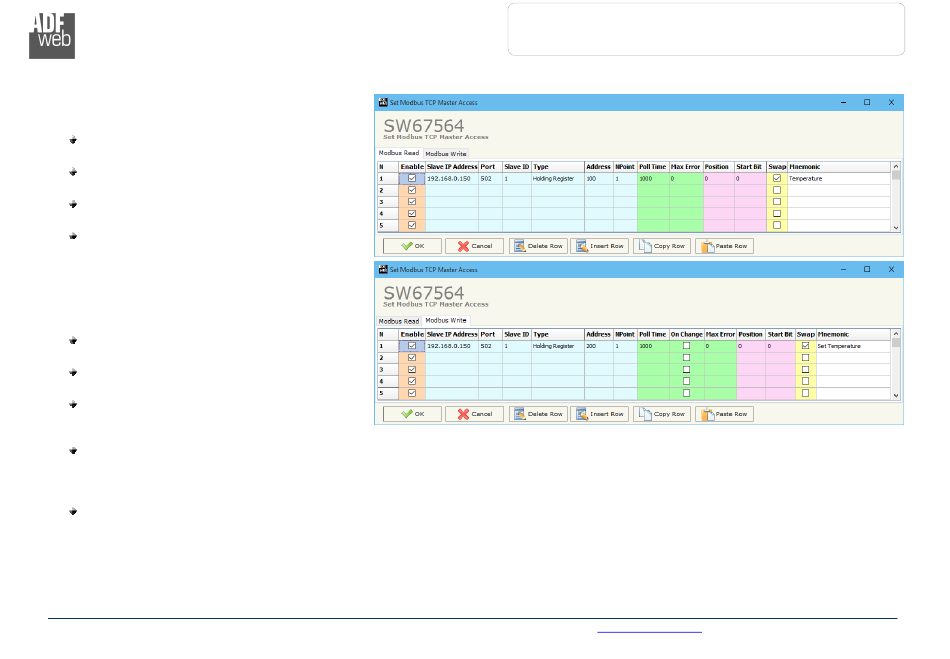

Figure 4b: "Set Access" windows
User Manual PROFIBUS Slave / Modbus TCP Master
Document code: MN67564_ENG
INFO:
www.adfweb.com
Revision 1.100
Page 20 of 29
