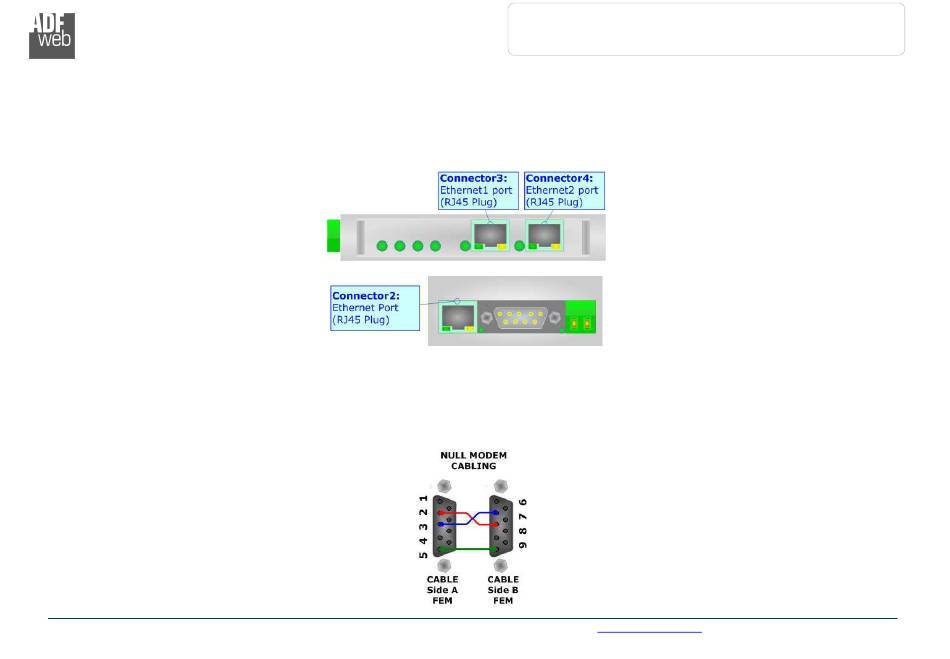

ETHERNET:
The Ethernet connection must be made using Connector2/3/4 of HD67564-A1/HD67564M with at least a Category 5E cable. The maximum
length of the cable should not exceed 100m. The cable has to conform to the T568 norms relative to connections in cat.5 up to 100 Mbps. To
connect the device to an Hub/Switch is recommended the use of a straight cable, to connect the device to a PC/PLC/other is recommended
the use of a cross cable.
RS232 (only for HD67564M):
The connection from RS232 socket to a serial port (example one from a personal computer), must be made with a Null Modem cable (a
serial cable where the pins 2 and 3 are crossed). It is recommended that the RS232C Cable not exceed 15 meters.
The serial port is used for programming the device.
