HP Vectra Technical Reference Manual page 82

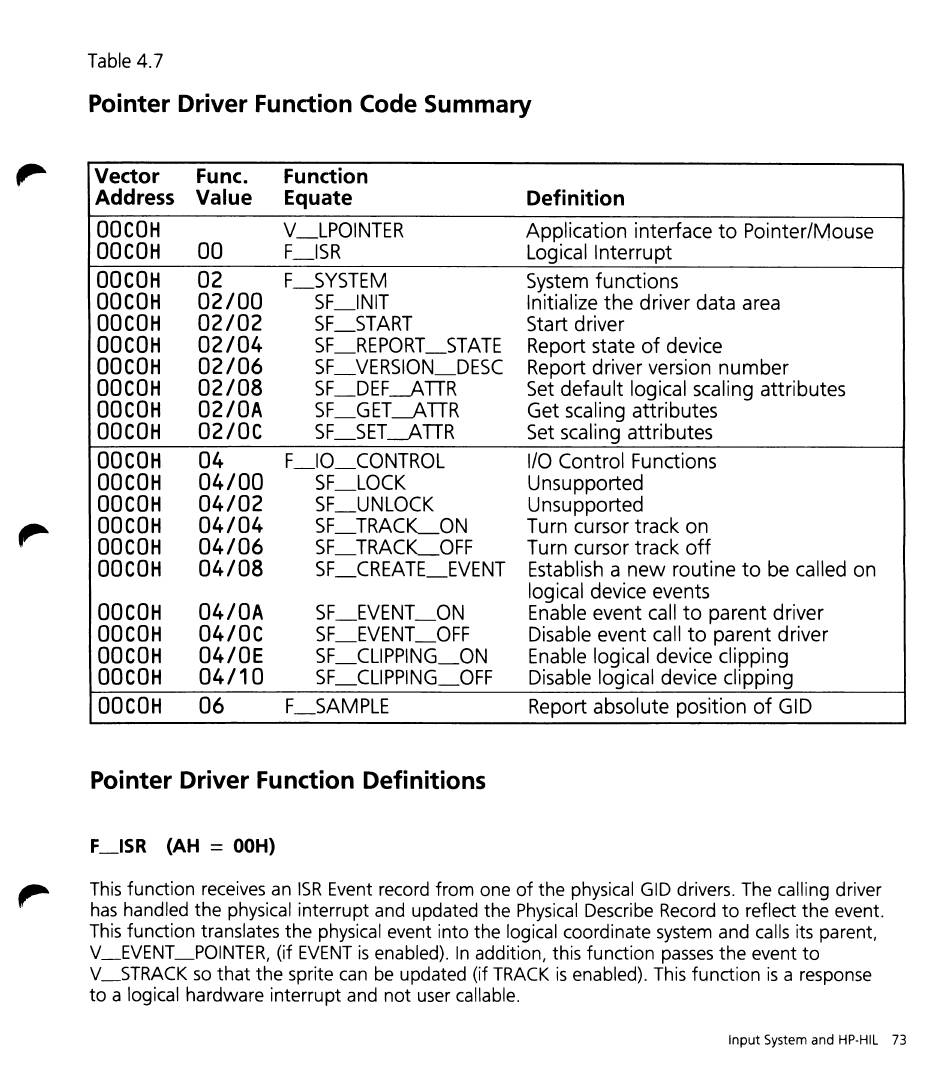

Table 4.7
Pointer Driver Function Code Summary
Vector Func. Function
Address Value Equate
Definition
OOCOH
V_LPOINTER
Application interface to Pointer/Mouse
OOCOH 00
F_ISR
logical Interrupt
OOCOH 02
F_SYSTEM
System functions
OOCOH
02/00
SF_INIT
Initialize the driver data area
OOCOH 02/02
SF_START Start driver
OOCOH
02/04
SF_REPORT_STATE
Report state of device
OOCOH 02/06
SF_VERSION_DESC Report driver version number
OOCOH
02/08
SF_DEF
--.-A
TIR
Set default logical scaling attributes
OOCOH 02/0A
SF_G ET
--.-A
TIR
Get scaling attributes
OOCOH 02/0C
SF_SET
--.-A
DR Set scaling attributes
OOCOH 04
F_IO_CONTROL I/O Control Functions
OOCOH 04/00
SF_LOCK
Unsupported
OOCOH
04/02
SF_UNLOCK
Unsupported
OOCOH 04/04
SF_TRACLON Turn cursor track on
OOCOH
04/06
SF_TRACLOFF Turn cursor track off
OOCOH 04/08
SF_CREATE_EVENT Establish a new routine to be called on
logical device events
OOCOH
04/0A
SF_EVENT_ON
Enable event call to parent driver
OOCOH 04/0C
SF_EVENT_OFF Disable event call to parent driver
OOCOH 04/0E
SF_CLIPPING_ON
Enable logical device clipping
OOCOH 04/10
SF_Cll PPI NG_OFF Disable logical device clipping
OOCOH 06
F_SAMPlE Report absolute position of GID
Pointer Driver Function Definitions
F_ISR (AH
=
OOH)
This function receives an ISR Event record from one of the physical GID drivers. The calling driver
has handled the physical interrupt and updated the Physical Describe Record to reflect the event.
This function translates the physical event into the logical coordinate system and calls its parent,
V_EVENT_POINTER, (if EVENT is enabled). In addition, this function passes the event to
V_STRACK so that the sprite can be updated (if TRACK is enabled). This function is a response
to a logical hardware interrupt and not user callable.
Input System
and
HP-HIL 73
