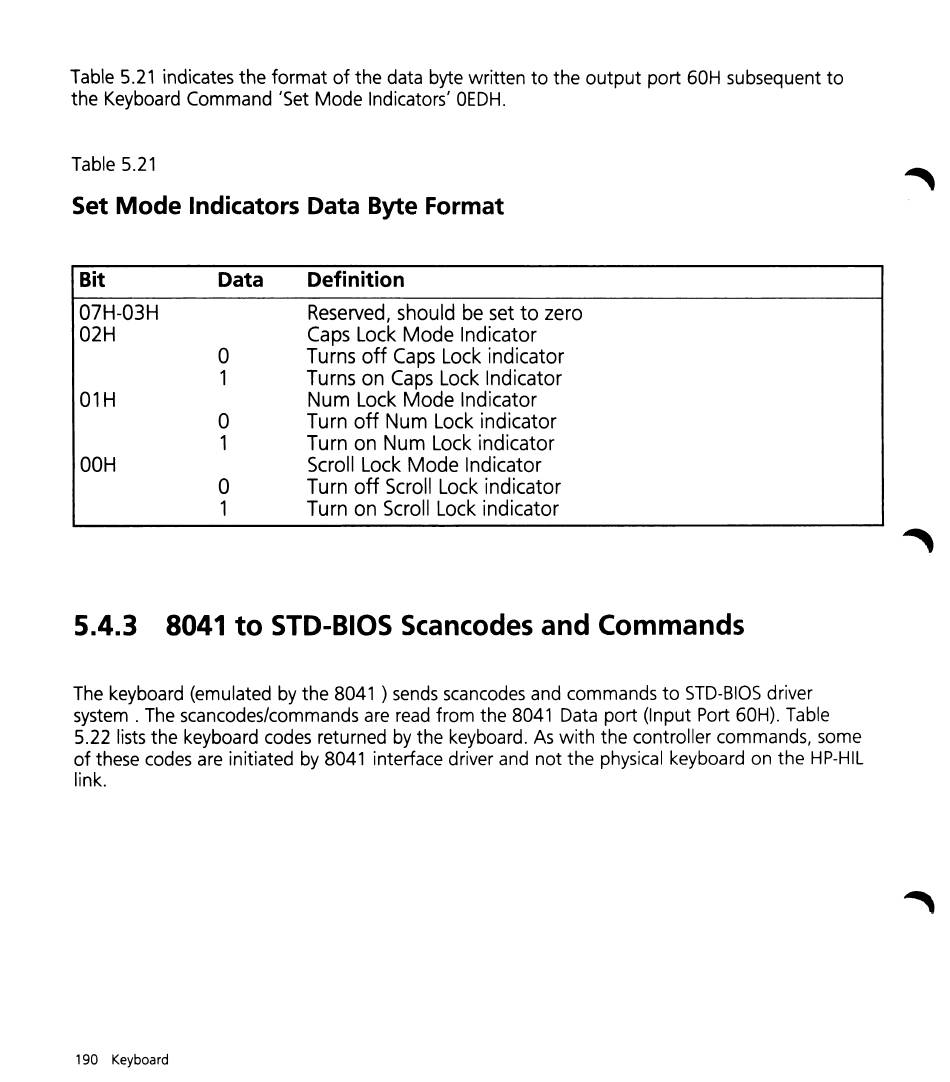

Table 5.21 indicates the format of the data byte written to the output port 60H subsequent to
the Keyboard Command 'Set Mode Indicators'
OEDH.
Table 5.21
Set Mode Indicators Data Byte Format
Bit Data Definition
07H-03H
Reserved, should be set to zero
02H
Caps Lock Mode Indicator
0
Turns off Caps Lock indicator
1
Turns on Caps Lock Indicator
01H
Num Lock Mode Indicator
0
Turn off Num Lock indicator
1
Turn on Num Lock indicator
OOH
Scroll Lock Mode Indicator
0
Turn off Scroll Lock indicator
1
Turn on Scroll Lock indicator
5.4.3 8041 to 5TO-8105 Scancodes and Commands
The keyboard (emulated by the 8041 ) sends scancodes and commands to STD-BIOS driver
system. The scancodes/commands are read from the 8041 Data port (Input Port 60H). Table
5.22 lists the keyboard codes returned by the keyboard. As with the controller commands, some
of these codes are initiated by 8041 interface driver and not the physical keyboard on the HP-HIL
link.
