 DHCP Server: If DHCP is set to on, the following parameters need to be configured:
 Address: IP address.
 Netmask: IP mask.
 Gateway: Gateway.
 Primary DNS server: Address of the primary DNS server.
 Secondary DNS server: Address of the secondary DNS server.
6�3� - MODEM SETUP
This section is displayed when the line-EDS-iMonitor is connected to a line-M-3G, a device that adds
3G connectivity to the line-EDS-iMonitor device.
APN: Name of the access point to the 3G modem.
User: 3G network username.
Password: Network password.
PIN: PIN to access the 3G network
Reset timer (hours): Time between scheduled modem reboots (in hours). Example: When set to 24,
the modem reboots once a day.
Modem status: pressing on the link displays the connection status.
Modem log: pressing on the link displays the modem activity log.
6�4� - DYNAMIC DNS SETUP
This section is displayed when the line-EDS-iMonitor is connected to a line-M-3G, a device that adds
3G connectivity to the line-EDS-iMonitor device.
Server type: This section is used to set up a dynamic DNS: DynDNS. If set to on, the following
parameters need to be configured:
 User: DNS username.
 Password: Password.
 Hostname: Device name.
Instruction Manual

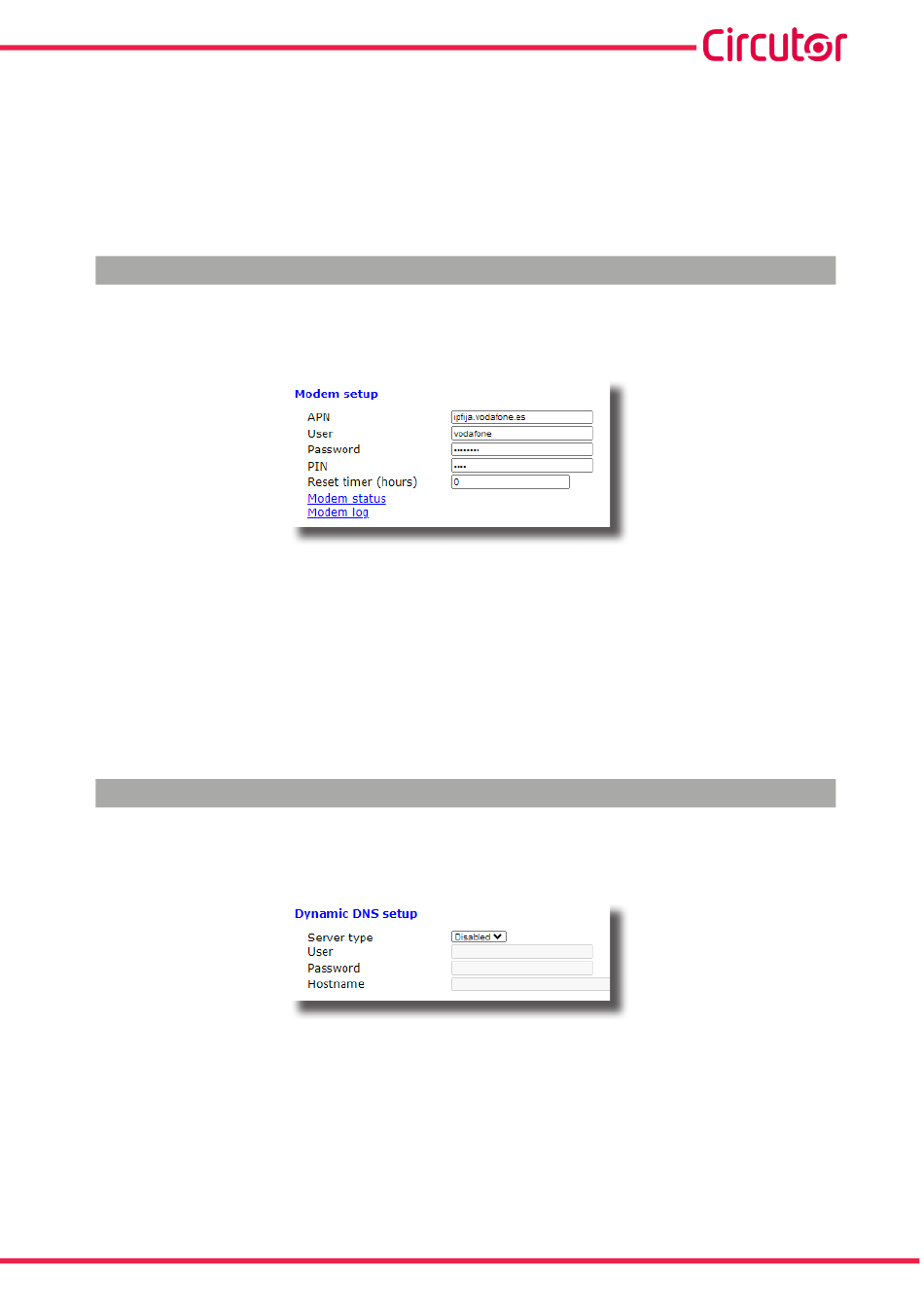

Figure 19: Configuration website: Modem setup�
Figure 20: Configuration website: Dynamic DNS setup�
