iMonitor is a monitoring system specially designed to display the energy status of an installation.
The iMonitor page is accessible via port 3000 on the IP configured in the line-EDS-iMonitor, i.e., xxx�
xxx�xxx:3000. Where xxx�xxx�xxx is the IP address.
Note: To view or modify the line-EDS-iMonitor settings, see
"6. - line-EDS-iMonitor CONFIGURATION
WEBSITE".

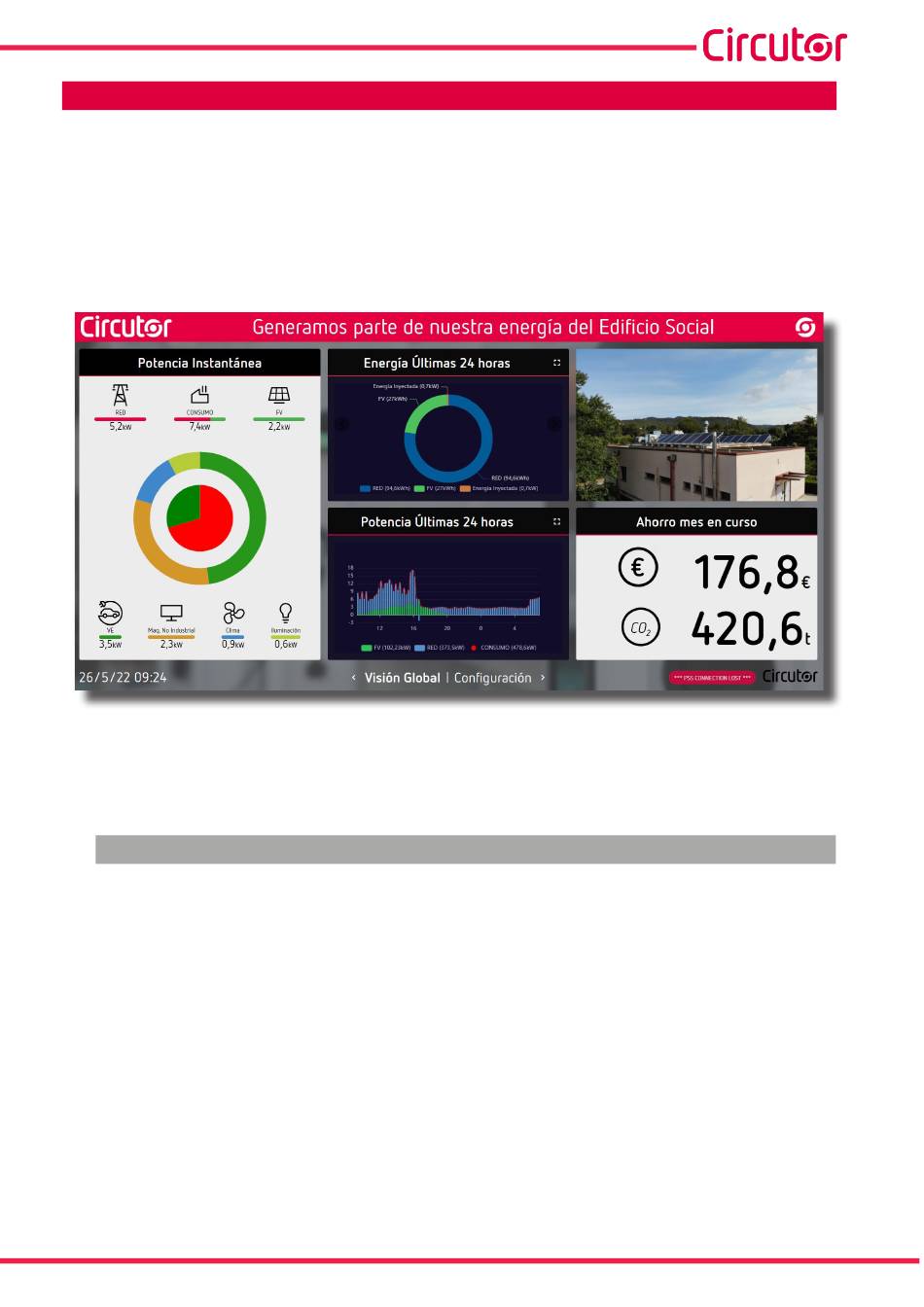

Figure 28: iMonitor main screen�
iMonitor shows all the data selected by the customer from the display screens, such as consumption
and generation (self-consumption), graphs of electrical variables and energy savings. It also has the
ability to show the status of other systems installed.
7�1� - OVERVIEW
The widgets that represent the various types of data that the monitoring system can display are shown
on the main screen, called Overview.
The data and display parameters of the Overview screen are fully customizable using the Setup menu.
shows an example of the design of the Circutor installation.
Figure 28
