4�3� - DIGITAL OUTPUTS
The device has 2 digital outputs, optoisolator NPN transistors (terminals 19, 20 and 21 in Figure 13
16
Table 7: WLAN LED�
LED
On (blue color)
Connection to a Wi-Fi network
WLAN
Flashing (blue color)
Activity in the Wi-Fi network
Table 8: ALARM LED�
LED
On (red color)
ALARM
Alarm activated
Table 9: SLAVES LED
LED
On (red color)
SLAVES
Slave device not communicating
WLAN
LAN
19
C
2
Salidas de transistor
Transistor outputs

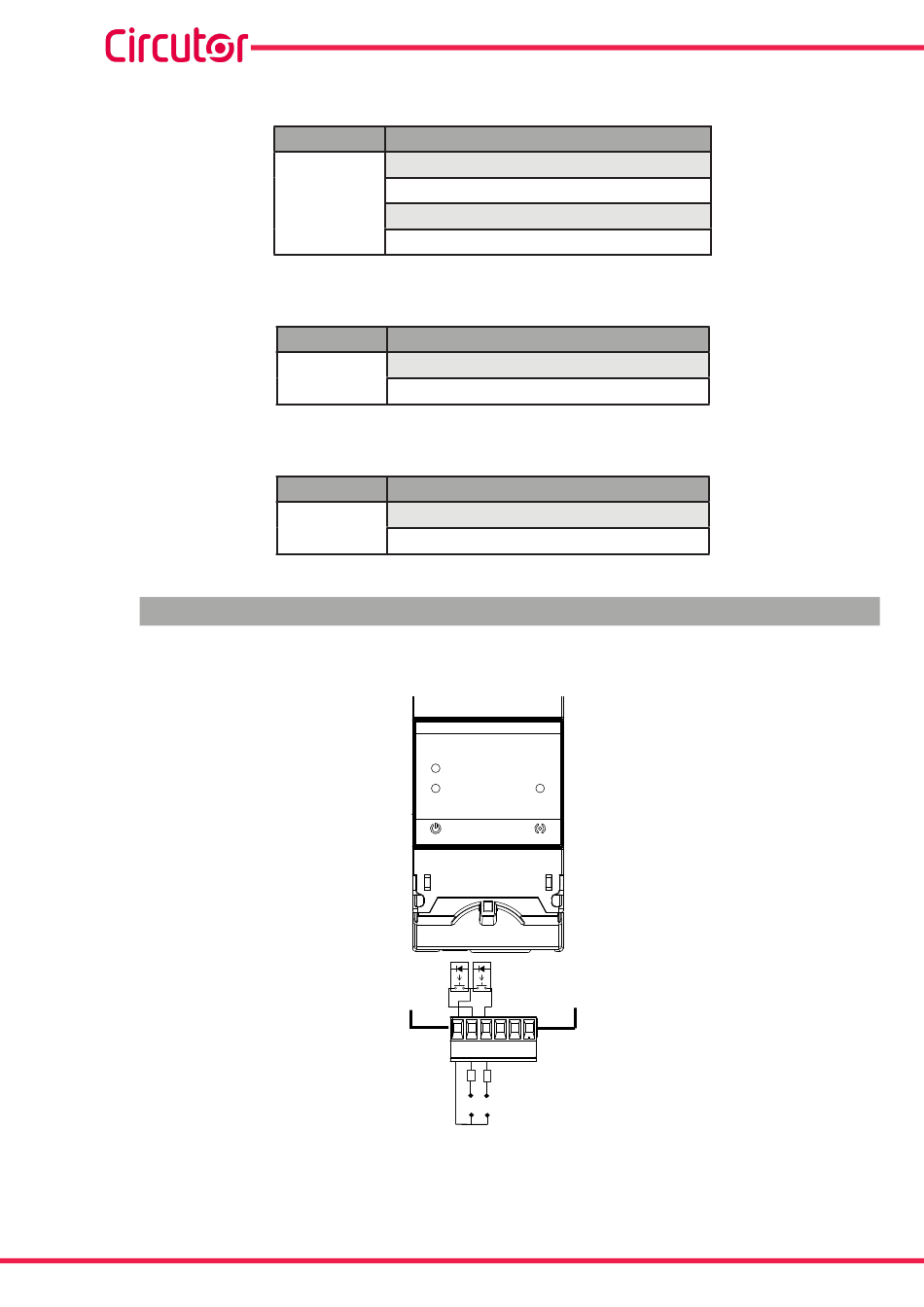

Figure 13: Digital transistor outputs
Description
Description
Description
line-EDS
SLAVES
21
Carga
Load
Fuente externa
External load
1
line-EDS-iMonitor
).
