Defining Ext3-U3-T / Ext3-U3-R Usb 3.2 Gen 1 Extender−Receiver; Defining Ext3-U3-T; Defining Ext3-U3-R - Kramer EXT3-U3-T User Manual

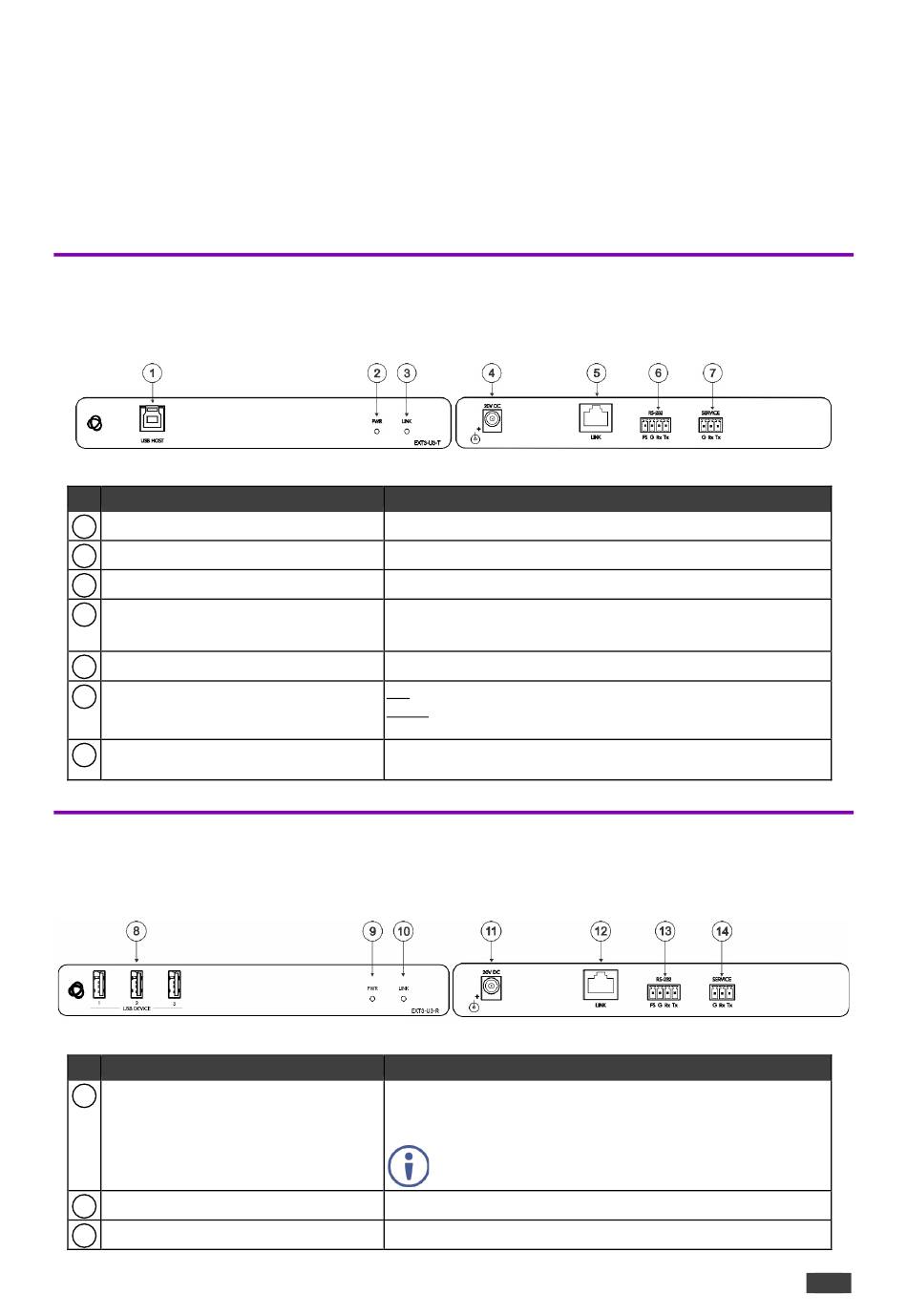

Defining EXT3-U3-T / EXT3-U3-R
USB 3.2 Gen 1
Extender−Receiver

Defining EXT3-U3-T

This section definesEXT3-U3-T.
# Feature
USB HOST Type B Port
1
PWR LED
2
LINK LED
3
20V DC Power Connector
4
Link RJ-45 Connector
5
RS-232 4-pin Terminal Block Connector
6
Service 3-pin Terminal Block Connector
7
(G, Rx, Tx)

Defining EXT3-U3-R

This section defines EXT3-U3-R.
# Feature
USB 3 Type A Ports (1 to 3)
8
PWR LED
9
LINK LED
10
EXT3-U3-T/R – Defining EXT3-U3-T / EXT3-U3-R USB 3.2 Gen 1 Extender−Receiver
Figure 1: EXT3-U3-T Transmitter
Function
Connect to USB Host.
Lights green when powered.
Lights blue when a link is established.
Connect to the supplied power adapter (when EXT3-U3-T is not
powered by PoC).
Connect to the LINK IN port on the EXT3-U3-R.
FS: Send the FSYNC signal from the transmitter to the receiver.
Rx, Tx: RS-232 interface pass-through extension (supports any
baud rate up to 115200).
Connect for firmware upgrade.
Figure 2: EXT3-U3-R Receiver
Function
Connect to USB local devices (for example, a USB camera, a
sound-bar, microphone, etc.).
All 3 USB connectors on the receiver can provide power.
Lights green when powered.
Lights blue when a link is established.
