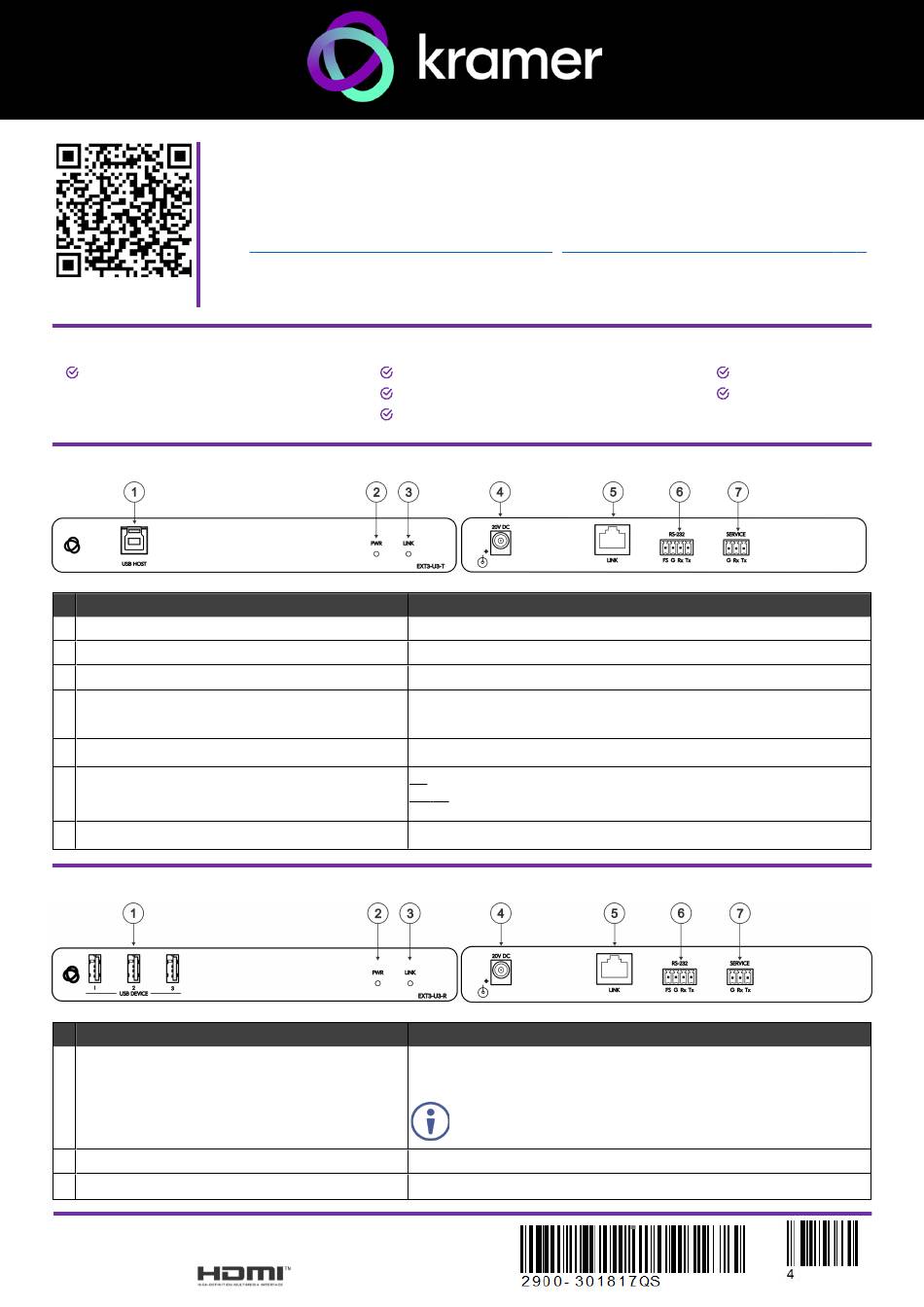

EXT3-U3-T / EXT3-U3-R Quick Start Guide
This guide helps you install and use your EXT3-U3-T / EXT3-U3-R for the first time.
Go to
to download the latest user manual and check if firmware upgrades are available.
Scan to go to website
Step 1: Check what's in the box
EXT3-U3-T USB Transmitter / EXT3-U3-R
Receiver
Step 2: Get to know your EXT3-U3-T
#
Feature
1
USB HOST Type B Port
2
PWR LED
3
LINK LED
4
20V DC Power Connector
5
Link RJ-45 Connector
6 RS-232 4-pin Terminal Block Connector
7
Service 3-pin Terminal Block Connector (G, Rx, Tx)
Step 3: Get to know your EXT3-U3-R
#
Feature
1
USB 3 Type A Ports (1 to 3)
2
PWR LED
3
LINK LED
EXT3-U3-T / EXT3-U3-R
Quick Start
http://www.kramerav.com/downloads/EXT3-U3-T
1 C-USB/AB-6 Cable (for EXT3-U3-T only)
1 Power adapter and cord (for EXT3-U3-T only)
1 Quick start guide
Function
Connect to USB Host.
Lights green when powered.
Lights blue when a link is established.
Connect to the supplied power adapter (when EXT3-U3-T is not powered
by PoC).
Connect to the LINK IN port on the EXT3-U3-R.
FS: Send the FSYNC signal from the transmitter to the receiver.
Rx, Tx: RS-232 interface pass-through extension (supports any baud rate
up to 115200).
Connect for firmware upgrade.
Function
Connect to USB local devices (for example, a USB camera, a sound-bar,
microphone, etc.).
Lights green when powered.
Lights blue when a link is established.
/
http://www.kramerav.com/downloads/EXT3-U3-R
All 3 USB connectors on the receiver can provide power.
P/N:
4 Rubber feet
1 Bracket set
Rev:
Advertisement
Related Manuals for Kramer EXT3-U3-T
Summary of Contents for Kramer EXT3-U3-T
- Page 1 EXT3-U3-T / EXT3-U3-R Quick Start Guide This guide helps you install and use your EXT3-U3-T / EXT3-U3-R for the first time. Go to http://www.kramerav.com/downloads/EXT3-U3-T http://www.kramerav.com/downloads/EXT3-U3-R to download the latest user manual and check if firmware upgrades are available. Scan to go to website Step 1: Check what’s in the box...
- Page 2 It is recommended that the cable ground shielding be connected/soldered to the connector shield. Blue / White Green Brown / White Brown To achieve specified extension distances, use the recommended Kramer cables available at https://www1.kramerav.com/gc/products/cables_connectors Using third-party cables may cause damage!
- Page 3 Disconnect the power and unplug the unit from the wall before installing. When EXT3-U3-R is powered by EXT3-U3-T (using PoC), the total current of all connected USB devices cannot exceed 3.25 amps. When EXT3-U3-R is powered by a local PSU, the total current of all connected USB devices cannot exceed 5 amps.
