INSTALLATION INSTRUCTIONS

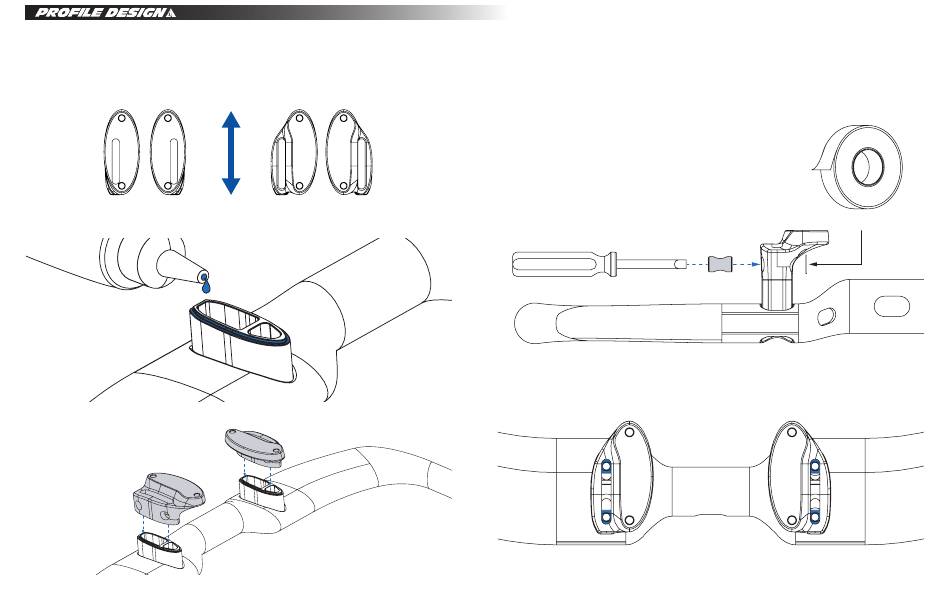

*Bracket face to the front
Bracket - 5 mm offset
1.Assemble the riser stack and wedges that you require on the basebar, with a small amount of grease
between each part.
2.Mount the bracket on the riser stack.
Front
Rear
Bracket - 15 mm offset
3.Insert the barrels in the bracket, it may be helpful to place a strip of insulation tape on the non-slotted
side so the barrels stay in place during installation.
4.Insert the bolts using the 5mm hex key.
5.Check the bolt length by looking down on the bracket – the top of the bolt should be at least at the top
of the barrel.
ASC PRO Aerobar
Insulation Tape
