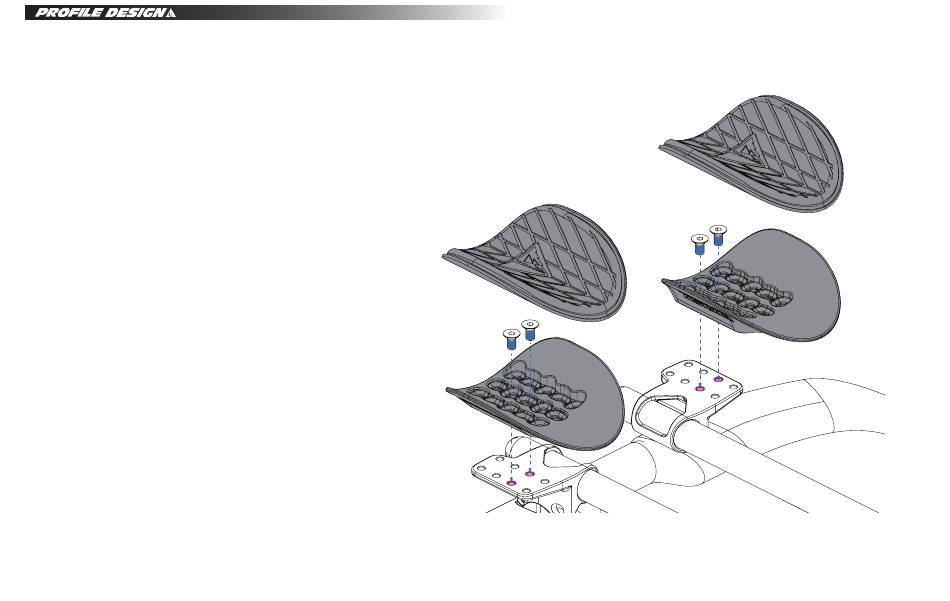

INSTALLATION INSTRUCTIONS
1. Apply a light coating of grease to the surface of the armrest mount to protect
against corrosion.
2. Fasten the armrests to the brackets using the M6x15mm countersunk bolts,
note that the armrests have an offset design so care is required to ensure each
side is positioned in the same way.
3. Torque the bolts to 4.7Nm using the torque wrench.
4. Apply a light coating of grease to the surface of the bolts as a protective layer
against the effects of sweat.
5. Attach the cushion by placing carefully on hook and loop backing of the
armrest and hold firmly for 30 seconds. Repeat for the other armrest. Note
that the cushions on these models of armrest are symmetrical, so it doesn't
matter which side each cushion is applied to.
•Torque the bolts to 4.7Nm
Ergo+ & Race+ Armrest Kits
•Torque the bolts to 4.7Nm
