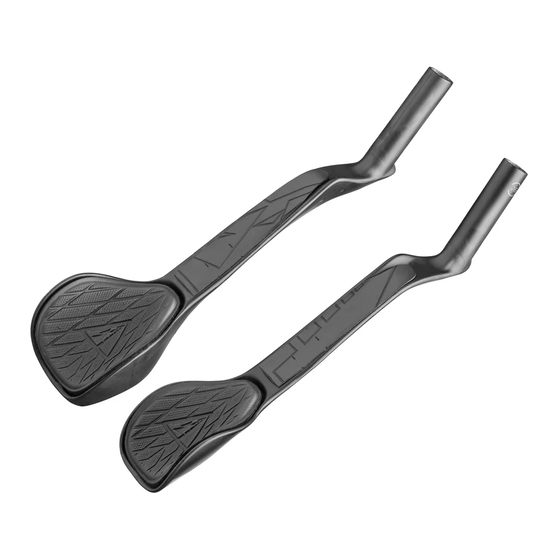

- Page 1 ASC PRO Aerobar ASC PRO AEROBAR REVISION 01-11-21-2024...
- Page 2 INTRODUCTION Thank you for purchasing this set of Profile Design Aerobar Extensions. These instructions apply to the ASC Pro in 325mm, 350mm and 375mm. Please read these instructions thoroughly before attempting to install this item. Proper installation is required for compliance with Profile Design's warranty policy.
- Page 3 • Two (2) Barrel - NORMAL • Two (2) Barrel - CUT • Four (4) Washers Note that riser bolts are not included with the ASC Pro kits. These can be ordered individually or as part of the A3 Riser kits.
- Page 4 Optional accessories compatible with these extensions: • A3 Riser kits (all models) • ASC Pro Computer Mount • Heat Shrink Wrap WARNING: Periodically check the Aerobar for damage, particularly for scratches through the anodised coating (aluminium parts) or clearcoat (carbon...
- Page 5 ASC PRO 43 Aerobar Extensions QTY. Ref.# Part.# Part Description Req. 852314 Extension – ASC PRO 375mm left side 852315 Extension – ASC PRO 375mm right side 852313 Extension – ASC PRO 350mm left side 852312 Extension – ASC PRO 350mm right side 852310 Extension –...
- Page 6 ASC PRO Aerobar COMPONENT LIST ASC PRO Aerobar Bracket Kit - offset 5mm QTY. Ref.# Part.# Part Description Req. 189391 Bracket -Left side 5 mm offset 189392 Bracket -Right side 5 mm offset 274461 Barrel - NORMAL 274462 Barrel - CUT...
- Page 7 ASC PRO Aerobar PART DRAWINGS Bracket - 15 mm offset Extension ASC PRO 375mm 57 mm 36 mm 33 mm 72 mm Bracket - 5 mm offset 386 mm 57 mm Extension ASC PRO 350mm 32 mm 33 mm 72 mm...
- Page 8 ASC PRO Aerobar PRODUCT SPECIFIC SETUP LIMITATIONS...
- Page 9 ASC PRO Aerobar PRODUCT SPECIFIC SETUP LIMITATIONS Switch adapter...
- Page 10 ASC PRO Aerobar TORQUE SETTINGS Ref.# Location Bolt Size Torque Armrest Bolts M6x16mm 6Nm (53 inlbf) Bracket Bolts M6x15 - 100mm 6Nm (53 inlbf)
- Page 11 ASC PRO Aerobar INSTALLATION INSTRUCTIONS *Bracket face to the front 3.Insert the barrels in the bracket, it may be helpful to place a strip of insulation tape on the non-slotted Front side so the barrels stay in place during installation.
- Page 12 ASC PRO Aerobar 6.Tighten the riser bolts to 6Nm using the Torque wrench and 5mm hex key. 8. Place the extension on the bracket and use the 4mm hex key to install the mounting bolts. *Torque the bolts to 6Nm...
- Page 13 ASC PRO Aerobar 9. Adjust the rotation of the extensions to achieve the desired grip spacing. 10. Tighten the extension mounting bolts to 6Nm using the Torque wrench and 4mm hex key. *Torque the bolts to 6Nm 11. Install the shifters and shifter wires as per the manufacturer instructions.
- Page 14 ASC PRO Aerobar 12. Profile Design Heat Shrink Wrap is recommended for the grips. 13. Install the elbow and forearm pads. Heat Shrink Wrap...
- Page 15 ASC PRO Aerobar HOW TO CUT THE GRIPS 1. Carefully determine the required grip length by checking the height of the grip and shifters compared to the UCI regulations. Do not cut more than 30mm off the grips 2. Mark the point at which you wish to make a cut.
- Page 16 • Profile Design Worldwide Two Year Limited Warranty. • Profile Design, LLC (distributor) warrants to the original retail purchaser ("you") that the Profile Design product for which you received this warranty is free from defects in material and workmanship for (2) two years from the date of original retail purchase. For more details on this warranty, its exclusions and/or how to make a claim under the warranty please call +1 310.747.0085 extension 161 or visit...
- Page 17 ASC PRO Aerobar 2677 El Presidio Street Long Beach, CA 90810 Ph: 310-884-7756 www.profile-design.com © Profile Design LLC...
