Summary of Contents for Profile Design A3

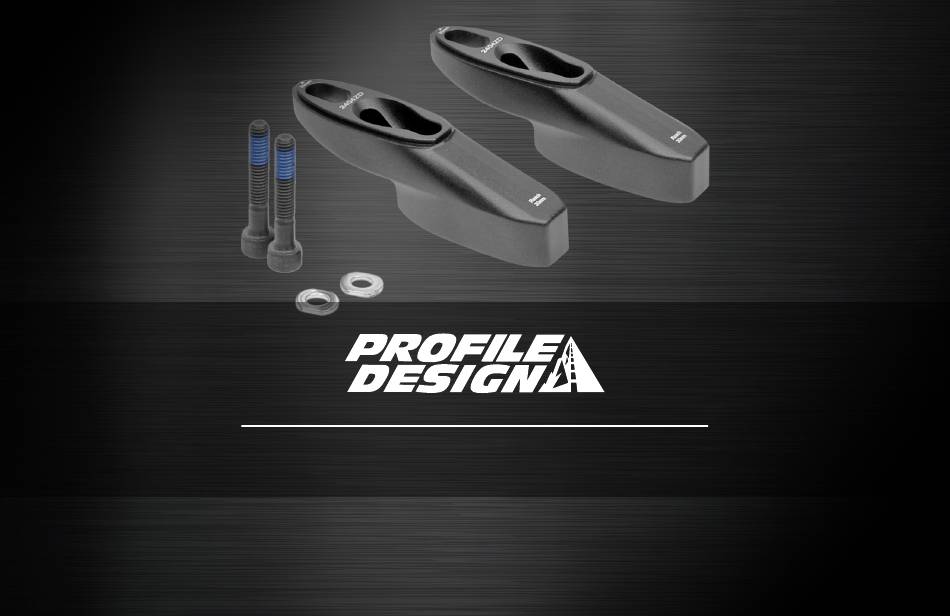

- Page 1 A3 Reach Extender A3 REACH EXTENDER REVISION 01-08-02-2024...
-
Page 2: Tools And Materials Required
Please read these instructions thoroughly before attempting to install this item. Proper installation is required for compliance with Profile Design's warranty policy. If you are not familiar with installation of Aerobars or their accessories, please seek the assistance of your local Profile design dealer by logging on to www.profile-design.com and using "dealer search"... - Page 3 If anything is missing from the Riser kit please contact your dealer. Please note that threaded areas have been pre-treated by Profile Design during production with a special blue thread locking compound. This special compound is easy to detect on the threads of all bolts provided. If you cannot detect this thread locking compound or you are re-installing the bolt, re-apply a suitable thread locking compound as available from Loctite®...
-
Page 4: Component List
A3 Reach Extender COMPONENT LIST QTY. Ref.# Part.# Part Description Req. 274480 Adapter - PFD A3 REACH EXTENDER Alloy Black 313530 M6x35SHB BK w/nylock 275674 Washer 6x12x1.5 UCP... -
Page 5: Part Drawings
A3 Reach Extender PART DRAWINGS 86 mm 52 mm... - Page 6 Before riding, ensure that the bolts are tightened to the torque specified in the Instruction Sheet. CAUTION Rear Middle Front Rear Middle Front A2 BRIDGE 5MM A3 BRIDGE 40MM ( With A2 BRIDGE 5MM ) ( With A3 BRIDGE 5MM )
- Page 7 A3 Reach Extender BRACKET BOLT LENGTH&TORQUE SETTINGS Basebar : AERIA ULT AERIA ULT RACE BRACKET Bolt : M6 Head & AERIA ULT STANDER BRACKET Unit : MM Front / Middle / Rear each needs 2pcs A2 BRIDGE 5MM Torque A3 Riser(mm)
- Page 8 A3 Reach Extender BRACKET BOLT LENGTH&TORQUE SETTINGS Basebar : WING / 20 Tilt Degree Wedges 5+2+3 Wedges (-5)+(-1) (-5)+(-2) (-5)+(-3) (-5)+(-4) (-5)+(-2)+(-3) (with Switch Adapter) Bolt : M6 Head ASC PRO 15MM OFFSET BRACKET ASC PRO 15MM OFFSET BRACKET Unit : MM &...
- Page 9 A3 Reach Extender BRACKET BOLT LENGTH&TORQUE SETTINGS Basebar : AERIA ULT Tilt Degree Wedges 5+2+3 Wedges (-5)+(-1) (-5)+(-2) (-5)+(-3) (-5)+(-4) (-5)+(-2)+(-3) (with Switch Adapter) Bolt : M6 Head ASC PRO 15MM OFFSET BRACKET ASC PRO 15MM OFFSET BRACKET Unit : MM &...
-
Page 10: Installation Instructions
2.Assemble the risers with the Reach Extender at the top. to the contact surfaces of the risers. •Note that the extender cannot be mounted in the rearwards position. •If fitting to an Aeria Ultimate bar or other A2 platform bar, install the A2-A3 adaptor under the risers. - Page 11 A3 Reach Extender 3. If using electronic gears, route the cable through the basebar and risers prior to installing the 5.Then fit the aerobar bracket on top or riser of the Reach Extender. Reach Extender. 4.First install the rear bolt using a 5mm hex wrench.
- Page 12 A3 Reach Extender 7.Install the middle bolt using the 5mm hex wrench. 8.Install the front bolt using the 5mm hex wrench. *Torque the bolts to 6Nm *Torque the bolts to 6Nm *Torque the bolts to 6Nm *Torque the bolts to 6Nm •Use the locator groove on the side of the threaded barrel (in the aerobar bracket) to aid in aligning...
-
Page 13: Warranty Policy
• Profile Design Worldwide Two Year Limited Warranty. • Profile Design, LLC (distributor) warrants to the original retail purchaser ("you") that the Profile Design product for which you received this warranty is free from defects in material and workmanship for (2) two years from the date of original retail purchase. For more details on this warranty, its exclusions and/or how to make a claim under the warranty please call +1 310.747.0085 extension 161 or visit... - Page 14 A3 Reach Extender 2677 El Presidio Street Long Beach, CA 90810 Ph: 310-884-7756 www.profile-design.com © Profile Design LLC...
