Profile Design ASC PRO Manual page 6

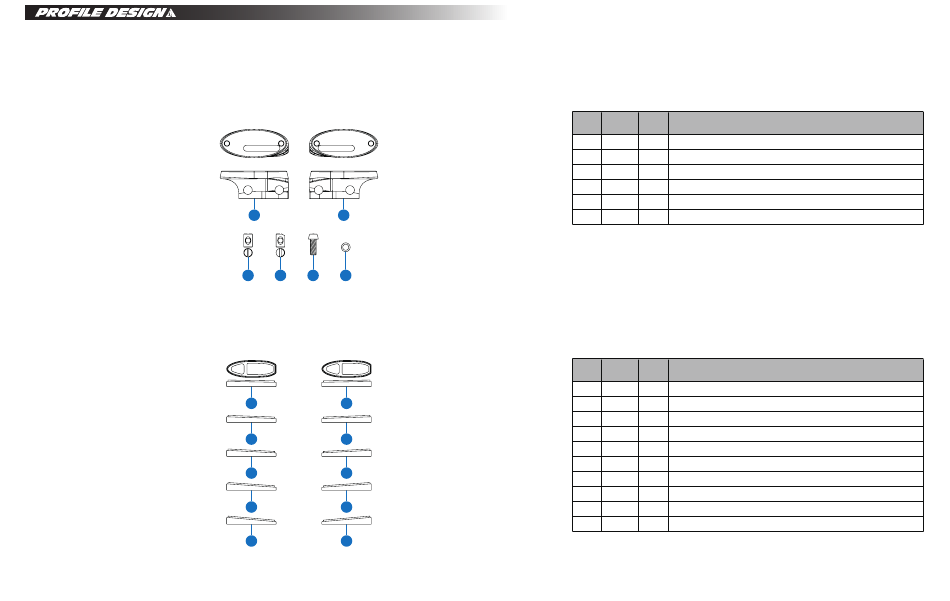

COMPONENT LIST
01 02
03 04 05 06
01 06
02 07
03 08
04 09
05 10
ASC PRO Aerobar Bracket Kit - offset 5mm
QTY.
Ref.# Part.#
Req.
1 189391 1
Bracket -Left side 5 mm offset
2 189392 1
Bracket -Right side 5 mm offset
3 274461 2
Barrel - NORMAL
4 274462 2
Barrel - CUT
5 313610 4
Bolts - M6x16mm
6 275670 4
Washer
ASC PRO Aerobar Wedges (positive or negative)
QTY.
Ref.# Part.#
Req.
1 274483 2
+1° aluminium wedges
2 274484 2
+2° aluminium wedges
3 274485 2
+3° aluminium wedges
4 274486 2
+4° aluminium wedges
5 274487 2
+5° aluminium wedges
6 274488 2
-1° aluminium wedges
7 274489 2
-2° aluminium wedges
8 274490 2
-3° aluminium wedges
9 274491 2
-4° aluminium wedges
10 274492 2
-5° aluminium wedges
ASC PRO Aerobar
Part Description
Part Description
5
