6-7.Connector

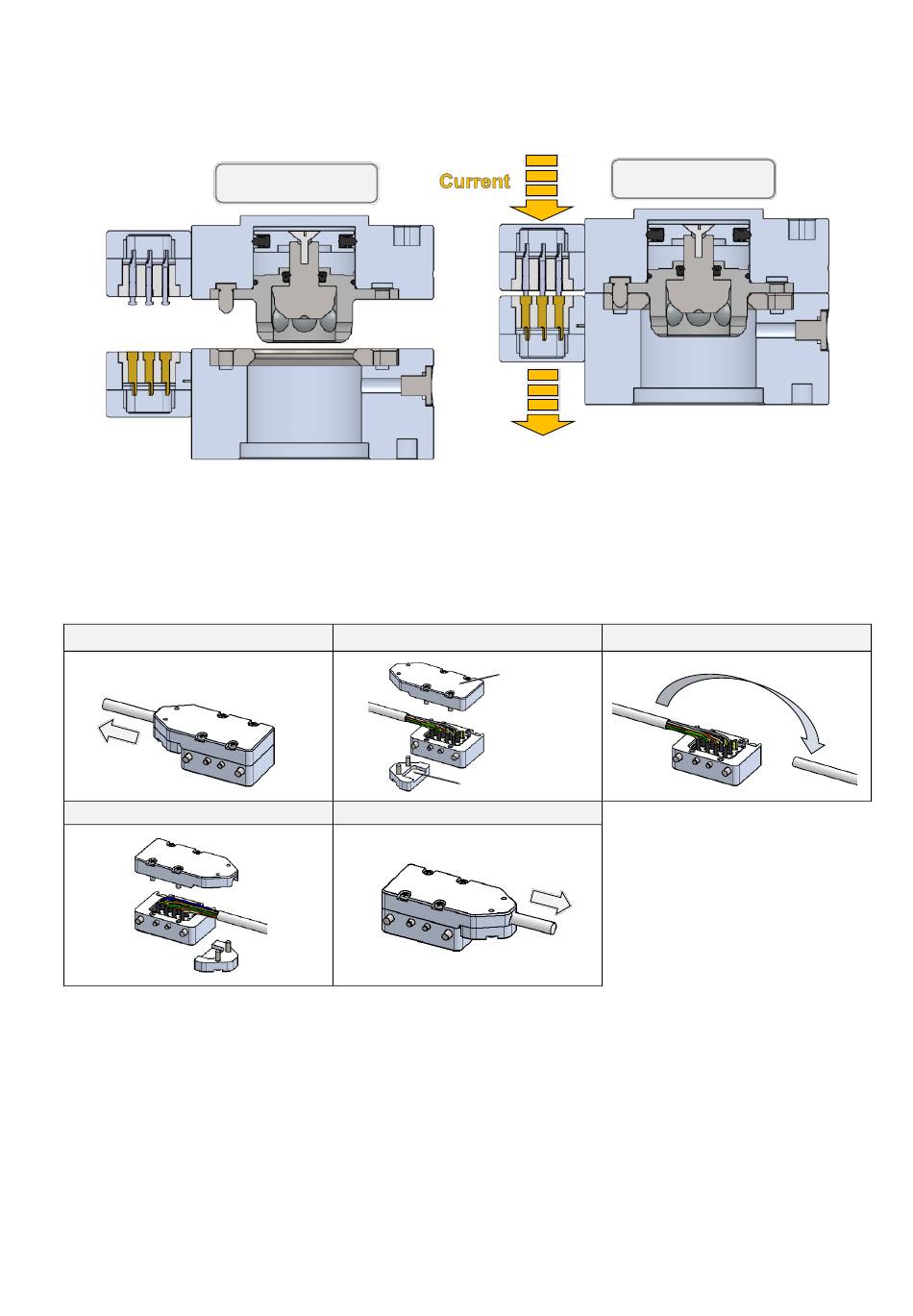

Continuity of connector
◼
Due to connection between the main plate and tool plate, the connectors communicate with each other.
◼ Change of cable removal direction
Dismount the electrode cover and lead cover.
1)
Move the cable in the opposite direction.
2)
※ If you apply an excessive force, the soldered part may be broken. Carefully conduct this work.
Mount the electrode cover and lead cover. （Tightening torque：0.18±0.02N・m）
3)
Condition at time of shipment
Cable removal direction
3)
Released state
1)
Electrode cover
Lead cover
After change
Cable removal direction
- 38 -
Connected state
2)
