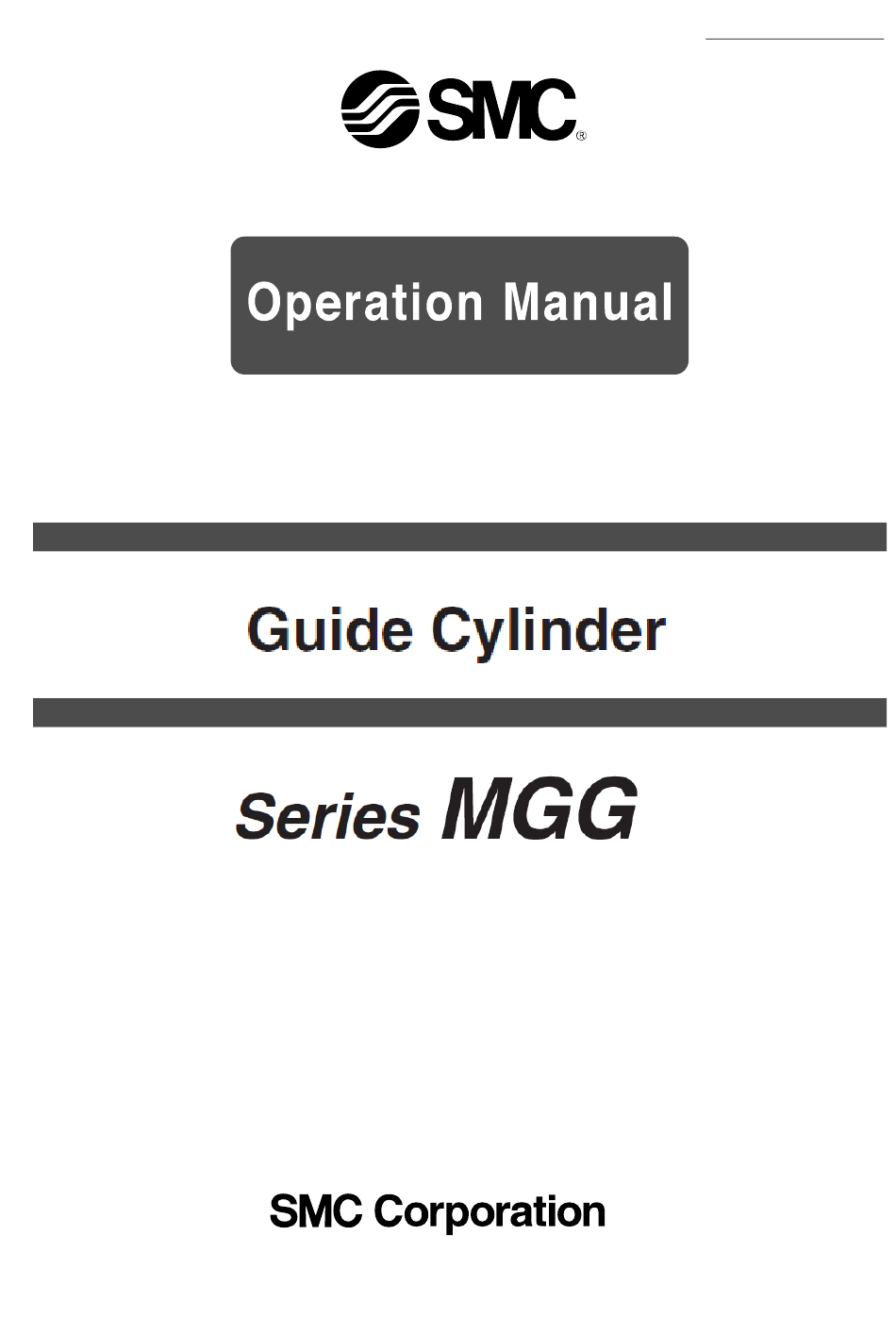

Page 1
No. MGG*-OM0255Q PRODUCT NAME MODEL / Series / Product Number...
Page 2
Contents Safety Instructions Product feature 1.How to order 2. Stroke 3.Specifications 4.Shock Absorber Specifications 5.Weight 6.Weight of Moving Parts 7.Design and Selection 8.Mounting 9.Piping 10.Lubrication 11.Air Supply 12.Operating Environment 13.Maintenance 14.Troubleshooting 15.Construction 16.Auto switches - 1 -...
Page 3
Safety Instructions These safety instructions are intended to prevent hazardous situations and/or equipment damage. These instructions indicate the level of potential hazard with the labels of “Caution,” “Warning” or “Danger.” They are all important notes for safety and must be followed in addition to International Standards (ISO/IEC) , and other safety regulations.
Page 4
Safety Instructions Caution 1.The product is provided for use in manufacturing industries. The product herein described is basically provided for peaceful use in manufacturing industries. If considering using the product in other industries, consult SMC beforehand and exchange specifications or a contract if necessary. If anything is unclear, contact your nearest sales branch.
Page 5
Product features Integration of a basic cylinder and guide rods Linear transfer unit with lateral load resistance and high precision non-rotating mechanism Guide Cylinder MGG Series Ø20, Ø25, Ø32, Ø40, Ø50, Ø63, Ø80, Ø100 Two types of guide rod bearing...
Page 6
1. How to Order M9BW Guide cylinder Made to Order Bearing types Number of auto switches Slide bearing 2 pcs Ball bushing 1 pc. "n" pcs. Mounting style Auto switch Basic style Without auto switch Front mounting (built-in magnet) flange style Bore size Cylinder stroke (mm) 20mm...
Page 7
3. Specifications 4. Shock Absorber Specifications Shock absorber model RB1007 RB1412 RB2015 RB2725 Applicable guide cylinder 25,32 40,50,63 80,100 Maximum energy absorption (J) 5.88 19.6 58.8 Stroke absorption (mm) Maximum collision speed (m/s) Maximum operating frequency (cycles/min) * ° Ambient temperature range ( -10 to 80 Extended 4.22...
Page 8
6. Weight of Moving Parts (kg) Bore size (mm) Moving parts basic weight 0.69 1.14 1.61 3.09 5.23 8.29 13.09 18.58 Additional weight per 50mm of stroke 0.109 0.135 0.203 0.326 0.509 0.679 0.948 1.265 Calculating weight of moving parts Example: MGGLB32-500 - Moving parts basic weight --- 1.61 - Additional weight for stroke --- 0.203/50st - Stroke --- 500st...
Page 9
11) Intermediate stops When an intermediate stopped position is performed with a 3-position closed center type/double check valve type directional control valve, it is difficult to achieve accurate and precise stopped positions due to the compressibility of air. Furthermore, since valves and cylinders are not guaranteed for zero air leakage, it may not be possible to hold a stopped position for an extended period of time.
Page 10
7) Install a protective cover. During mounting, handling and operation, the rear plate makes reciprocating movements. Therefore, pay careful attention not to insert your hand, etc., between the cylinder and the rear plate. When you are going to fit this product to the outside of your equipment, take preventative measures such as installing a protective cover. Protective cover installation example Cover mounting bolt Protective cover...
Page 11
8) Stroke adjustment on the extended side If the stroke on the extended side is adjusted due to the movement of the rear plate, assemble the product in accordance with the procedure below. (1) Locate the cylinder horizontally. (2) Loosen the hexagon socket head cap screw and move the rear plate to the desired position. (3) Extend the piston rod and make the rear plate close to the guide body, this is to avoid applying any unnecessary lateral load to the product.
Page 12
9) Re-assembly of the disassembled guide Re-assemble the front plate and rear plate in accordance with the procedure below. (1) Locate the cylinder horizontally. (2) Mount the rod end nut, spring washer, flat washer, front plate and end bracket to the piston rod in order. (3) Hold the width across flats of the piston rod with a wrench while tightening the end bracket until the piston rod reaches the bottom of the thread of the end bracket.
Page 13
10) Lubrication to bearing Lubricate from the grease nipple so that there is no contamination from foreign matter. In addition, use good quality No.2 lithium soap base grease. 11) Mounting orientation: For ceiling mounting (the opening of the rear plate is downwards), the rear plate may interfere with the head side of the basic cylinder due to deflection of the guide rods.
Page 14
Caution 1) When extremely dry air is used as the fluid, degradation of the lubrication properties inside the equipment may occur, resulting in reduced reliability (or reduced service life) of the equipment. Please consult with SMC. 2) Install an air filter. Install an air filter upstream near the valve.
Page 15
4) Removal of equipment, and supply/exhaust of compressed air Before components are removed, first confirm that measures are in place to prevent workpieces from dropping, run-away equipment, etc. Then, cut off the supply pressure and electric power, and exhaust all compressed air from the system using the residual pressure release function.
Page 16
15. Construction Ø Ø 20 to 50 / MGG** - 15 -...
