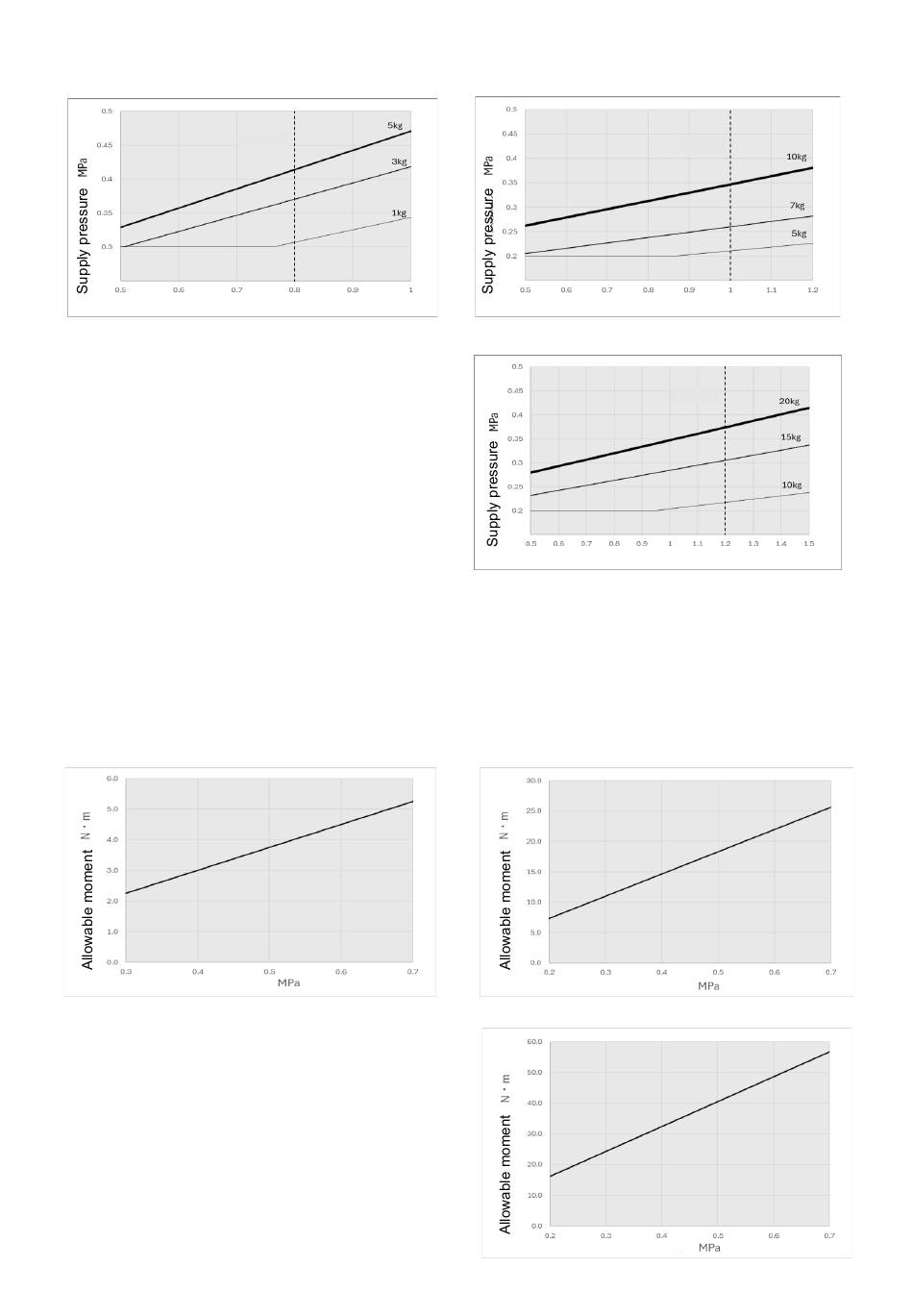

1-3-2.Connection pressure

RMTA1-05**
Recommended clearance
Clearance before coupling mm
※The coupling pressure is a reference value based on the results of in-house experiments. Use only
after confirming the actual Work load and the pressure at the clearance before coupling to ensure a
reliable coupling.

1-3-3. Allowable moment for supply pressure

RMTA1-05**
Pressure
※Allowable moment value will be the design value.
RMTA1-10**
Recommended clearance
Clearance before coupling mm
RMTA1-20**
Recommended clearance
Clearance before coupling mm
RMTA1-10**
RMTA1-20**
- 9 -
