SMC Networks SY3000 Series Manual

Type 10
Side Ported
SY3000/5000/7000
Type 11
Bottom Ported
Refer to pages 160 (SY5000) and
161 (SY7000) for the dimensions
of Type 11/Bottom-ported type.
q
Series
3
SY3000
5
SY5000
7
SY7000
* For mixed mounting, refer to page 165 and
later.
w
Type
10
Side ported
11
Bottom ported
*1 The SY5000 manifold base is used for the
bottom-ported SY3000. When ordering,
refer to the "Plug-in Mixed Mounting Type
Manifold" (from page 165).
* When mixing top-ported configurations,
select from those listed on page 110.
In such cases, use caution as there is also
output on the A and B ports on the base side.
Specify on the manifold specification sheet if
plugs are required for the A and B ports on
the base side.

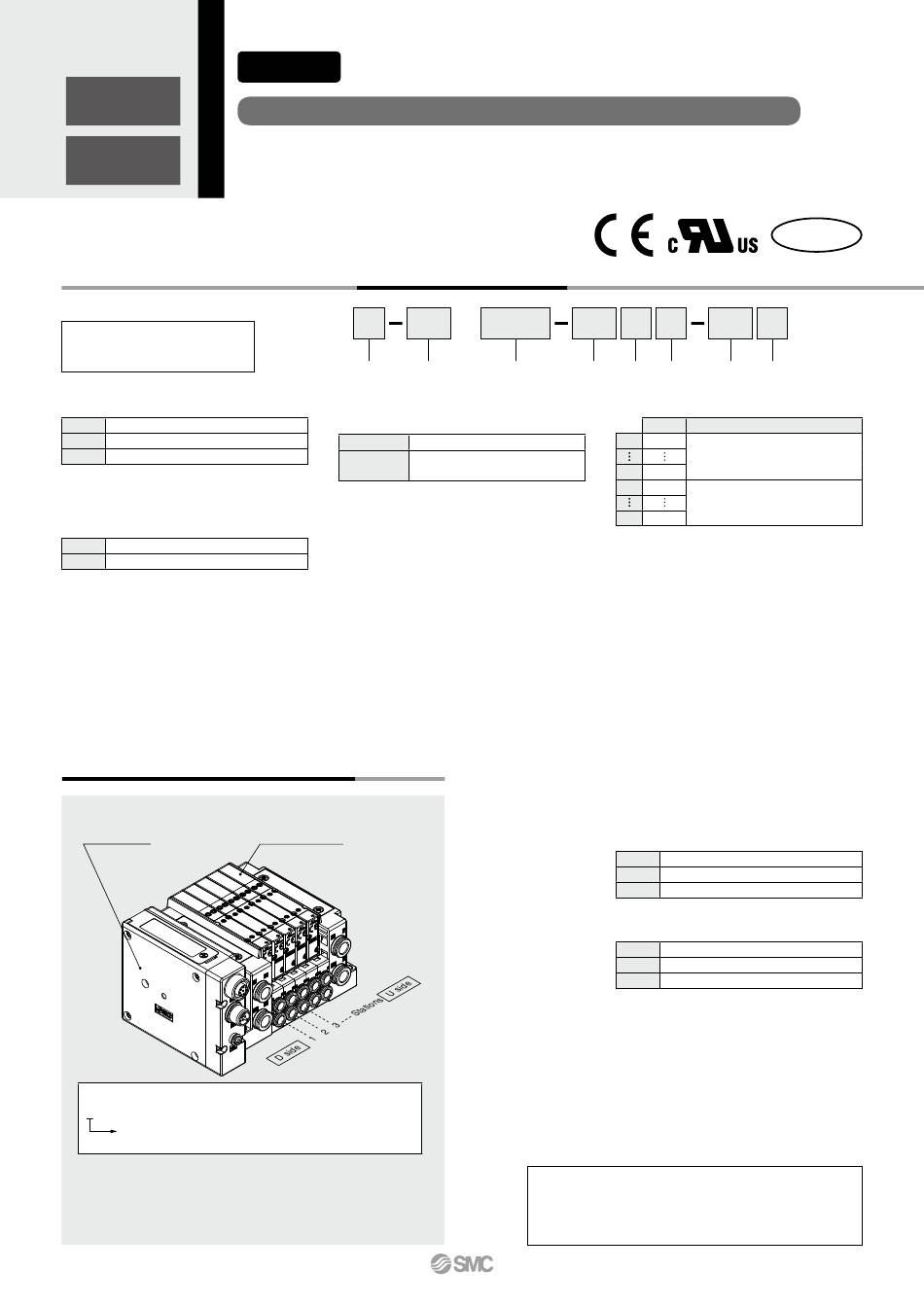

How to Order Manifold Assembly
Example
Manifold base
SS5Y3-10SA3N-05D-C6···1 set (Manifold base part number)
* SY3200-5U1···················5 sets (2-position double part number)
The asterisk denotes the symbol for the assembly.
Prefix it to the part numbers of the valve, etc.
•  F or the valve arrangement, the valve closest to the D side is considered
the 1st station.
•  U nder the manifold base part number, state the valves to be mounted
in order starting with the 1st station as shown in the figure above. If the
arrangement becomes too complicated, specify the details on a
manifold specification sheet.
97
Connector Connecting Base
Plug-in
EX500 Gateway Decentralized System 2 (128 Points)
How to Order Manifolds
SS5Y 3 10
q
e
SI unit (Number of outputs, Output polarity,
Max. number of valve stations)
0
A3N
*1 16 outputs can be set by switching the built-in
setting switch.
*2 Ensure a match with the common specification
of the valve.
*3 ( ): Maximum number of stations for mixed
*1
single and double wiring
*4 When using the SI unit with 32 outputs, use
the GW unit compatible with the EX500
Gateway Decentralized System 2 (128 points).
2-position double
S A3N 05
w e r
Without SI unit
*1*4
32 outputs , 2 to 16 stations (24
*3 *2
stations ), Negative common
* A separate GW unit and communication cable are required.
For details on the EX500 Gateway Type Serial Transmission
System, refer to the Web Catalog and the Operation Manual.
For the part numbers of the SI units to be mounted, refer to
page 188. Please download the Operation Manual via the
SMC website, https://www.smcworld.com
Series
®
RoHS
U C6
t y u i
r
Valve stations
Stations Note
02
2 stations
Double wiring
16
16 stations
02
2 stations
Specified layout
(Up to 32 solenoids available)
24
24 stations
*1 Double wiring: 2-position single, double,
3-position, and 4-position valves can be
used on all manifold stations.
Use of a 2-position single solenoid will
result in an unused control signal.
If this is not desired, order with a specified
layout.
*2 Specified layout: Indicate the wiring
specifications on the manifold specification
sheet. (Note that 2-position double,
3-position, and 4-position valves cannot be
used where single wiring has been
specified.)
* When the product without the SI unit (S0) is
selected, note the maximum number of
solenoids of the SI unit that will be mounted.
If the layout is specified, indicate it on the
manifold specification sheet.
* This also includes the number of the blanking
plate assembly.
t
P, E port entry
U
U side (2 to 10 stations)
D
D side (2 to 10 stations)
B
Both sides (2 to 24 stations)
y
SUP/EXH block assembly
Nil
Internal pilot
S
Internal pilot, Built-in silencer
R
External pilot
*1 3/5(E) port is plugged for the built-in
silencer type.
*2 When built-in silencer type is used, keep
the exhaust port from coming into direct
contact with water or other liquids.
CAT.ES11-103E 2022-6
*1
*2
*1*2
