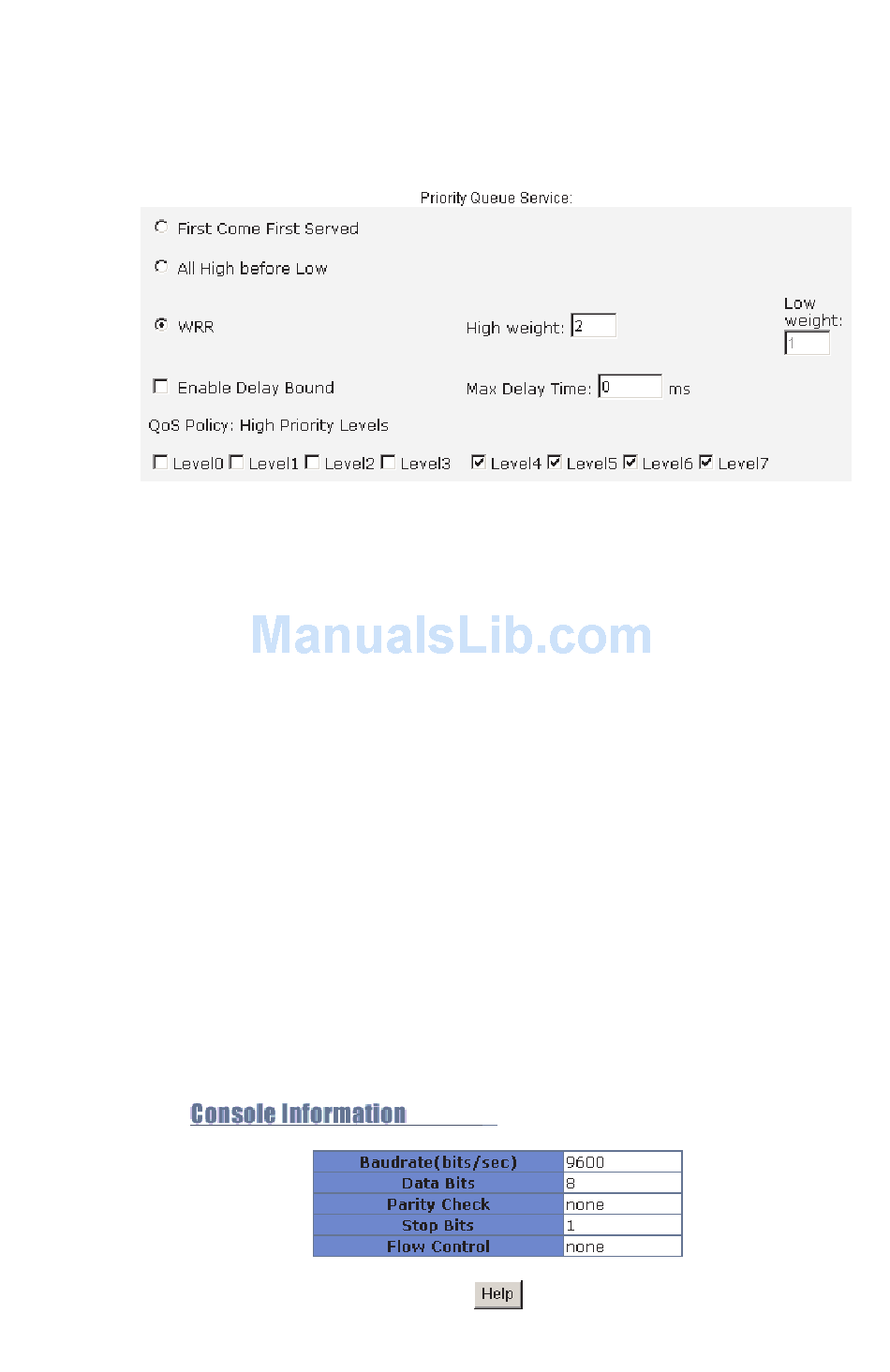

bound for low-priority packets if required, select the priority tags that will
be processed by the high-priority queue, and then click Apply.

Console Port Settings

If you have access to the Web interface, but are having problems
connecting to the console port, you can display the current connection
parameters via the Console Information page, and adjust the settings for
the PC or terminal connected to this port. See "Required Connections" on
page 2-2 for information on how to connect to the console port.
Field Attributes
• Baudrate – The console port's baud rate.
• Data Bits – Number of data bits per character.
• Parity Check – Shows if a parity bit is set to none, odd or even.
• Stop Bits – Number of the stop bits transmitted per byte.
• Flow Control – Shows if flow control is set to none or hardware.
Web – Click Administrator=>Console Port Info.
3-9
