Firmware and Configuration Settings

Downloading System Software from a Server

You can download firmware from a TFTP server.
Field Attributes
• TFTP Server IP Address – The IP address of a TFTP server.
• Destination File Name – The file name should not contain slashes
(\ or /), the leading letter of the file name should not be a period (.),
and the maximum length for file names is 25 characters.
(Valid characters: A-Z, a-z, 0-9, ".", "-", "_")

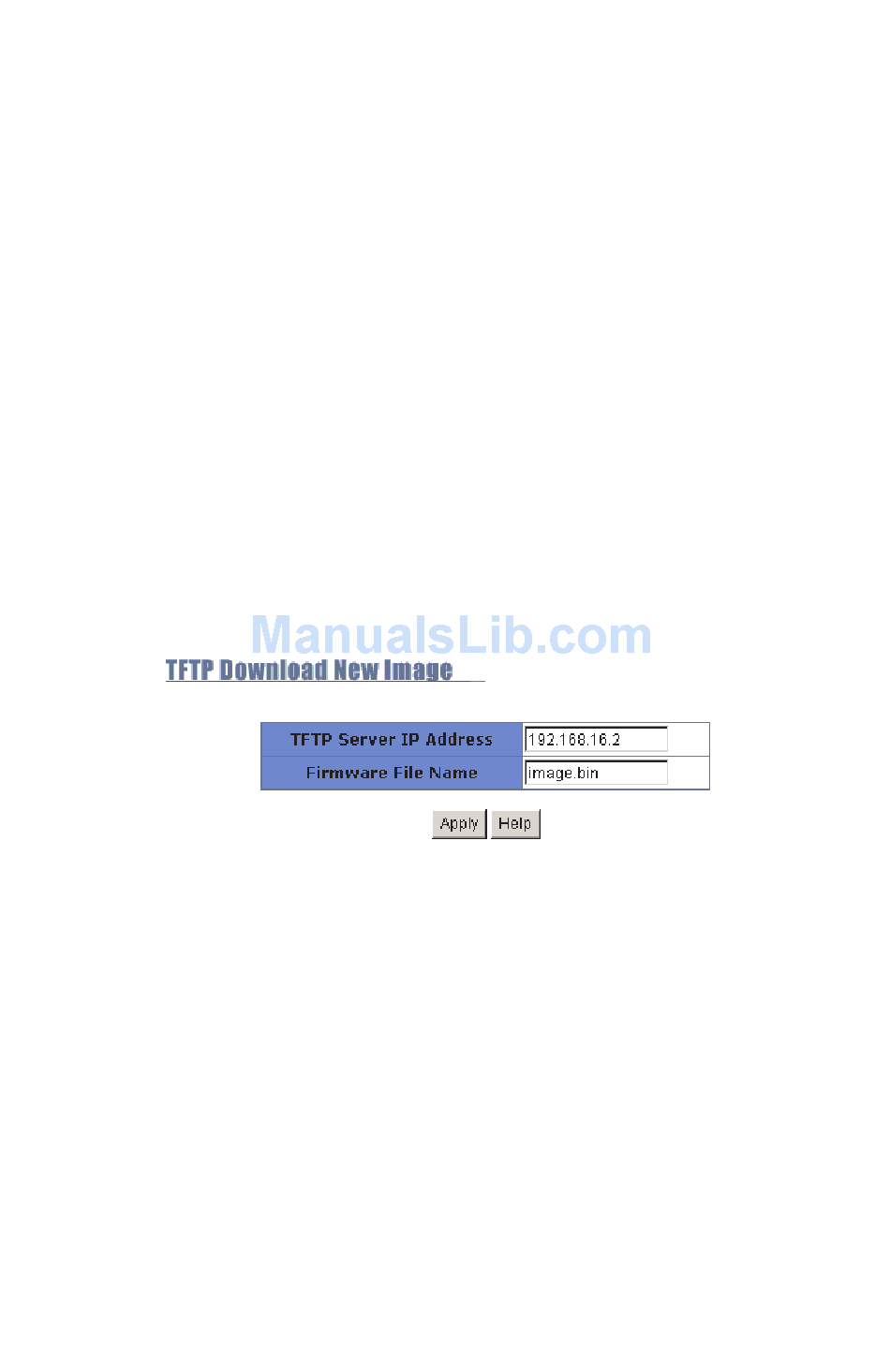

Web – Click TFTP Update Firmware. Enter the IP address of the TFTP
server, enter the file name of the software to download, then click Apply.
After downloading the image, click the Update Firmware button.
To start the new firmware, reboot the system.
